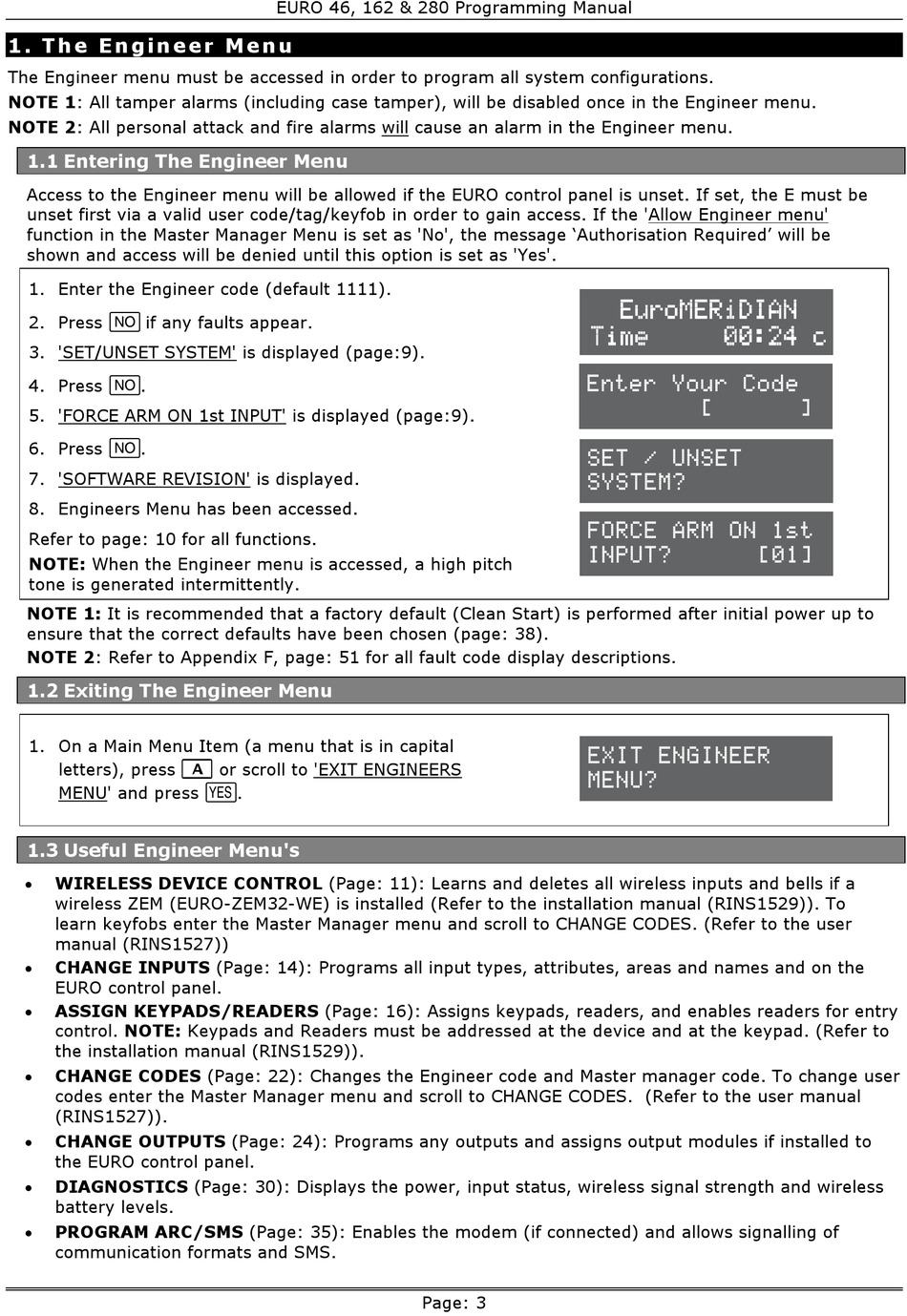

1 . T h e E n g i n e e r M e n u
The Engineer menu must be accessed in order to program all system configurations.
NOTE 1: All tamper alarms (including case tamper), will be disabled once in the Engineer menu.
NOTE 2: All personal attack and fire alarms will cause an alarm in the Engineer menu.

1.1 Entering The Engineer Menu

Access to the Engineer menu will be allowed if the EURO control panel is unset. If set, the E must be
unset first via a valid user code/tag/keyfob in order to gain access. If the 'Allow Engineer menu'
function in the Master Manager Menu is set as 'No', the message 'Authorisation Required' will be
shown and access will be denied until this option is set as 'Yes'.
1. Enter the Engineer code (default 1111).
2. Press if any faults appear.
3. 'SET/UNSET SYSTEM' is displayed (page:9).
4. Press .
5. 'FORCE ARM ON 1st INPUT' is displayed (page:9).
6. Press .
7. 'SOFTWARE REVISION' is displayed.
8. Engineers Menu has been accessed.
Refer to page: 10 for all functions.
NOTE: When the Engineer menu is accessed, a high pitch
tone is generated intermittently.
NOTE 1: It is recommended that a factory default (Clean Start) is performed after initial power up to
ensure that the correct defaults have been chosen (page: 38).
NOTE 2: Refer to Appendix F, page: 51 for all fault code display descriptions.

1.2 Exiting The Engineer Menu

1. On a Main Menu Item (a menu that is in capital
letters), press  or scroll to 'EXIT ENGINEERS
MENU' and press .

1.3 Useful Engineer Menu's

 WIRELESS DEVICE CONTROL (Page: 11): Learns and deletes all wireless inputs and bells if a
wireless ZEM (EURO-ZEM32-WE) is installed (Refer to the installation manual (RINS1529)). To
learn keyfobs enter the Master Manager menu and scroll to CHANGE CODES. (Refer to the user
manual (RINS1527))
 CHANGE INPUTS (Page: 14): Programs all input types, attributes, areas and names and on the
EURO control panel.
 ASSIGN KEYPADS/READERS (Page: 16): Assigns keypads, readers, and enables readers for entry
control. NOTE: Keypads and Readers must be addressed at the device and at the keypad. (Refer to
the installation manual (RINS1529)).
 CHANGE CODES (Page: 22): Changes the Engineer code and Master manager code. To change user
codes enter the Master Manager menu and scroll to CHANGE CODES. (Refer to the user manual
(RINS1527)).
 CHANGE OUTPUTS (Page: 24): Programs any outputs and assigns output modules if installed to
the EURO control panel.
 DIAGNOSTICS (Page: 30): Displays the power, input status, wireless signal strength and wireless
battery levels.
 PROGRAM ARC/SMS (Page: 35): Enables the modem (if connected) and allows signalling of
communication formats and SMS.
EURO 46, 162 & 280 Programming Manual
Page: 3
Enter Your Code
[
SET / UNSET
SYSTEM?
FORCE ARM ON 1st
INPUT? [01]
EXIT ENGINEER
MENU?
]
