3.5
NVIDIA Jetson Nano
3.5.1
Schematic View

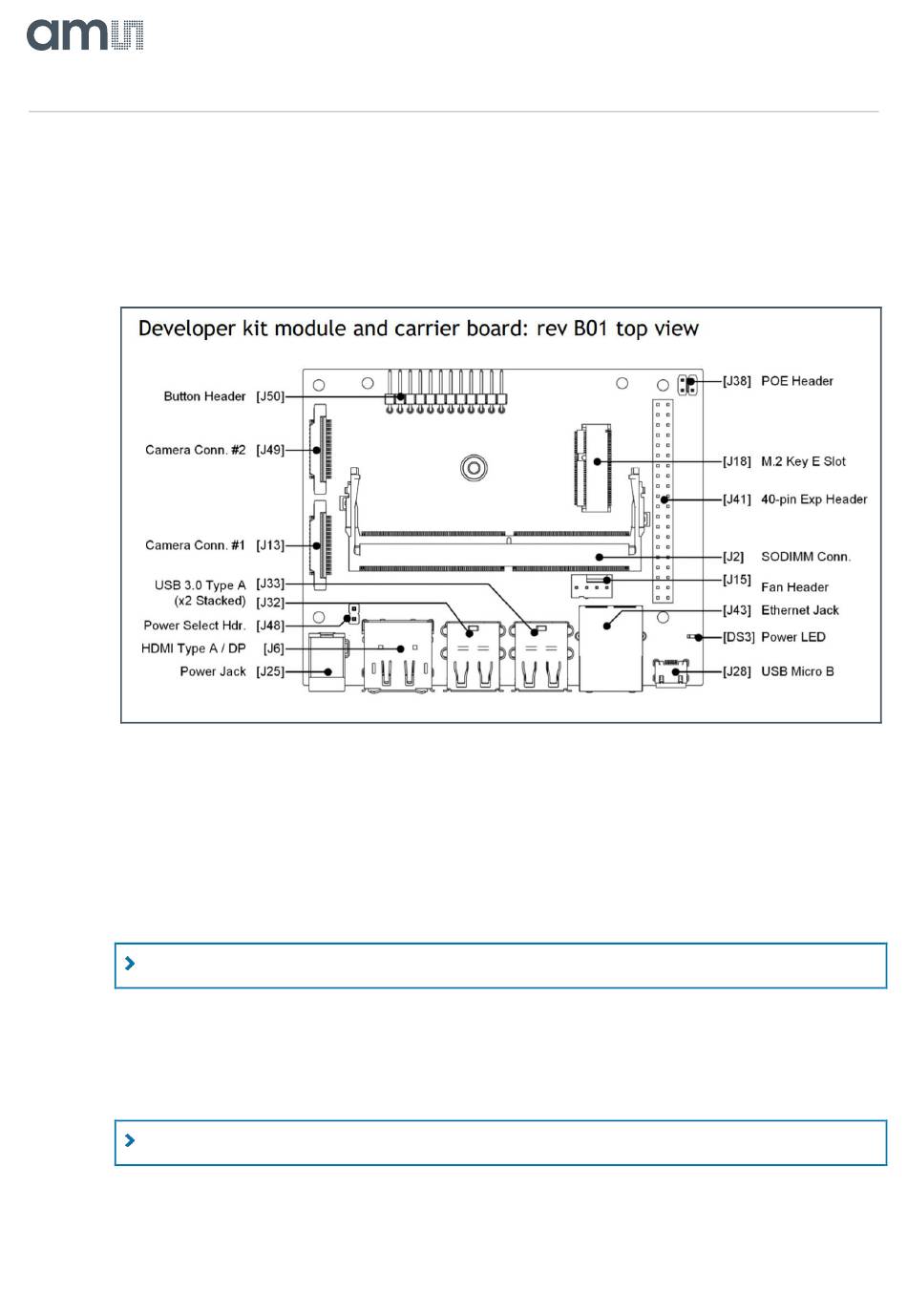

Figure 8:
Schematic Overview of the Jetson Nano Connections
3.5.2
Connecting the Hardware
Connecting the Jetson Nano to the sensor board is done by opening the connectors both on the
sensor board and on the Jetson Nano board. Make sure to insert the cable in the CAM0 port on the
right. Insert the flex cable as depicted on Figure 9.
The EVK does not include a keyboard, mouse and display. The user can use his own hardware
instead. The kit features a USB port and a mini USB port with an adapter. This way, two USB ports
are available, which can be used for keyboard and mouse. Next, there is an HDMI port available for a
display. For the internet connection, either Wi-Fi or Ethernet LAN is available.
Connect other hardware such as monitor, keyboard, mouse
Eval Kit Manual • PUBLIC
UG000473 • v2-01 • 2020-Aug-10
Document Feedback
Connect the Nano to the sensor board using the flex cable
JetCis_130
Hardware Description
│ 11
