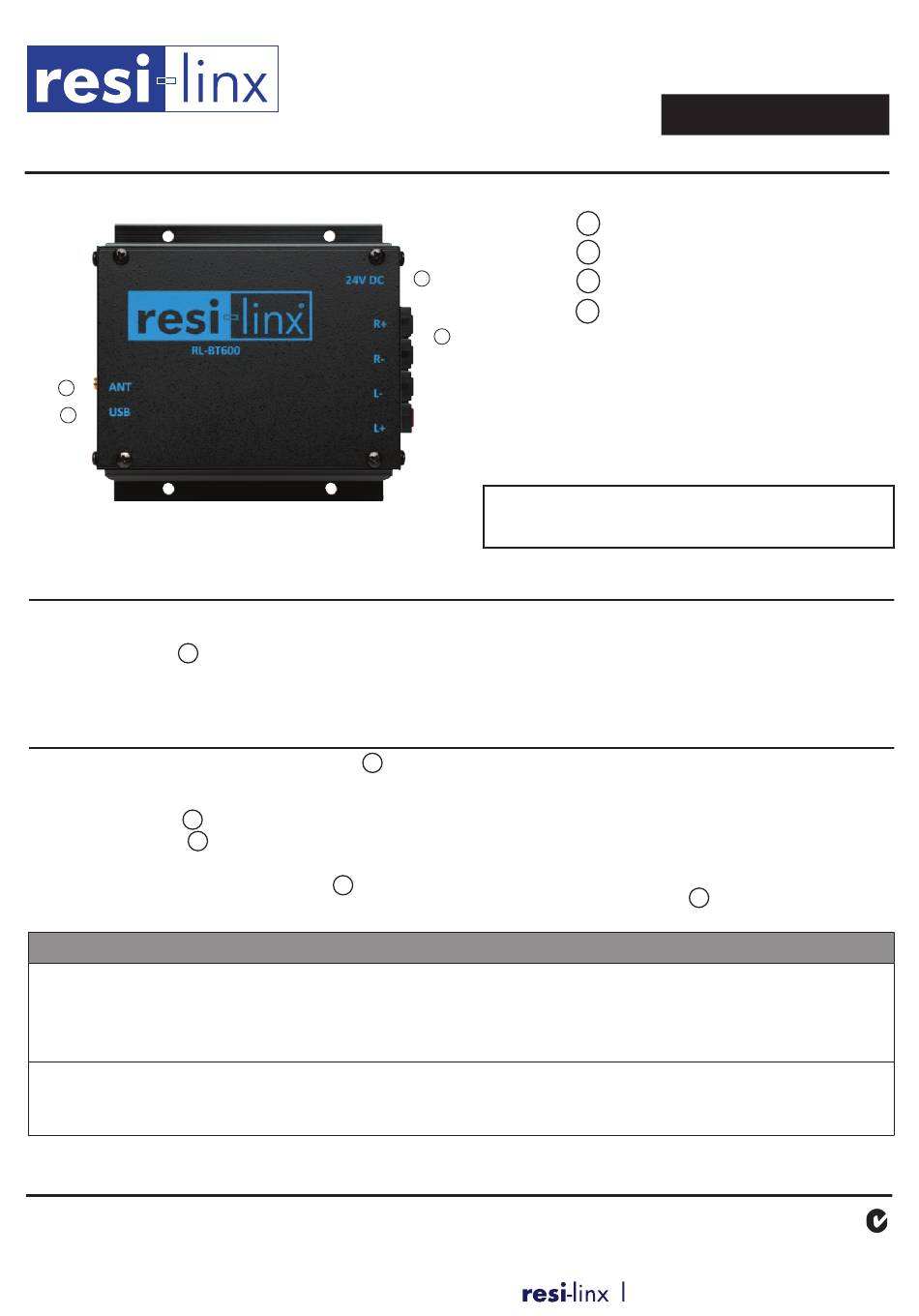

resi-linx Blue Series Installation Manual

www.resi-linx.com
INSTALLATION MANUAL
D
C
Cabling Instructions
Wiring:
1. Run low loss speaker cable from RL-BT600 Amplified
Speaker Terminals B to speakers
Hardware Connection
1. Connect speaker cable from Speaker Terminals B . For
optimum performance ensure that speaker polarity is kept
consistent:
- positive terminal of B to Red terminal on Left Speaker
- negative terminal of B to Black terminal on Left Speaker
- the same wiring must apply to the Right speaker connections.
2. Screw antenna supplied onto Antenna Input
Troubleshooting
My music is not coming out of the stereo speakers:
• Ensure the volume on your iPad, iPhone, iPod touch or other Bluetooth enabled device is set to a suitable level.
• Ensure all connections are correct and firmly connected to the RL-BT500.
• Ensure your iPad, iPhone, iPod touch or other Bluetooth enabled device is within the 10m* range of the Amplifier.
Music Suddenly Stops playing:
• Ensure your Bluetooth device is within the 10m* range of the Amplifier.
** The communication range quoted is calculated based on an unobstructed line of sight test under optimum conditions. Actual range will vary depending on conditions, and is often less than the maximum
possible. Your actual range will be limited by several factors including, but not limited to, electromagnetic interference and obstructions.
WARRANTY
Vcomm Pty Ltd states that the warrant that the customer can rely on is that provided by the manufacturer.
In the event of any warranty claim please contact us and we will forward it to the manufacturer. The
manufacturer will then determine the extent of their liability. This expressly negates, to the extent possible
by Australian law, any warranty reliance on Vcomm Pty Ltd. Warranty will be void if product/s are not
installed as per supplied instructions.
®
Blue Series "PROFESSIONAL"
A
B
D
Bluetooth In-Ceiling Amplifier
Power Input 24V DC
A
Speaker Terminals
B
Mini USB
C
Hi Gain Bluetooth Antenna
D
Includes:
RL-BT600 Bluetooth In-Ceiling Amplifier
Hi Gain Bluetooth Antenna
24V 3.75Amp Power Supply
This is a class A product. In a domestic environment this product
may cause radio interference in which case the user may be
required to take adequate measures
Cable Requirement:
Speaker - 12-24 AWG Low Loss Speaker Cable
Notes:
1. Recommended cables are run according to TS009
regulations to reduce interference
3. Place RL-BT600 in ceiling space within easy reach of access hole
if available.
Place active RL-BT500 speaker closest to the area where Bluetooth
reception is required
Power Connection
2. When cabling to all system components has been completed
and checked, plug power adapter (supplied) into mains and
plug DC jack into Power Input A on RL-BT600.
All trademarks and trade names are those of their respective owners. The Bluetooth
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any
Vcomm
RL-BT600
Vcomm Pty Ltd
ABN: 99091 281 524
use of such marks by Vcomm Pty Ltd is under license.
®
