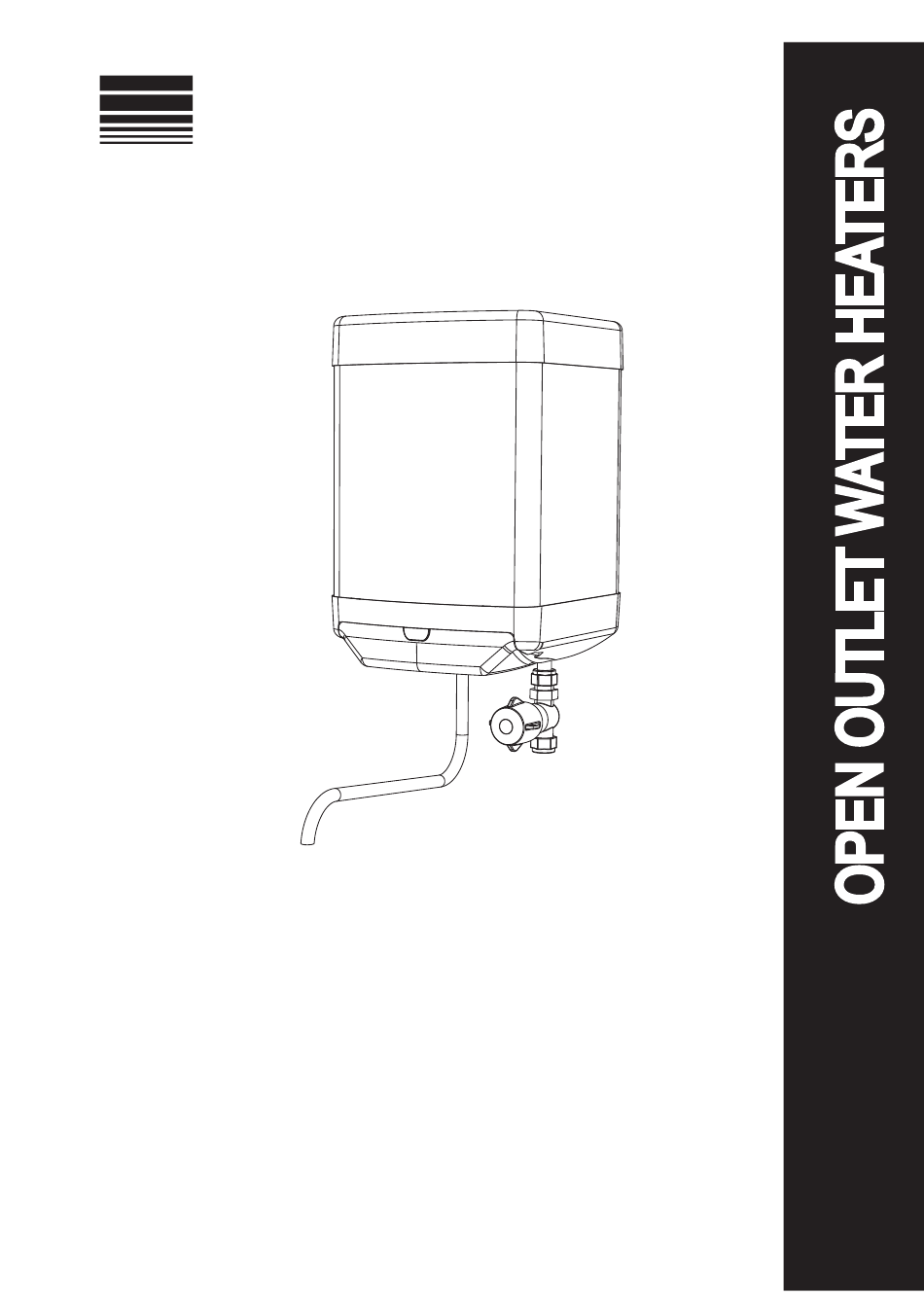

HEATSTORE
Installation and User Instructions
HS55/3/10N, HS55/3/7N, HS55/1/7N
Please read and understand these instructions before starting work.
Please leave this leaflet with the user following installation
PACK CONTENTS
Heater, Spout, Valve, Fixing screws and plugs, Installation and
User Instructions.
WARNING
This water heater must only be installed by qualified persons.
36005793_issue_07
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS55/3/10N and is the answer not in the manual?

Questions and answers

Related Manuals for Heatstore HS55/3/10N

Summary of Contents for Heatstore HS55/3/10N

  • Page 1 HEATSTORE Installation and User Instructions HS55/3/10N, HS55/3/7N, HS55/1/7N Please read and understand these instructions before starting work. Please leave this leaflet with the user following installation PACK CONTENTS Heater, Spout, Valve, Fixing screws and plugs, Installation and User Instructions. WARNING This water heater must only be installed by qualified persons.
  • Page 2 This water heater must be installed and commissioned by a competent person. Please read and understand these instructions prior to installing your water heater. Particular attention should be paid to section three headed INSTALLATION. Following installation the operation of the heater should be explained to the user and these instructions left with them for future reference.

  • Page 3: Installation

    3. The outlet of this water heater acts as a vent and must not be blocked or restricted in any way. 4. Only Heatstore open outlet taps and spouts should be used with this water heater. A full range is available, please consult either your distributor or Heatstore for further information.

  • Page 4: Wiring Regulations

    OPEN OUTLET TAP FITTING 1. Ensure electricity supply is switched off. 2. Remove terminal cover (using a flat bladed screwdriver to relieve snaps located towards the front of the terminal cover either side). 3.Plumb from the open outlet tap fitting using 15mm outside diameter copper pipe to the 15x15mm john guest fitting in the water heater.
  • Page 5 This is due to the expansion of water inside the heater and is normal for heaters of this type. It does not indicate that the valve/tap is faulty and overtightening of the valve/tap can result in damage. Name Heatstore Model HS55/3/7N HS55/1/7N HS55/3/10N Volume Litres Load Profile Energy Efficiency Class Energy Efficiency % 31.4 31.4 31.9...
  • Page 6 FIGURE 1: INTERNAL LAYOUT INLET CABLE CLAMP THERMOSTAT CONTROL OUTLET CAPILLARY STAT TERMINAL BLOCK DRAIN PLUG ELEMENT THERMAL CUT-OUT EARTH POST TERMINAL BLOCK BROWN RED WIRE MAINS SUPPLY BLUE BLACK WIRE GREEN/YELLOW GREEN/YELLOW WIRE DOUBLE POLE ISOLATING SWITCH THERMOSTAT ELEMENT FIG TWO: WIRING DIAGRAM 'AC' ONLY.

  • Page 7: Fault Finding

    FAULT FINDING SYMPTOM PROBABLE CAUSE ACTION No hot water 1. Check power Check and replace as necessary. 2. Faulty cut out 3. Faulty thermostat 4. Faulty element Water too hot 1. Thermostat set to wrong Adjust thermostat. /cold temperature 2. Faulty thermostat Switch off, check and replace.

  • Page 8: Spare Parts

    This guarantee in no way affects the statutory rights of the consumer. The policy of Heatstore is that of continuous improvement and development, therefore the right is reserved to change specification without notice.

This manual is also suitable for:

Hs55/3/7nHs55/1/7n
