Linn Uphorik Quick Start Manual

Uphorik Quickstart Guide
Thank you for purchasing the Linn Uphorik phono pre-amplifi er. This quickstart
guide provides basic unpacking and connecting info to get you started - full
instructions are available in the Uphorik Online Manual.
IMPORTANT:
This sheet contains guidance on unpacking and setting up your phono pre-
amplifi er. Please refer to the printed Safety Information booklet for important
safety information and the online manual for full instructions on using the Up-
horik phono pre-amplifi er.
Unpacking
• Remove product from packaging and place on a fl at surface
• Please retain all packaging for future transport of Uphorik
Contents
• 1 x Uphorik phono pre-amplifi er
• 1 x Mains cable
• 1 x pair of Linn Black interconnect cables
• 1 x Important Safety Info booklet
• 1 x foam protector
Positioning
• Place product on a fl at, stable and rigid surface
• Use the foam protector to protect the top of unit when changing cartridge
settings on underside of Uphorik
• Ensure the tonearm cable is not too close to mains, loudspeaker or inter-
connect cables
• Do not stack components and avoid placing near other heat sources
• Allow a little space all the way around the product for air circulation
Connecting
1. Before making any connections, switch off your power amplifi er(s).
2. Connect using your preferred connection type (Phono/RCA or Balanced/XLR)
for your cartridge type (Moving Magnet (MM) or Moving Coil (MC)).
3. Set the MM/MC Switch to the correct setting
4. Connect your mains cable and switch the unit on

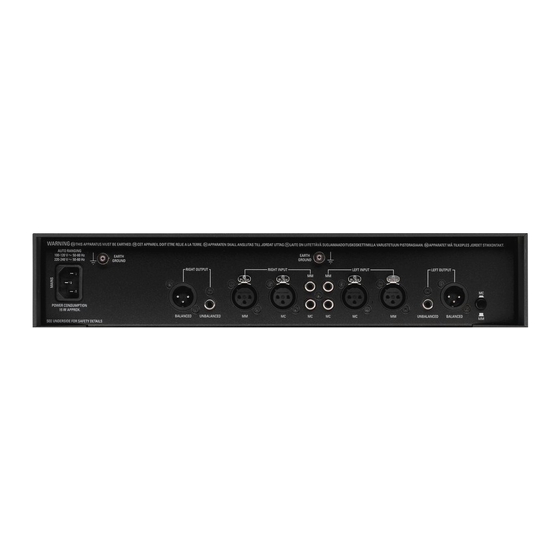

1
ON OFF
POWER
RIGHT OUTPUT
BALANCED UNBALANCED
2

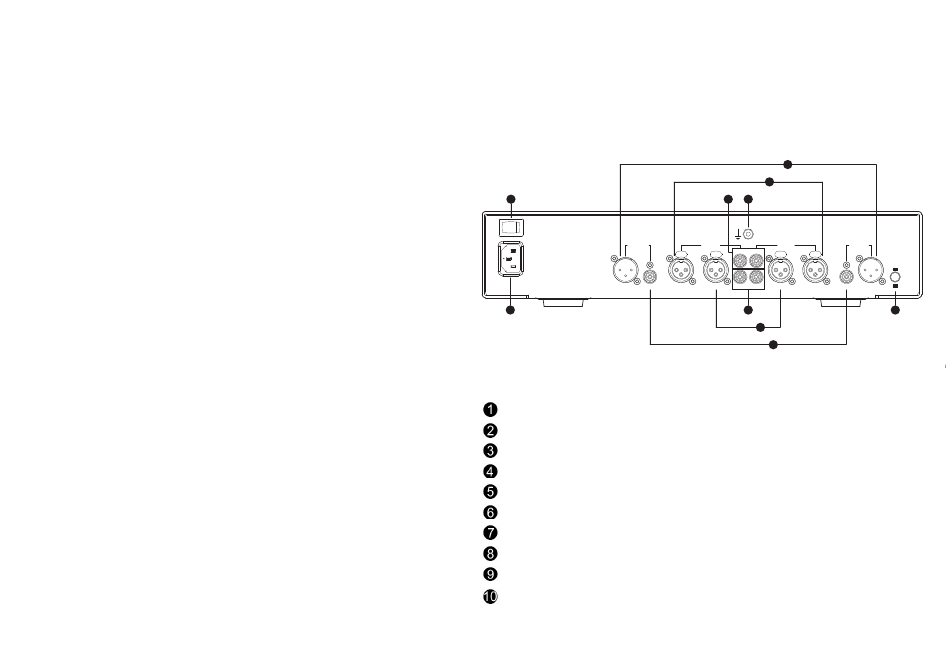

Power Switch - turn on and off
Mains Input - connect the mains cable
MM Input (L/R) - Phono/RCA
Earth Ground - connect to an earthing lead to improve earth bonding
MM Input (L/R) - Balanced/XLR
Balanced/XLR Output (L/R)
MC Input (L/R) - Phono/RCA
MC Input (L/R) - Balanced/XLR
Unbalanced/RCA Output (L/R)
MM/MC Switch - push in for MC; push out for MM
