Summary of Contents for Linn Powertek

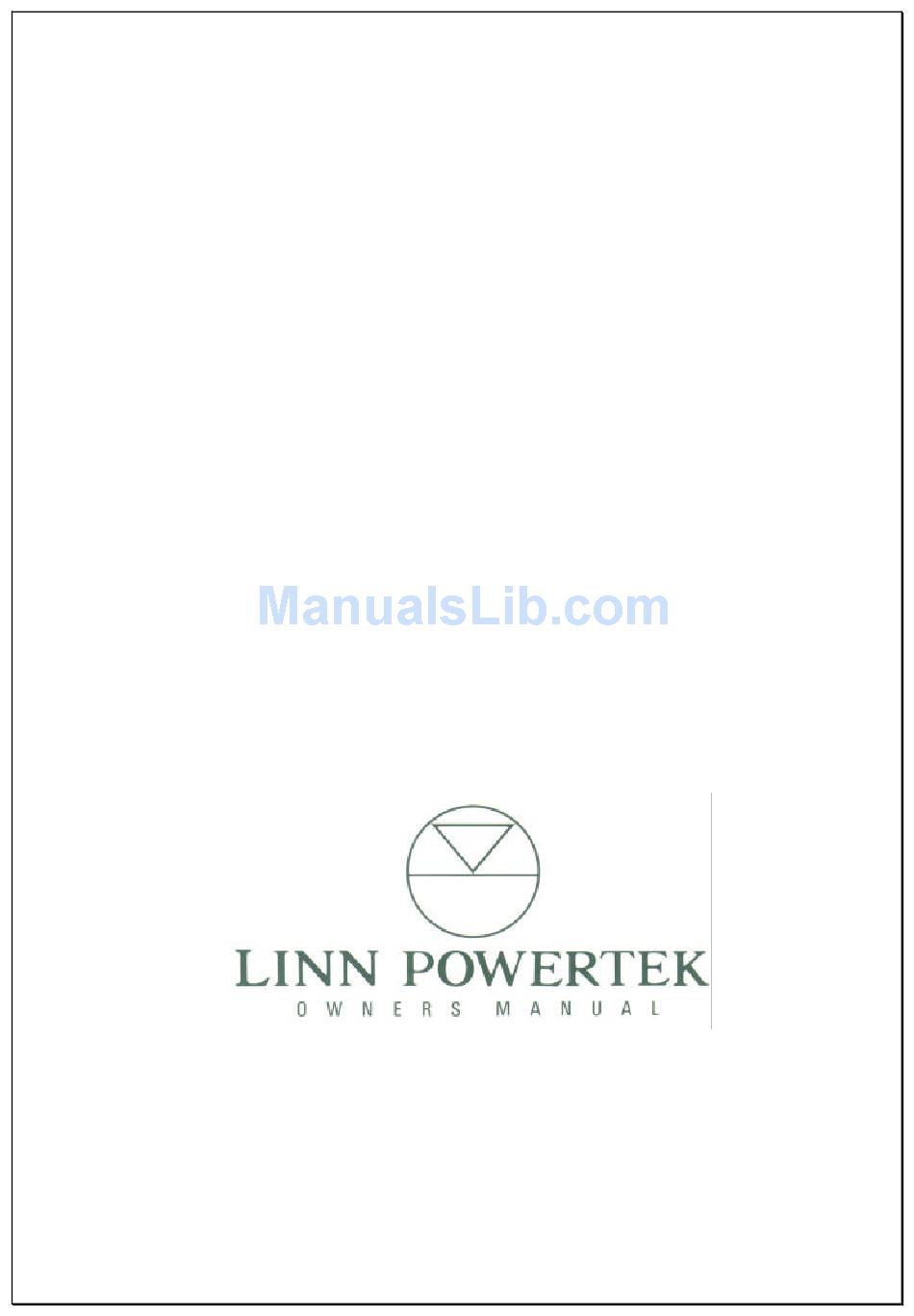

- Page 2 The POWERTEK is made with top quality components and is thoroughly tested before it leaves our factory. The POWERTEK is ideally suited for use with the Linn PRETEK or other high quality preamplifiers. Input/Output facilities are provided that allow convenient use of the POWERTEK in systems that require multiple power amplifiers.
-
Page 3: Mains Connections
CONTENTS POWERTEK power amplifier Owners manual and registration card Mains lead 2 x single phono-phono leads 4 x pairs KNEKT loudspeaker plugs Spare fuse MAINS CONNECTIONS WARNING – Use the earthed, moulded mains lead supplied. Never use an unearthed plug or adapter. -
Page 4: Input Connections
Two sets of RCA phono sockets are provided on the rear of the POWERTEK. These are labelled LINE INPUT and LINE OUTPUT and allow chaining the signal from one Powertek to another in multi- amplifier applications. - Page 5 SPEAKER INPUTS Two sets of speaker outputs are provided on the rear of the POWERTEK. This simplifies the bi-wiring of speakers such as the INDEX, HELIX, or NEXUS. Whether you are using single speaker cable, bi-wiring, or tri-wiring, the 4mm plugs supplied should be properly soldered to good quality cable.
- Page 6 70 degrees centigrade. To re-set, switch the POWERTEK off for a few minutes and then switch it back on. The amplifier will have re-set itself and will resume working normally.
-
Page 7: General System Installation
Your Linn Dealer can supply high quality interconnects for linking all your hi-fi components. MAINTENANCE FUSE PROTECTION A fuse is fitted to the power input socket on the rear of the POWERTEK. Please note that the fuse holder also contains one spare fuse. -
Page 8: Guarantee And Service
WARNING – Refer all enquiries to authorised dealers only. Unauthorised servicing or dismantling of the product invalidates the manufacturer's warranty. If you are in any doubt, please contact your nearest Linn dealer. For information on your nearest Linn dealer contact the Linn factory in Scotland or your national distributor. - Page 9 SPECIFICATIONS all sensitivities for 20 Vrms output at (50w per 8 ohms) at lKhz INPUTS lnput = 741mVrms / 4.7Kohms OUTPUTS Maximum power 50 watts/8 ohms per channel 80 watts/4 ohms per channel MAINS SUPPLY / FUSE 100V - T6.3A, 115V - T6.3A, 22OV - T3.15A, 24OV - T3.15A voltage set by factory fitted transformer option POWER CONSUMPTION 300 VA maximum, 15W idling...
