- Page 1 PULSAR PLUS Installation Guide...
-
Page 2: Table Of Contents
INDEX GETTING STARTED English Data Sheet Spanish Safety Instructions French Package Contents Before Installing Prepare the Charger for Installation Location Positioning INSTALLATION NEMA Plug-in Installation Existing NEMA Outlet NEMA Outlet Installation Placement Installing the Wallplate Mounting Hardwire Installation Determine Wiring Entry Placement Preparing you Charger Removing the NEMA 14-50P Cable... -
Page 3: Getting Started
GETTING STARTED Data Sheet General Specifications Model Pulsar Plus Cable length 25ft Color Matte Black Charging protocol SAE J1772 Dimensions 7.8” x 7.9” x 3.9” (without cable) Weight 4.4lbs (without cable) Operating temperature -22ºF to 104ºF Storage temperature -40ºF to 158ºF... -
Page 4: Safety Instructions
• This device should be supervised when using around children. • Do not put fingers into the electric vehicle connector. • Do not use your Wallbox charger if the flexible power cord or EV cable is frayed, has broken insulation, or any other signs of damage. - Page 5 Moving and Storage Instructions • Your Wallbox charger should never be lifted or carried by the power supply cord or by the EV cable. Always lift or carry your charger by lifting up the charger’s enclosure.
- Page 6 FCC Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 7: Package Contents
EV Charger EV Charger 208/240VAC, 60Hz, 32A Input/Output: EV Charger EV Charger 208/240VAC, 60Hz, 40A Save this label sheet for future use. Wallbox Pulsar Plus Holster Installation Guide Amperage Reduction with Charging Cable Labels Included Mounting Parts ø8 x 40mm Wall ø6 x 45mm... -
Page 8: Before Installing
GETTING STARTED Before Installing Pulsar Plus Before installing your charger, be sure to obtain any required permits and/or approvals in accordance with applicable codes, regulations, and ordinances for electrical installations. Prepare Charger for Installation Before getting started, carefully lift the charger... -
Page 9: Existing Nema Outlet
When installing a NEMA 14-50 outlet, be sure the Instructions for electricians to install a NEMA ground pin is facing down as shown in the diagram outlet to be used with a Wallbox charger. on the left. Important Recommendations 240V... -
Page 10: Placement
INSTALLATION NEMA Plug-in Installation Ensure the NEMA receptacle is correctly installed before connecting your charger. See instructions on Page 9. Placement Using a wall stud finder, find the wall stud Follow our recommendations nearest to the NEMA outlet. Mark a vertical line for location and positioning approximately 20”... -
Page 11: Mounting
INSTALLATION NEMA Plug-in Installation Drill two holes with an appropriate sized bit. Place the wallplate in alignment with the holes If you are mounting your charger on a solid wall, use the wall anchors provided with your charger Firmly mount the wallplate using the provided wall screws. -
Page 12: Hardwire Installation
INSTALLATION Hardwired Installation Installation of your Wallbox charger with a permanent power supply Determine wiring entry Bottom Rear Connection Connection Before hardwire installation, determine which entry port you will be using for your power supply wiring or conduit. Your charger can be connected from either the rear or bottom entry ports. -
Page 13: Removing The Nema 14-50P Cable
INSTALLATION Hardwired Installation Removing the NEMA 14-50P cable 40A NEMA Model only To disconnect the NEMA power cable wiring, unscrew the terminal screws as shown in the diagram on the left. Loosen the left cable gland in a counter- clockwise direction and pull down on the NEMA cable to release it from your charger. -
Page 14: Mounting The Charger
INSTALLATION Hardwired Installation Mounting the Charger Carefully remove your charger from the packaging box and hang it from the top of the wallplate. For rear wiring installation, feed the power supply wires through the rear port (and through the rubber grommet, if not using conduit) with enough length to easily connect the wires to the terminals Replace the two wallplate screws to secure... -
Page 15: Rated Current Adjustment
Rated Current Adjustment 40A-versions are set to Position 6 by default Both the 40A and 48A versions of Pulsar Plus 48A-versions are set to can be adjusted from 16A to the maximum rated Position 7 by default amperage of each model. If you are installing your... -
Page 16: Holster
INSTALLATION Holster Installing the Holster The holster is used to store your EV connector when not in use. You may place the holster Installation Height wherever it is most convenient, being sure that Outdoor: the location does not place any tension on the 18 - 48”... -
Page 17: Operating
If you have any difficulty connecting your charger to your myWallbox app, please refer to the “Help & Support” link on the app under your user profile. If you have trouble with the app, please go to support.wallbox.com... -
Page 18: Compatibility
Operating Compatibility This Wallbox charger can be used with any Battery or Plug-In Hybrid Electric Vehicle (BEV/PHEV) that is compliant with SAE J1772 (Including Teslas using the Tesla provided adapter) Charging With your charger powered, connect the EV connector to your vehicle’s charge port/input. -
Page 19: Service
Service Need more assistance? Contact Wallbox customer service: (888) 787-5780 support.wallbox.com service.na@wallbox.com www.wallbox.com service.na@wallbox.com... - Page 20 V-1.0...
Need help?
Do you have a question about the PULSAR PLUS and is the answer not in the manual?
Questions and answers

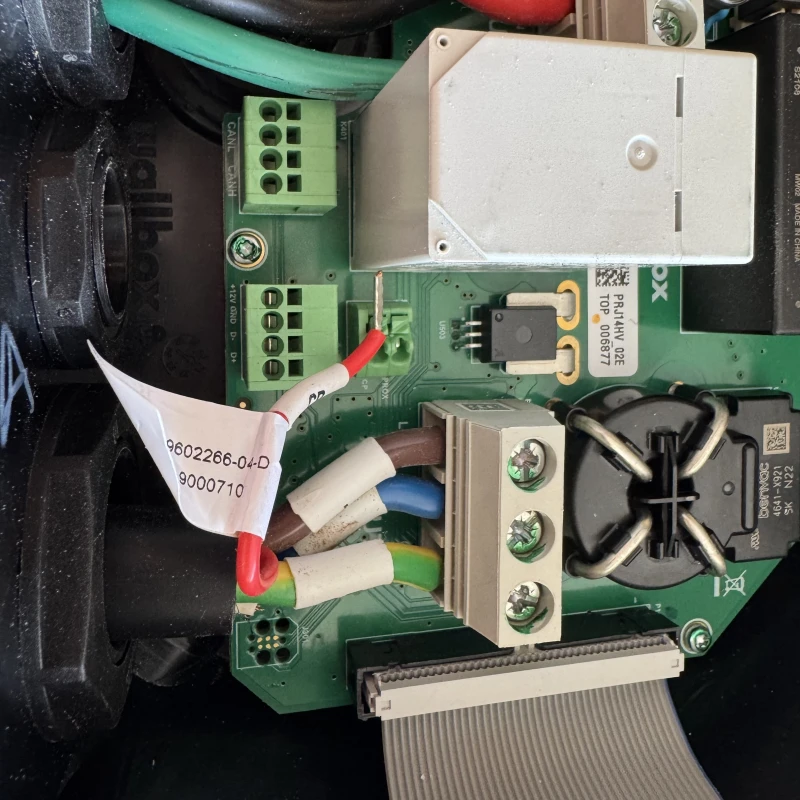

Red wire on holster cable goes to which terminal inside the wallbox
