Summary of Contents for Heatmiser Touch Series
- Page 1 Model: Touch Carbon...
-

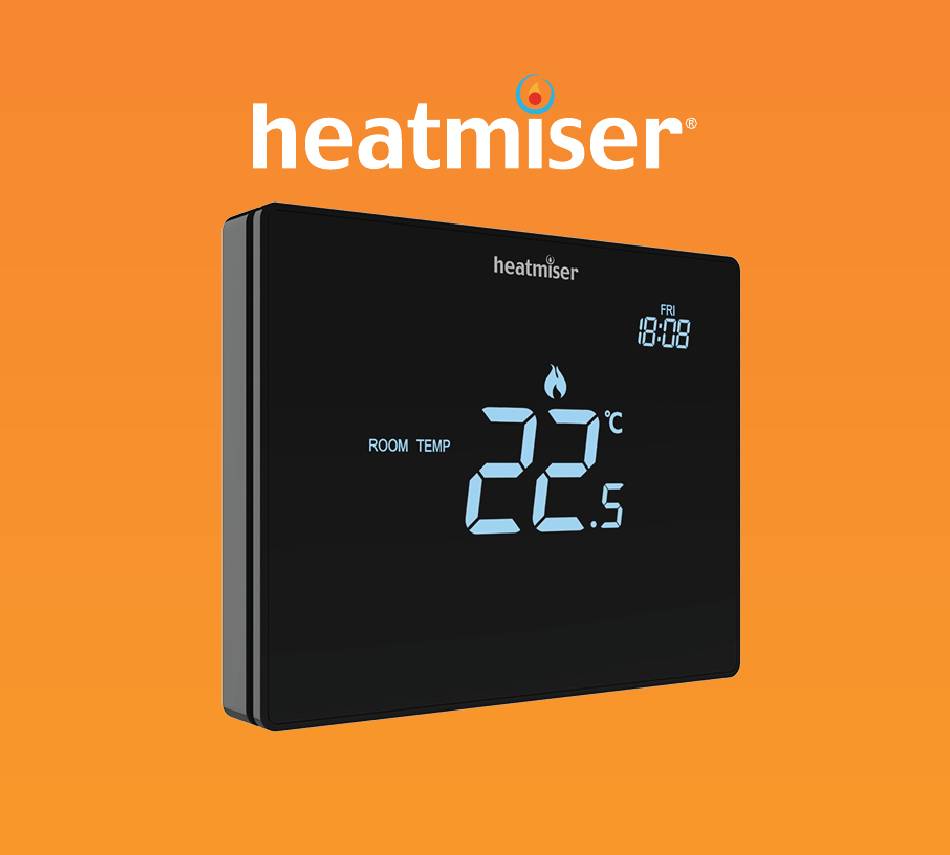

Page 2: Product Image
Model: Touch Carbon Touch Series... -
Page 3: Table Of Contents
Table of Contents Product Image Frost Protection Table of Contents Locking/Unlocking the Touch V2 What is a Programmable Holiday Room Thermostat? Optional Settings Explained 26-27 Installation Procedure Optional Settings - Feature Table Mode Select Adjusting the Optional Settings Mode 1 - Thermostat Fail Safe/Modbus 9-10 Recalibrating the Touch V2... -
Page 4: What Is A Programmable Room Thermostat
Similarly reducing the temperature setting does not a ect how quickly the room cools down. Setting a programmable room thermostat to a lower temp rature will result in the room being controlled at a lower temperature, and saves energy. Touch Series... - Page 5 The way to set and use your programmable room thermostat is to nd the lowest temperature settings that you are comfortable with at the di erent times you have chosen, and then leave it alone to do its job. The best way to do this is to set the room thermostat to a low temperature –...
-
Page 6: Installation Procedure
Step 4 Replace the front of the thermostat onto the back plate, by locating the pins in the socket then insert the top edge rst. Now push in the bottom edge, securing it in place with the retaining screw. Touch Series... - Page 7 Model: Touch Carbon...
-
Page 8: Mode Select
The Touch Carbon will reset all parameters and restart in the selected mode. Note: The Mode Select function will reset all parameters (Wireless Air Sensors and Window/Door Contacts excluded) that were entered during the set-up operations. These processes must be repeated after the restart has completed. Touch Series... -
Page 9: Mode 1 - Thermostat
Mode 1 - Thermostat Model: Touch Carbon... - Page 10 1 2 3 Touch Series...
-
Page 11: Lcd Display
LCD Display 1. Holiday – Displayed when the thermostat is in holiday mode. 2. Frost Protection – Displayed when frost protection is enabled or activated by a Window/Door Switch. 3. Flame Symbol – Displayed when the thermostat is calling for heat and ashes when optimum start is active. -
Page 12: Power On/Off
3 seconds until the display goes blank ................The display and heating output will be turned OFF. • To turn the Thermostat back ON, press the key ............Thermostat completely OFF Thermostat powered ON 9 1 1 Touch Series... -
Page 13: Approach Sensor
Approach Sensor The Touch Carbon uses proximity to detect when you are about to use the touch keys. As you approach the Thermostat, the touch keys and backlight will light up. This can be useful if you need to adjust the set temp or timer in a dark room. Setting the Time and Date To set the clock, follow these steps. -
Page 14: Temperature Display
When the Touch Carbon is set to use both the air & the oor sensor, the room temperature will be displayed by default. • To view the current oor temperature, press the FLOOR key......The oor temperature will be displayed for 10 seconds. Touch Series... -
Page 15: Pairing Accessories
Pairing Accessories Wireless Air Sensor. Door/Window - Wireless Contact Sensor (Not available in Time Clock mode). You can pair a total of 16 accessories to a single Touch Carbon thermostat. Wireless Air Sensor Once a remote sensor is added, the Touch Carbon will automatically display an average temperature between the ‘Wireless Air Sensor’... - Page 16 If the sensor has successfully paired, the LED will go out after a few seconds. The thermostat display will then show ‘01:P’ to indicate that the rst accessory has joined. If countdown time elapses before all accessories have been paired, restart the countdown to add further sensors following the previous steps. Touch Series...
-
Page 17: View Accessories
View Accessories Press and hold the key for 3 seconds to turn o the display ......• Press the ‘Setup’ key......................• Press ‘Down’ key until you see the letter ‘A’ displayed at the top of the screen then press ‘NEXT’ ....................... Current Status Accessory ID Number Low Battery Warning... -
Page 18: Removing Accessories
• Press the ‘Up/Down’ arrow keys to view the accessory that will be deleted..• Press and hold down the ‘DONE’ button for 10 seconds until the sensor disappears from the menu ......................Note: You will also need to reset the sensor at this point. Touch Series... -
Page 19: Edit Comfort Levels
Edit Comfort Levels This thermostat o ers three program mode options; Weekday/Weekend, 7 Day and 24 Hour programming. There is also the option to use the Touch Carbon as a manual thermostat. Touch Carbon is supplied with comfort levels already factory programmed, but these can be changed easily. - Page 20 For any unused periods set time to --:--. • Press ‘DONE’ to con rm and save the settings ............You are able to program up to a maximum of 6 levels. Enable this in the feature menu. Program Type = 01 (see pages 26-29). Touch Series...
-
Page 21: Temperature Control
Temperature Control • The ‘Up/Down’ keys allow you to adjust the set temperature ....... When you press either key, you will see the words ‘SET TEMP ’ and the desired temperature value. • Press ‘DONE’ to con rm temperature setting and return to the main display.. Until next programmed ‘Comfort Level’... -
Page 22: Temperature Hold
• Press ‘CANCEL’ to cancel the Hold and return to normal operation ....• Alternatively, press the ‘EDIT’ key to adjust current ‘Hold’ settings ..... To edit ‘Hold’ settings follow the same procedure as indicated in the steps at the top of this page. Touch Series... -
Page 23: Advance
Advance This feature allows the next ‘Comfort Level’ setting to be brought forward and become active before its pre-programmed time. Note: Multiple advances aren’t allowed. To enable ‘Advance’ • Press the ‘ADVANCE’ key once..................‘ADVANCED UNTIL’ time and the ‘SET’ temperature will now be displayed. •... -
Page 24: Frost Protection
‘ON’ should the room temperature drop below the set frost temperature. If the heating is turned ‘ON’ whilst in frost mode, the ame symbol will be displayed. To cancel the frost protect mode, press the key again ........... Frost Protection Symbol Touch Series... - Page 25 Locking the Display The Touch Carbon has a keypad lock facility. To activate the lock follow these steps. • Press and hold the ‘HOLD’ key for 3 seconds............The display will show 0000. At this point enter a four digit pin number. •...
-
Page 26: Holiday
• Press ‘DONE’ to con rm....................The display will now show and indicate ‘Frost Protection Active’ • To view or change the ‘Set’ frost temperature while in ‘Holiday’ mode, press the ‘Up/Down’ keys followed by ‘DONE’ to con rm ........Touch Series... -
Page 27: Optional Settings Explained
Optional Settings Explained THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES NEED NOT BE ADJUSTED. Viewing Accessories: Current status of each accessory, remote sensors and window switches. Pairing Accessories: to a wireless room sensor or window switch. Temperature Format: This function allows you to select between °C and °F. Switching Di erential: This function allows you to increase the switching di erential of the thermostat. - Page 28 Modbus protocol. Program Type: You can select between 4 or 6 program heating levels. Back-light Dimming: When no interaction is present the LCD brightness will lower. Dimming level can be changed between 'Medium' or 'Low' to suit the environment. Touch Series...
-
Page 29: Optional Settings - Feature Table
Optional Settings - Feature Table FEATURE DESCRIPTION SETTING Viewing Accessory Information only Pairing Accessories Commences countdown from 99 – 00 seconds. Temperature Format 00 = °C, 01 = °F (00 = Default) Menu Entry Point Switching Di erential 00 = 0.5°C, 01 = 1.0°C (Default) 02 = 2.0°C, 03 = 3.0°C Output Delay 00 - 15 Minutes (00 = Default) Up/Down Temperature Limit... -
Page 30: Adjusting The Optional Settings
• Use the ‘Up/Down’ keys in the centre to change feature setting....• When all required changes have been made press ‘DONE’ to con rm and return to the blank display ................... • Press the key once ....................Touch Series... -
Page 31: Fail Safe/Modbus
Fail Safe If the thermostats on board sensor is disabled and is reliant on a single wireless remote sensor for temperature measurement, failsafe will activate if connection is lost. • From the moment ‘E2’ is displayed on screen, failsafe will become active. •... -
Page 32: Recalibrating The Touch V2
The remote FLOOR probe is faulty. E2 = The WIRELESS AIR SENSOR has not been paired correctly. The WIRELESS AIR SENSOR has lost connection to the Touch Carbon (check batteries). The remote WIRELESS AIR SENSOR is faulty. Touch Series Touch Series... -
Page 33: Wiring Diagrams
Wiring Diagram - Touch Carbon Switch Live Output Model: Touch Carbon MODBUS INTERFACE 230VAC Floor Sensor A2 A1 230V SUPPLY IN LIVE NEUTRAL SWITCHED LIVE TO BOILER This product must only be installed by a quali ed electrician and comply with local installation regulations. Model: Touch Carbon... - Page 34 Sensor A2 A1 230V SUPPLY IN VOLT FREE TO BOILER LIVE LS & LR ARE NORMALLY THE ROOM THERMOSTAT CONNECTIONS NEUTRAL This product must only be installed by a quali ed electrician and comply with local installation regulations. Touch Series...
- Page 35 Wiring Diagram - Touch Carbon to Valve Model: Touch Carbon MODBUS INTERFACE 230VAC Floor Sensor A2 A1 TO CONNECT BOILER CONSULT BOILER MANUFACTURERS DIAGRAM LIVE 230V SUPPLY IN NEUTRAL TO BOILER NEUTRAL LS & LR ARE NORMALLY THE HEATING VALVE ROOM THERMOSTAT CONNECTIONS This product must only be installed by a quali ed electrician and comply with local installation regulations.
- Page 36 Wiring Diagram - Touch Carbon Switch Live to UH8 Model: Touch Carbon 230VAC MODBUS INTERFACE Floor Sensor A2 A1 FLOOR PROBE This product must only be installed by a quali ed electrician and comply with local installation regulations. Touch Series...
-
Page 37: Mode 2 - Time Clock
Mode 2 - Time Clock Time clock can be used to control various devices in and around your home e.g. ‘Hot Water’ , ‘Towel Rails’ or even ‘Lighting’ . Refer to the manufacturers instructions for wiring to these devices. Model: Touch Carbon... - Page 38 Touch Series...
-
Page 39: Lcd Display
LCD Display 1. Holiday – Displayed when the time clock is in holiday mode. 2. Advanced Until - Displayed when the time clock is advanced to the next programmed comfort level. 3. Day Indicator – Displays the day of the week. 4. -
Page 40: Setting The Switching Times
‘LEAVE’ will now ash and the ON time will be displayed. Repeat the steps above to set all switching time levels. For any unused periods set time to --:-- • Press ‘DONE’ to con rm and save the settings .............. Touch Series... -
Page 41: Timer Advance
Timer Advance This feature allows the next ’Switching time level’ setting to be brought forward and become active before its pre-programmed time. Note: Multiple advances aren’t allowed. To enable ‘Advance’ • Press the ‘ADVANCE’ key once ..................The ‘ADVANCED UNTIL’ time and the output status will now be displayed. •... -
Page 42: Timer Override/Countdown Mode
• Use the ‘Up/Down’ keys to set the desired ‘Hold’ time (Minutes) ........ • Press ‘DONE’ to con rm selection ................... You will see the ‘HOLD LEFT’ indication is displayed on screen. To cancel Countdown. • Press ‘HOLD’ then press ‘CANCEL’ ................... Touch Series... -
Page 43: Optional Settings Explained
Optional Settings Explained Programming Mode: The following program modes are available; 5/2 Day Programming - 4 On/O switching times for the weekdays and 4 On/O switching times for the weekend. 7 Day Programming - 4 individual On/O switching times for each day. 24 Hours- 4 On/O switching times over a 24 hour period. -
Page 44: Adjusting The Optional Settings
Use the ‘Up/Down’ keys in the centre to change feature setting ... • When all required changes have been made press ‘DONE’ to con rm and return to the blank display ................• Press the key once ..................... Touch Series... -
Page 45: Replacing The Battery
Replacing the Battery In most cases the 3 volt lithium battery does not need replacing if the thermostat has a continual power supply. Its sole purpose is to ensure correct time keeping during a power loss to the thermostat. To remove the battery use a small at head screw driver or ngertip to push back the brass retaining bracket. - Page 46 Notes ....................................................................................................................................................................................................................................................................................................................................................................................................................Touch Series...
- Page 47 Notes ....................................................................................................................................................................................................................................................................................................................................................................................................................Model: Touch Carbon...
- Page 48 Want More Information? Call our support team on: +44 (0)1254 669090 Or view technical speci cations directly on our website: www.heatmiser.com Heatmiser UK Ltd 1 - 5 Hurstwood Court, Mercer Way, Shadsworth Business Park, Blackburn, Lancashire. BB1 2QU, England Twitter: @heatmiseruk Facebook: facebook.com/thermostats...
