Configuration And Installation; Configuring Your 6810 Device; Alternate Low-Voltage Power Switch; Figure 2-1. Pci/Pxi-6810 Configurable Switch - National Instruments PCI-6810 Getting Started

Configuration and
Installation

Configuring Your 6810 Device

Alternate Low-Voltage Power Switch

PCI-6810
Daughter Card
© National Instruments Corporation
This chapter explains how to configure and install the 6810 hardware
and software, and how to use the 6810 soft front panel.
For most applications, the 6810 hardware is factory-configured for
proper operation. You control and set up the 6810 features through the

soft front panel.

By default, the hardware supplies its own internal 5 V power to these
transceivers. The only user-selectable option on the 6810 hardware is a
switch that supplies power to the eight general-purpose DIO signals
from an external power source. See Figures 2-1 and 2-2 for the switch
location and proper settings.
Configurable
Switch
PCI-6810
Mother Board

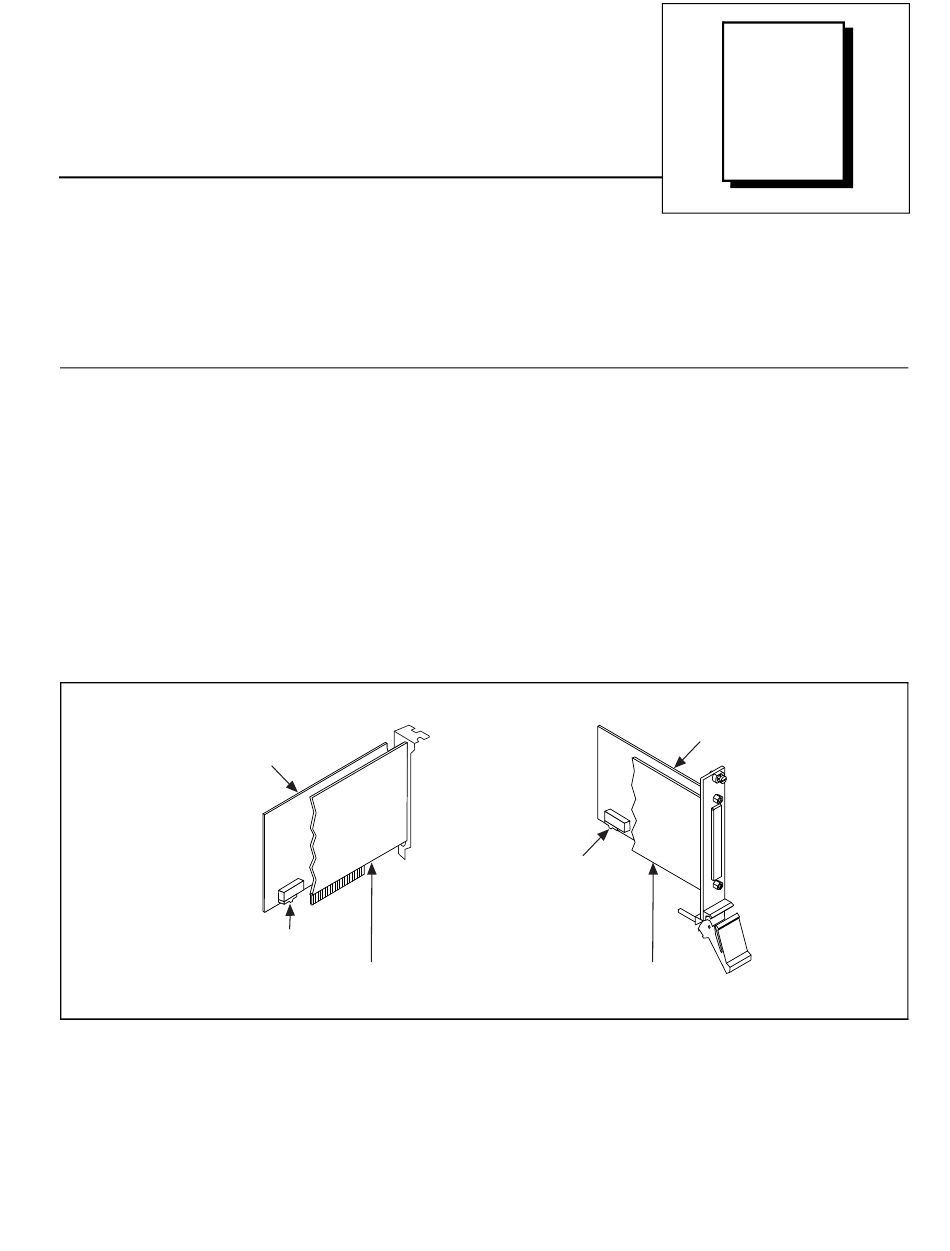

Figure 2-1. PCI/PXI-6810 Configurable Switch

Daughter Card
Configurable
Switch
PXI-6810
Mother Board
2-1 Getting Started with Your PCI/PXI-6810 SDA
Chapter
2
PXI-6810
