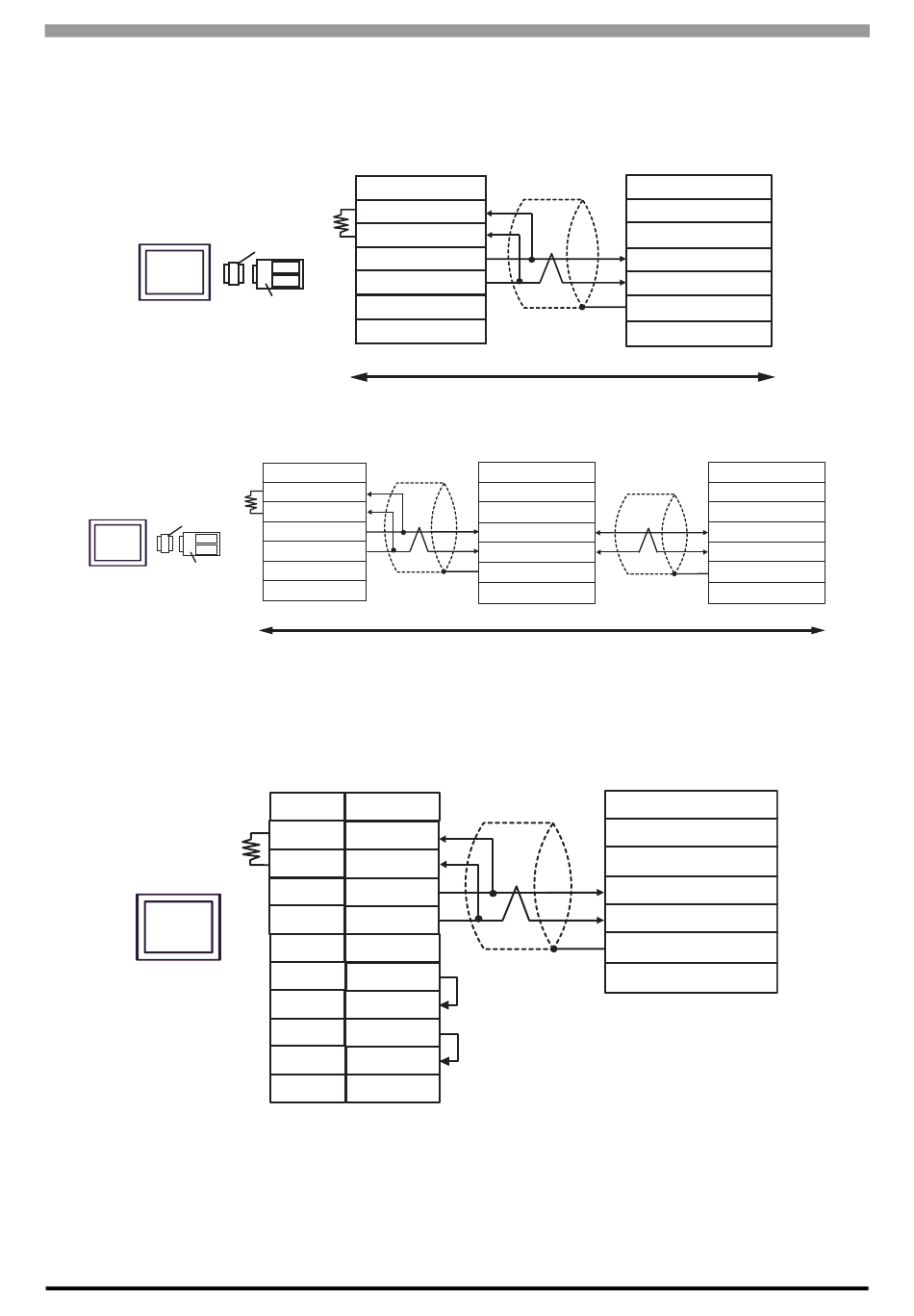

A. When using the COM port conversion adapter (CA3-ADPCOM-01), the terminal block conversion adapter
(CA3-ADPTRM-01) by Pro-face and your own cable
• 1:1 Connection
Display
CA3-ADPCOM-01
• 1:n Connection
Terminal
resistance
Ω
220
Display
CA3-ADPCOM-01
CA3-ADPTRM-01
B. When your own cable is used
• 1:1 Connection
Termination
resistance
220 Ω (1/4W)
Display
GP-Pro EX Device/PLC Connection Manual
Terminal
resistance
Signal name
Ω
220 (1/4W)
CA3-ADPTRM-01
Signal name
(1/4W)
RDA
RDB
SDA
SDB
SG
FG
D-Sub 9 pin (socket)
Pin Signal name
1 RDA
RDB
2
SDA
3
SDB
7
5
SG
4 ERA
8 CSA
9 ERB
6 CSB
FG
Shell
Shield
RDA
RDB
SDA
SDB
SG
FG
Your own cable
External Device
Terminal block
Signal name
Shield
L3
L4
L1
L2
Shield
FG
SW7: OFF
Your own cable
Shield
55
JW Series Computer Link SIO Driver
External Device
Terminal block
Signal name
L3
L4
L1
L2
Shield
FG
SW7: ON
External Device
Terminal block
Signal name
Shield
L3
L4
L1
L2
Shield
FG
SW7: ON
External Device
Terminal block
Signal name
L3
L4
L1
L2
Shield
FG
SW7: ON
