Technical Literature

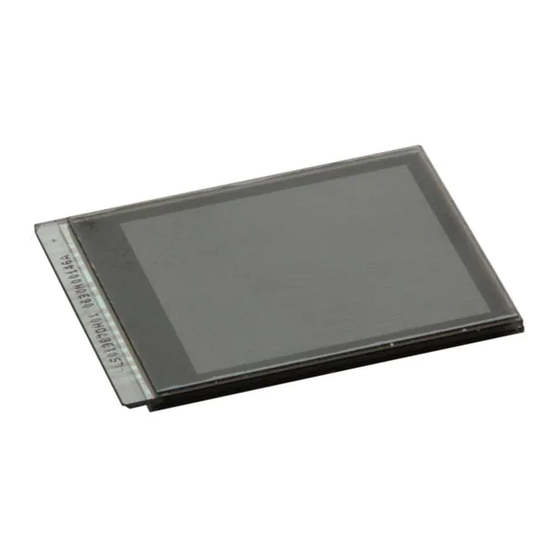

TFT-LCD Module
Model No. LS013B7DH01
The technical Literature is subject to change without any
prior notice for the purpose of product improvement.
Please contact Sharp or its representative before designing
your product based on this literature.
Liquid Crystal Display Group
SHARP CORPORATION
For
Notice
LCP-2110019B
No.
16th Aug 2010
Date

Advertisement

Table of Contents
loading

Related Manuals for Sharp LS013B7DH01

Summary of Contents for Sharp LS013B7DH01

  • Page 1 Model No. LS013B7DH01 Notice The technical Literature is subject to change without any prior notice for the purpose of product improvement. Please contact Sharp or its representative before designing your product based on this literature. Liquid Crystal Display Group SHARP CORPORATION...
  • Page 2 RECORDS OF REVISION REF.PAGE REVISED DATE PARAGRAPH SUMMARY DRAWING No. 1st July 2010 First issue P7 Table3-1 Weight was filled in. (Mass: 3.0g) Power consumption of condition1 typ P14 Table6-4 and condition2 typ were added. 16th Aug 2010 EXTMODE="H" mode of ※1 ：...
  • Page 3 ○ These specification sheets are the proprietary product of SHARP CORPORATION ("SHARP") and include materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of SHARP.
  • Page 4 (2) Be careful to handle this LCD panel in order to avoid injury yourself by panel`s edge as this panel is made of glass and might be a sharp edge. (3) Do not scratch the surface of the polarizer as it is easily damaged.
  • Page 5 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 Equipment and containers Process equipment such as conveyer, soldering iron, working bench and containers may possibly generate electrostatic charge up and discharge. Equipment must be grounded through 100Mohms resistance. Use ion blower. Floor Floor plays an important role in leaking static electricity generated in human body or equipment.
  • Page 6 MODEL No. PAGE LCP-2110019B LS013B7DH01 [For operating LCD module] (1) Do not operate the LCD panel under outside of electrical specification. Otherwise LCD panel may be damaged. (2) Do not use the LCD panel under outside of specified driving timing chart. Otherwise LCD panel may not have proper picture quality.
  • Page 7 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 [Other Notice] (1) Operation outside specified environmental conditions cannot be guaranteed. (2) As power supply (VDD-GND、VDDA-GND) impedance is lowered during use, bus controller should be inserted near LCD module as much as possible.

  • Page 8: Table Of Contents

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 Contents 1. Outline ...............................7 2. Characteristics..........................7 3. Mechanical Specification.........................7 4. Input terminal names and functions....................8 5. Absolute Maximum Rating ......................9 6. Electrical characteristics .......................10 7. Optical characteristics........................21 8. Module outline ..........................23 9. External capacitors ........................24 10.

  • Page 9: Outline

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 1. Outline This TFT-LCD module is a reflective active-matrix with slightly transmissive memory liquid crystal display module with CG silicone thin film transistor. Module outline is indicated in fig 8-1. 2. Characteristics ・ Transflective panel of white and black ・...

  • Page 10: Input Terminal Names And Functions

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 4. Input terminal names and functions Table4-1 Terminal symbol I／O Function Remark 【Remark4-1】 TEST1 Test terminal 【Remark4-1】 TEST2 Test terminal SCLK INPUT Serial clock signal INPUT Serial data input signal INPUT Chip select signal...

  • Page 11: Absolute Maximum Rating

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 5. Absolute Maximum Rating Table5-1 ( GND＝0V ) Item Symbol MIN. MAX. Unit Remark Power Analog VDDA -0.3 +5.8 supply Logic -0.3 +5.8 [Remark5-1] voltage Input signal voltage(high) [Remark5-2] Input signal voltage(low) -0.3...

  • Page 12: Electrical Characteristics

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6. Electrical characteristics 6-1) TFT LCD panel drive Table6-1 Recommended operating Condition VSS(GND)＝0V、Ta＝＋25℃ Item symbol MIN. TYP. MAX. Unit Remark Power supply Analog VDDA +4.8 +5.0 +5.5 Logic +4.8 +5.0 +5.5 [Remark6-1] *VDD Input signal voltage +2.70...
  • Page 13 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-2) Power supply sequence On Sequence Normal operation Off sequence ③※1 ④※1 ① ② ⑤ ⑥ ⑦ VDD/VDDA（5V） DISP Normal operation EXTCOMIN Normal operation ※2 ※2 Normal operation ※2 ※2 Others ※Refer to timing chart and AC timing characteristics for detail ※1 ③...
  • Page 14 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-3) Input signal characteristics Table6-3-1 VDDA=＋5.0V、VDD=＋5.0V、GND=0V、Ta=25℃ Item Symbol Unit Remark Frame frequency fSCS Clock frequency fSCLK Vertical Interval 16.66 1000 COM Frequency fCOM Table 6-3-2 VDDA=＋5.0V、VDD=＋5.0V、GND=0V、Ta=25 Item Symbol Unit Remark SCS Rising time...
  • Page 15 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 SCS, SI, SCLK signal twSCSH twSCSL trSCS tsSCS thSCS tfSCS trSI tfSI tsSI thSI twSCLKH twSCLKL SCLK trSCLK tfSCLK EXTCOMIN signal fEXTCOMIN EXTCOMIN twEXTCOMINH trEXTCOMIN tfEXTCOMIN DISP signal DISP trDISP tfDISP ※SCS,SI,SCLK、DISP、EXTCOMIN: 3V input voltage...
  • Page 16 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-4) Power consumption (Average) Table6-4 Ta=25℃ Item unit Remark Condition1 [Remark6-4] Condition2 [Remark6-4] * Measurement Condition 1 Display mode (no display data update), Display pattern: Vertical stripe display * Measurement Condition 2 Data update mode (with display data update: 1Hz) Common inversion with VDD=5V、VDDA=5V、fSCLK=1MHz、fSCS=1Hz, Display pattern: Vertical stripe display...
  • Page 17 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-5) Input Signal Timing Chart 6-5-1 Data update mode (1 line) Updates data of only one specified line. (M0=”H”、M2＝”L”) twSCSH twSCSL tsSCS thSCS DMY DMY DMY DMY DMY AG0 AG1 AG2 AG3 AG4 AG5 AG6 AG7...
  • Page 18 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-5-2 Data Update Mode (Multiple Lines) Updates arbitrary multiple lines data. (M0=”H”、M2＝”L”) twSCSH tsSCS D141 D142 D143 D144 DUMMY DATA(don't care) tsSI thSI twSCLKL twSCLKH SCLK Gate line address period Data writing period...
  • Page 19 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-5-3 Display Mode Maintains memory internal data (maintains current display). (M0=”L”、M2＝”L”) twSCSH twSCSL tsSCS thSCS DUMMY DATA(don't care) DUMMY DATA(don't care) thSI tsSI SCLK Mode selection Data transfer period period (More than 13ck) (3ck) M0: Mode flag.
  • Page 20 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-5-4 All Clear Mode Clears memory internal data and writes white. (M0=”L”、M2＝”H”) twSCSH twSCSL tsSCS thSCS DUMMY DATA(don't care) DUMMY DATA(don't care) tsSI thSI SCLK Mode selection Data transfer period period (More than 13ck) (3ck) M0: Mode flag.
  • Page 21 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-5-5 COM Inversion There are two types of inputs, COM signal serial input (EXTMODE=”L”) and external COM signal input (EXTMODE=”H”). EXTMODE=“L” ※1 ※1 ※1 fCOM ※2 ※2 M1：LC polarity inversion flag: If M1 is "H" then VCOM="H" is output. If M1 is "L" then VCOM="L" is output.
  • Page 22 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 6-6) Input Signal and Display, Gate address(Line) Setting Data position in display〔H,V〕 P1,L1 P1,L1 P2,L1 P2,L1 P3,L1 P3,L1 P144,L1 P1,L2 P1,L2 P2,L2 P2,L2 P1,L3 P1,L3 Display Display side up side up P1,L168 P144,L168...

  • Page 23: Optical Characteristics

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 7. Optical characteristics Table 7-1 Ta=25 Item Symbol MIN. TYP. MAX. unit Remark Viewing angle θ21,θ22 (40) (55) °(degree) [Remark7-1] CR≧2 θ11 (40) (60) °(degree) θ12 (40) (60) °(degree) Contrast ratio (14) [Remark7-2､3]...
  • Page 24 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 [Remark7-1] Defintion of Viewing Angle Normal Line Δθ22 Δθ11 Δθ12 Δθ21 6 o’clock direction [Remark7-2] Defintion of Contrast Retio Reflection intensity in white display Contrast ratio(CR) ＝ Reflection intensity in black display [Remark7-4] Respons time (Change in reflection ratio) It’s difined by the time change of optical receiver output when signal is input to display white or black...

  • Page 25: Module Outline

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 8. Module outline 8-1) Outline dimension of the 1.26” (144 x 168) panel fig.8-1 fig. 8-2 fig. 8-3...

  • Page 26: External Capacitors

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 9. External capacitors Fig. 9-1 External capacitor recommendation capacity value ＜Recommended capacity value＞ C1：DISP- VSS: rank B 0.1uF Ceramic capacitor C2：VDDA- VSS: rank B 1uF Ceramic capacitor C3：VDD- VSS: rank B 1uF Ceramic capacitor ※Above circuit and parts are only recommendation.

  • Page 27: External Power Supply Circuit

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 10. External Power Supply Circuit An external power supply circuit is necessary to drive the Pixel Memory LCD with the 3V battery. Table 1-1 shows power supply IC of the recommendation. Table 1-1...

  • Page 28: Zebra Connector

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 11. Zebra connector Contact Resistance ：lower than 100Ω 【Recommended zebra connector】 Shin-Etsu Polymer: SX type Recommended size L：27.7±0.2mm W：1.5±0.1mm H：2.0±0.1mm P：0.03mm Recommended compression ratio：15±8% The zebra connector placement position 1．SX Specifications（A figure of reference）...

  • Page 29: Packaging

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 12. Packaging 12-1) Serial number (Ink-jet print) Will be indicated on serial number label as indicated in Figure 12-1 outline dimension figure. Model number Print location is TBD Print structure Serial number specifications A：a single figure of the year...
  • Page 30 SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 12-3) Packaging Packageing size ：578mmx382mmx153mm Fig. 12-2 Packaging Form...

  • Page 31: Reliability Test Conditions

    SPEC No. MODEL No. PAGE LCP-2110019B LS013B7DH01 13. Reliability Test Conditions 13-1) Reliability test items Table13-1 Test Item Test condition Remark High temperature storage test Ta=80degrees Celsius 240h Ta=-30degrees Celsius 240h Low temperature storage test High temperature and high humidity...
