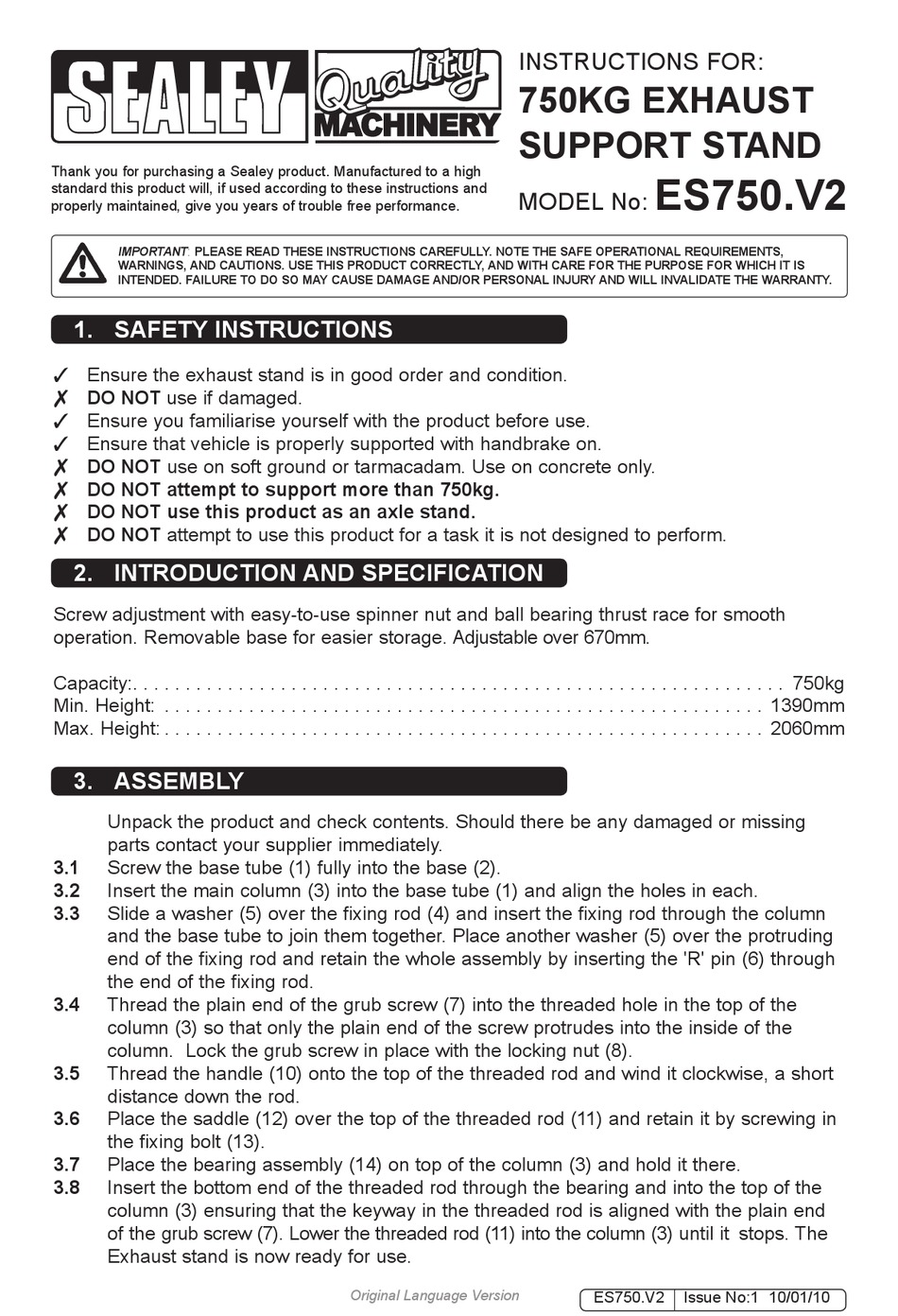

Sealey ES750.V2 Instructions

thank you for purchasing a sealey product. manufactured to a high
standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: pLease read these InstruCtIons CareFuLLY. note the saFe operatIonaL reQuIreMents,
WarnIngs, and CautIons. use thIs produCt CorreCtLY, and WIth Care For the purpose For WhICh It Is
Intended. FaILure to do so MaY Cause daMage and/or personaL InJurY and WILL InvaLIdate the WarrantY.
1. saFetY InstruCtIons
 ensure the exhaust stand is in good order and condition.
 do not use if damaged.
 ensure you familiarise yourself with the product before use.
 ensure that vehicle is properly supported with handbrake on.
 do not use on soft ground or tarmacadam. use on concrete only.
 do not attempt to support more than 750kg.
 do not use this product as an axle stand.
 do not attempt to use this product for a task it is not designed to perform.
2. IntroduCtIon and speCIFICatIon
screw adjustment with easy-to-use spinner nut and ball bearing thrust race for smooth
operation. removable base for easier storage. Adjustable over 670mm.
capacity:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750kg
min. Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1390mm
max. Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2060mm
3. asseMbLY
unpack the product and check contents. should there be any damaged or missing
parts contact your supplier immediately.
3.1 screw the base tube (1) fully into the base (2).
3.2 insert the main column (3) into the base tube (1) and align the holes in each.
3.3 slide a washer (5) over the fixing rod (4) and insert the fixing rod through the column
and the base tube to join them together. Place another washer (5) over the protruding
end of the fixing rod and retain the whole assembly by inserting the 'r' pin (6) through
the end of the fixing rod.
3.4 thread the plain end of the grub screw (7) into the threaded hole in the top of the
column (3) so that only the plain end of the screw protrudes into the inside of the
column. lock the grub screw in place with the locking nut (8).
3.5 thread the handle (10) onto the top of the threaded rod and wind it clockwise, a short
distance down the rod.
3.6 Place the saddle (12) over the top of the threaded rod (11) and retain it by screwing in
the fixing bolt (13).
3.7 Place the bearing assembly (14) on top of the column (3) and hold it there.
3.8 insert the bottom end of the threaded rod through the bearing and into the top of the
column (3) ensuring that the keyway in the threaded rod is aligned with the plain end
of the grub screw (7). lower the threaded rod (11) into the column (3) until it stops. the
exhaust stand is now ready for use.
instructions for:
750kg exhaust
support stand
model no:
Original Language Version
es750.v2
es750.V2 issue no:1 10/01/10
