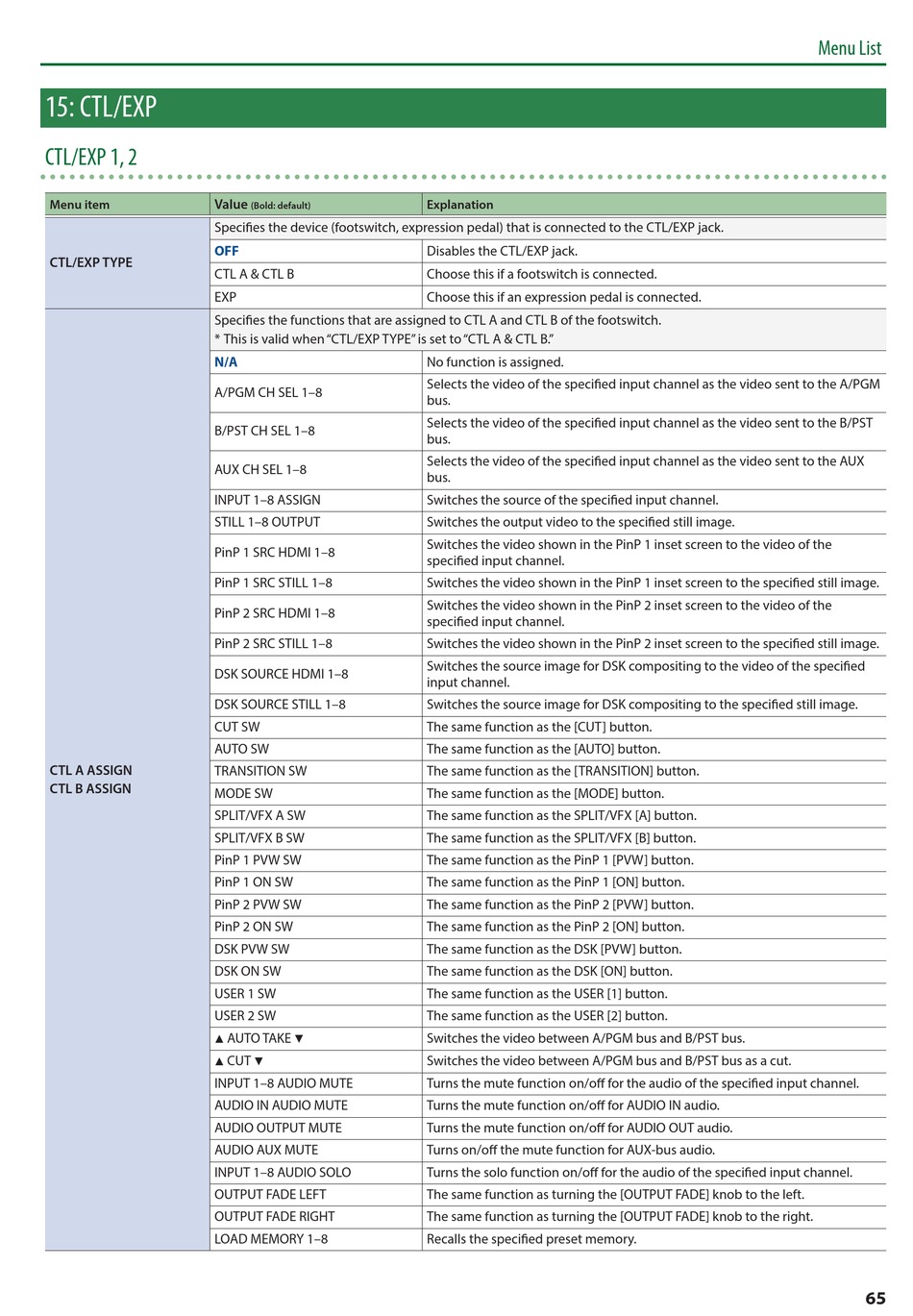

15: CTL/EXP

CTL/EXP 1, 2
Value
Menu item
Specifies the device (footswitch, expression pedal) that is connected to the CTL/EXP jack.
OFF
CTL/EXP TYPE
CTL A & CTL B
EXP
Specifies the functions that are assigned to CTL A and CTL B of the footswitch.
* This is valid when "CTL/EXP TYPE" is set to "CTL A & CTL B. "
N/A
A/PGM CH SEL 1–8
B/PST CH SEL 1–8
AUX CH SEL 1–8
INPUT 1–8 ASSIGN
STILL 1–8 OUTPUT
PinP 1 SRC HDMI 1–8
PinP 1 SRC STILL 1–8
PinP 2 SRC HDMI 1–8
PinP 2 SRC STILL 1–8
DSK SOURCE HDMI 1–8
DSK SOURCE STILL 1–8
CUT SW
AUTO SW
CTL A ASSIGN
TRANSITION SW
CTL B ASSIGN
MODE SW
SPLIT/VFX A SW
SPLIT/VFX B SW
PinP 1 PVW SW
PinP 1 ON SW
PinP 2 PVW SW
PinP 2 ON SW
DSK PVW SW
DSK ON SW
USER 1 SW
USER 2 SW
H AUTO TAKE I
H CUT I
INPUT 1–8 AUDIO MUTE
AUDIO IN AUDIO MUTE
AUDIO OUTPUT MUTE
AUDIO AUX MUTE
INPUT 1–8 AUDIO SOLO
OUTPUT FADE LEFT
OUTPUT FADE RIGHT
LOAD MEMORY 1–8
(Bold: default)
Explanation
Disables the CTL/EXP jack.
Choose this if a footswitch is connected.
Choose this if an expression pedal is connected.
No function is assigned.
Selects the video of the specified input channel as the video sent to the A/PGM
bus.
Selects the video of the specified input channel as the video sent to the B/PST
bus.
Selects the video of the specified input channel as the video sent to the AUX
bus.
Switches the source of the specified input channel.
Switches the output video to the specified still image.
Switches the video shown in the PinP 1 inset screen to the video of the
specified input channel.
Switches the video shown in the PinP 1 inset screen to the specified still image.
Switches the video shown in the PinP 2 inset screen to the video of the
specified input channel.
Switches the video shown in the PinP 2 inset screen to the specified still image.
Switches the source image for DSK compositing to the video of the specified
input channel.
Switches the source image for DSK compositing to the specified still image.
The same function as the [CUT] button.
The same function as the [AUTO] button.
The same function as the [TRANSITION] button.
The same function as the [MODE] button.
The same function as the SPLIT/VFX [A] button.
The same function as the SPLIT/VFX [B] button.
The same function as the PinP 1 [PVW] button.
The same function as the PinP 1 [ON] button.
The same function as the PinP 2 [PVW] button.
The same function as the PinP 2 [ON] button.
The same function as the DSK [PVW] button.
The same function as the DSK [ON] button.
The same function as the USER [1] button.
The same function as the USER [2] button.
Switches the video between A/PGM bus and B/PST bus.
Switches the video between A/PGM bus and B/PST bus as a cut.
Turns the mute function on/off for the audio of the specified input channel.
Turns the mute function on/off for AUDIO IN audio.
Turns the mute function on/off for AUDIO OUT audio.
Turns on/off the mute function for AUX-bus audio.
Turns the solo function on/off for the audio of the specified input channel.
The same function as turning the [OUTPUT FADE] knob to the left.
The same function as turning the [OUTPUT FADE] knob to the right.
Recalls the specified preset memory.
