Note
Do not push excess phone
cord up inside the DTIM
housing and over the circuit
board.
Note
You must conduct a phone
test whenever the DTIM bat-
tery is replaced.
Dialog Telephone Interface Module Installation Instructions
5. Insert the 8-position phone cord plug into the RJ-31X jack (E in Figure 4).
6. Remove the right knockout on the DTIM plastic, feed the 6-position phone cord plug through
it and connect the plug into the DTIM phone jack (Figure 5).
7. Check all phones on the premises to make sure you hear dial tone and can dial out. If dial tone
exists but you cannot dial out, see "Troubleshooting: Constant Dial Tone".
Phone Test
After connecting the phone line to the DTIM, conduct a phone test to verify reports are made to
the central monitoring station. The following steps describe the basic steps for conducting a
phone test. Refer to the specific panel installation instructions for complete details.
1. Call the central monitoring station to inform them you are testing the system.
2. Make sure the panel has the correct account number and central station receiver phone num-
ber programmed.
3. Enter the phone test command.
4. Contact the central monitoring station when you are finished testing.
Installing the Battery Ty-wrap and Cover Screw (UL Listed
Installations Only)
After installation, programming, and testing are completed install the Ty-wrap around the battery
and battery holder. Cut off any excess.
Secure the cover with the cover screw by installing it through the cover push tab.
E
BRN
GRY
B
GRN
RED
TIP
RING
(+)
(-)
A
D
Green
Red
Black
White (or Yellow)
C
Red
Green

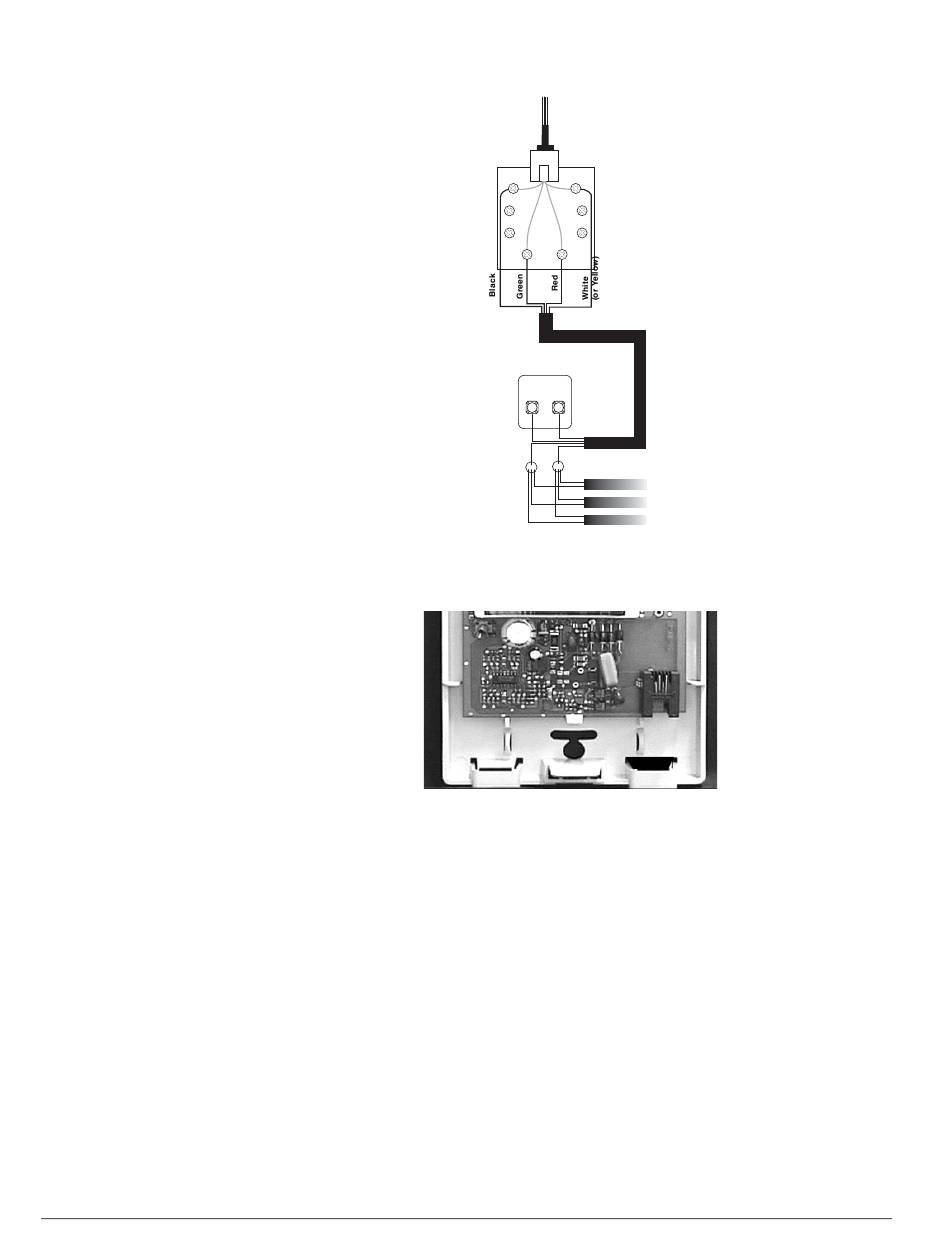

Figure 4. RJ-31X Phone Wiring
Phone
Jack
Figure 5. Knockout and Phone Jack Locations
Knockout
Removed
5
