Sealey STS104 Instructions

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
instructions
1. safety
warning! ensure that Health & safety, local Authority regulations and general workshop practice regulations are adhered to
‰
when using tools.
do not use tools if damaged.
8
maintain tools to ensure that they are in an adequate condition for safe use and optimum performance.
9
Wear suitable clothing to avoid snagging. do not wear jewellery. tie back long hair.
9
When not in use, store in a safe, dry childproof place.
9
Keep children and unauthorised persons away from the work area.
9
warning! the warnings, conditions and instructions in this manual cannot cover all possible conditions and situations. the
‰
operator/ user must apply caution and common sense (good practical sense).
1.1. for battery use and care
warning! Keep batteries dry at all times.
‰
do not combine used batteries with new ones or mix battery types or mix different brands.
8
insert the batteries carefully as indicated on the product.
9
do not use a battery if it is cracked or broken.
8
do not heat or incinerate batteries.
8
do not throw battery into a fire.
8
1.2. use and care
do not exceed the permitted maximum torque value for this meter.
8
Periodic re-calibration is necessary to maintain accuracy.
9
to avoid damaging the torque screwdriver, neVer apply force to the meter when the power is off. Always turn it on before using.
9
do not turn off the torque screwdriver while torque force is applied.
8
do not press, pressure, or damage the lcd display.
8
do not drop or throw this meter. Avoid bumps or shocks to the torque screwdriver.
8
do not leave this meter in any place exposed to excessive heat, humidity, or direct sunlight.
8
do not expose this meter to dust or sand as this could cause serious damage.
8
warning! do not use on live electrical circuits.
‰
2. introduction

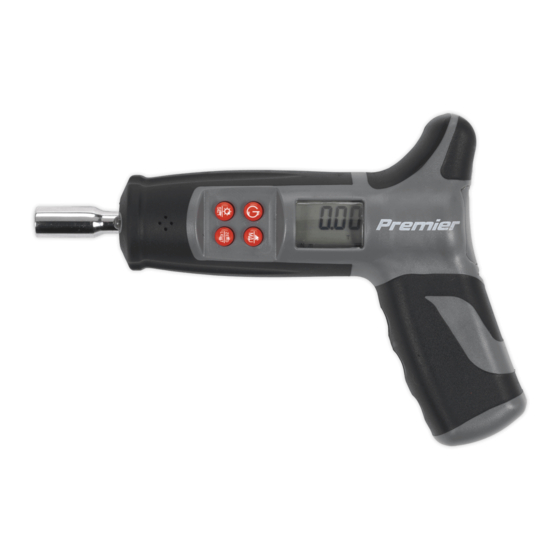

suitable for automotive, workshop and factory use. lcd read-out with led, audible alarm and vibration indicating achieved and target torque
levels. Preset track, peak or desired torque levels using simple push-button menu. clockwise and anti-clockwise operation. selectable read-out
in Nm or lb.ft. Accurate to ±1% of stated capacity. Textured, T-handle for added grip and comfort. Supplied with test certificate.
3. specification
model no. .................................................................. sts104
drive ..........................................................................1/4"Hex
range. ...................................................................... 0-20nm
length ........................................................................ 170mm
Battery ...................................................... 2 x AAA (supplied)
operation
© Jack sealey limited
instructions for
screwdriver torque digital 0-20nm
1/4"hex drive
sts104
model no:
Original Language Version sts104 | issue 1 15/05/17
