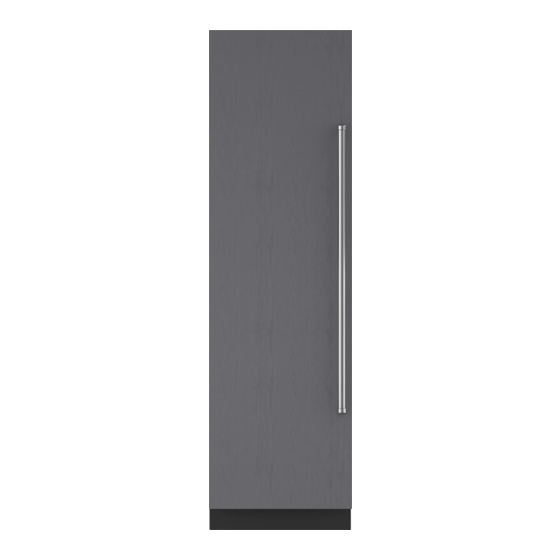

Subzero IC-24CI Service Manual
  1. Manuals
  2. Brands
  3. Subzero Manuals
  4. Refrigerator
  5. IC-24CI
  6. Service manual

Subzero IC-24CI Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

subzero.com
800.222.7820
IC-24CI
Service Manual
Controls & Operation
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-24CI and is the answer not in the manual?

Questions and answers

Related Manuals for Subzero IC-24CI

Summary of Contents for Subzero IC-24CI

  • Page 1 800.222.7820 IC-24CI Service Manual Controls & Operation...

  • Page 2: Select Option

    IC-24C(I) Controls and Operation service.subzero.com USER INTERFACE MODULE (UIM) Perform input operations, including temperature regulation, user options, and settings; view possible issues; and enter service ° ° functions for the electronic control system through the User Interface Module (UIM). BOOT-UP SCREEN The Boot-Up screen appears after supplying power to the unit for the first time.

  • Page 3: Controls And Operation

    IC-24C(I) Controls and Operation service.subzero.com OPTION SCREEN (continued) SETTINGS SCREEN ICONS Icon Description Icon Description Touch to activate or deactivate ice maker and max ice feature. One cube indicates regular ice; three cubes Touch to adjust lighting delay and intensity.

  • Page 4: Reset Filter

    IC-24C(I) Controls and Operation service.subzero.com SMART HOME SCREEN (continued) The screen for the smart home feature appears. Tap Information The Info screen appears. Smart Grid Info Enable Filters Versions Errors Serial# Customer Service 1-800-222-7820 Tap Enable to turn on the smart home feature.
  • Page 5 IC-24C(I) Controls and Operation service.subzero.com FILTERS SCREEN (continued) Tapping Enabled causes Enabled to turn bold and turns on Tap Errors on the Info screen, and the Errors screen the filter life timer. Turn on the filter life timer if the unit water appears.

  • Page 6: Brightness & Contrast

    IC-24C(I) Controls and Operation service.subzero.com BRIGHTNESS AND CONTRAST SCREEN The Door Alarm Time screen appears. Tap Settings Tap Brightness and Contrast Door Alarm Time The Brightness and Contrast screen appears. Brightness & Contrast Tap the + or - to adjust the alarm duration between five and 90 seconds.

  • Page 7: Service Options

    IC-24C(I) Controls and Operation service.subzero.com SERVICE OPTIONS SCREEN (continued) The Service Options password screen appears. SERVICE OPTION ERRORS SCREEN Tap Settings Tap Service Options Enter Password Tap Errors from the Service Options screen. - - - The Errors screen appears.
  • Page 8 IC-24C(I) Controls and Operation service.subzero.com TEMPERATURE LOG (continued) Scroll the temperatures left to see the stored temperature Once the programming is complete, the Complete! history. message appears. MODEL CONFIGURATION SCREEN Set Model Configuration Tap Settings Complete ! Tap Service Options Tap Model from the Service Options screen.
  • Page 9 IC-24C(I) Controls and Operation service.subzero.com MANUAL COMPONENT ACTIVATION SCREEN (continued) The Component Activation screen for the selected zone Tap Start to begin manual defrost. appears. Tap the arrow to return to the Manual Component Activation screen. Manual Defrost Component Activation Zone 1 Currently Defrosting...
  • Page 10 IC-24C(I) Controls and Operation service.subzero.com CURRENT TEMPERATURES SCREEN (continued) The Current Temperatures screen appears. Tap the Arrow to The Zone Temp Offset adjustment screen appears. return to the Service Options screen. Zone Temp Offset Current Temperatures 4° Zone 1 Zone 2 Tap the + or - symbols to adjust the temperature offset.
  • Page 11 IC-24C(I) Controls and Operation service.subzero.com CLEAR FAULTS SCREEN (continued) After 10 seconds, the Service Options screen appears. EVAPORATOR FAN OPERATION Evaporator fans are brushless direct current (BLDC) motors. When the unit is on, the evaporator fan supply is 12 VDC at all SHOWROOM MODE SCREEN times.
  • Page 12 IC-24C(I) Controls and Operation service.subzero.com FAN-ASSISTED OFF-CYCLE DEFROST ICE MAKER MONITORING If the refrigerator compartment temperature reaches high offset but the refrigerator evaporator temperature is too low for the EXCESSIVE COMPRESSOR RUN refrigerator compressor to start, the control board sends a high- speed run signal to the refrigerator evaporator fan.
