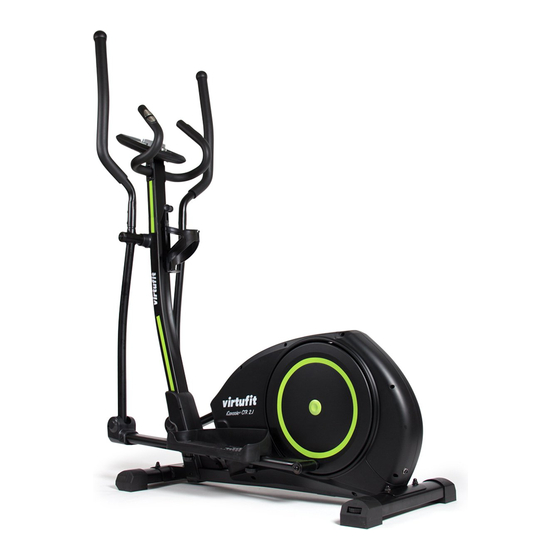

iConsole CTR 2.1 Crosstrainer
User manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iConsole CTR 2.1 and is the answer not in the manual?

Questions and answers

Related Manuals for VIRTUFIT iConsole CTR 2.1

Summary of Contents for VIRTUFIT iConsole CTR 2.1

  • Page 1 CTR 2.1 Crosstrainer User manual...

  • Page 2: Table Of Contents

    ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MAINTENANCE MAINTENANCE TROUBLE SHOOTING TROUBLE SHOOTING 19 - 25 CONTROL PANEL CONTROL PANEL APP INSTRUCTIONS APP INSTRUCTIONS EXPLODED DRAWING EXPLODED DRAWING 28 - 29 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 3: Safety Instructions

    – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 5: Checklist

    When you open the carton, and you will find the below parts in the carton. MAIN FRAME CONSOLE HANDLEBAR (L+R) UPPER HANDLEBAR (L+R) LOWER HANDLEBAR (L+R) FRONT STABILIZER REAR STABILIZER FOOTPLATE (L+R) PLASTIC COVER FRONT (L+R) BOTTLE HOLDER ADAPTER ROTATION ROD VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 6 NO 91*4 NO 101*1 NO 29*5 NO 32*4 NO 86*4 NO 9*4 NO 10*4 NO 11*4 NO 11*2 NO 87*4 NO 14*2 NO 35*2 NO 88*4 NO 22*1 NO 23*2 NO 24*2 NO 27*2 NO 100*2 VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 7: Assembly Instructions

    Attach the Rear Stabilizer (63) onto the Main frame (93) with M8 Screws (64). Curved washer (9) and Cap nut (91). Tighten fullyn. NOTE: The M8 Screws (64) must be tightend up firmly. You can adjust the Rear End Cap to keep the elliptical trainer stable. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 8 4x Hex bolt M8x20mm (99), M8 Curved Washer (9), M8 Flat Washer (92) and M8 Spring Washer (11). Tighten the M8*20 Allen screws (10) firmly. • Align the Front Bottom Plastic Cover (21L&21R) together by using Self-tapping Screw M3x15mm (22), Self tapping Screw M4x15mm (29) and Screw M5x15mm (30). VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 9 Rotation Rod and secure in place with 19.5*38*0.5mm Flat Washer (18), 8.5*36*3mm Flat Washer, M8 Spring Washer (11) and M8*20 Allen Bolt (14) for each side. • On both sides tighten the M8*20 Allen screws (14) Tightly. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 10 Attach the Footplate Support Bars (33L+33R) by sliding them onto the Main Frame (93) and securing in place with M8*20 Allen Bolt (14), M8 Spring Washer (11) and M8 Flat Washer (35) for each side. Tighten fully. • The M8*20 Allen screw must be tightend up firmly. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 11 Attach the Plastic Covers (28L+28R) onto the Footplate Support Bars (33L+33R) using M4 Self tapping Screws (29) and M5 Screws (30). • Align the Handlebar Post (95), So it is straight and then fully tighten the bolts. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 12 Handlebar Post (95) and make sure the 2 ends be pulled and exposed on the middle top of Handlebar Post hole. • Attach Handlebars (3L+3R) by using M8 Allen Bolt (14) and M8 Flat Washer (92) for each side. Make sure bolts are fully tightened. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 7 • Attach the Upper Handlebar (8L+8R) onto the Lower Handlebar (17) by using M8 Allen Bolt (10), M8 Spring Washer (11) and M8 Curved Washer (9). VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 14 Align the Upper Tension Cable (98) on the top of Handlebar Post (95) with that on the Computer (1). • Align the Hand Pulse Cable (13) as well. Then Secure the Computer (1) with Handlebar Post by using M5 Screws (97). • Make sure all the bolts are fully tightened. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 15 Attach the Footplate (31L+31R) onto the Foot Support Bar (33L+33R) using M6 Carriage Bolts (32), M6 Flat Washers (88), M6 Spring Washers (87) and M6 Knob (86), tighten fully. • The M6 knob (86) needs to be tightend up firmly. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 16 Place the bottle cage (20) in the hole on the front of the caps. Connect the adapter, the adapter input (102) is on the back of the device. • You can now use the device. VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 17: Maintenance

    SEMI-ANNUAL MAINTENANCE • Inspect all bolts and nuts in connection with moving parts of the device, tighten as required. • Check the mobility of moving parts and components of the use equipment, silicone spray if necessary. VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 18: Trouble Shooting

    • The sensors may become damp, dirty or greasy. So you have to clean them regularly. The console is not working If there is no signal when pedaling, check if the cable is properly attached. VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 19: Control Panel

    • Computer restarts after pressing and holding for 2 seconds. RESET • Return to main menu, restore the value or stop mode. Start or stop the training. START / STOP • Increase or decrease the value. ENCODER • Confirm the value selection VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 20 Functions change automatically every 6 seconds. PROGRAM Choice of 12 programs. USER Manual selection. User determines his own resistance program. H.R.C. Heart Rate Control. Heart rate based program. RECOVERY Heart rate recovery status. BODY FAT Body fat measurement. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 21 Which that flashes you can increase / decrease by turning the knob. Press the button to confirm. Press start to start the program. 8. With the manual program you can set different values, with the pre-programmed programs only time. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 22 3. Press the round button to confirm the program. With another push of a button you can difficulty setting by turning afterwards. The time flashes after the button is pressed. You can now set the time by turning the knob. Select the desired time and press “START” to start the program. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 23 HEART symbol. Press the round button. Turn the knob to select. Press on the button to choose. After that time can be set by turning and pressing and the button. Pressure then press START to start. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 24 2. After selecting, you can place your hands on the heart rate sensors on the handlebars. 3. After a few seconds, an approximation of your BMI (B) and your body fat percentage (F) will appear. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 25 2. Time and heart rate are displayed. The time counts down from 60 seconds and the current heart rate becomes shown. You do not have to cycle. 3. The faster your heart rate drops, the better your fitness. NOTE: This is an estimate. The results should not be used for medical purposes. VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 26: App Instructions

    ICONSOLE+ APP STORE GOOGLE PLAY USER MANUAL ICONSOLE+ ICONSOLE+ ICONSOLE+ KINOMAP APP STORE GOOGLE PLAY USER MANUAL KINOMAP KINOMAP KINOMAP VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 27: Exploded Drawing

    EXPLODED DRAWING VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 28: Parts List

    Bearing 6004RS Nylon lock nut M10 Nut M6 Flat washer M10*19*2 Flat washer 6.5*19*1.5T Tube spacer 14*59.5 Hex head screw M6*75 Handlebar lower pivot bushes Allen head screw M6*16 Allen bolt M10*78 Flat washer 6*13*1.5T VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 29 Hex head screw M6*12 102 Adapter Flat washer 6*13*1T Idler Axle for Idler Flat washer 10*19*1.5 Belt adjustment set 2 sets Waved washer Φ10*15*0.3T Bearing 6300RS Flywheel Flywheel Axle Bearing 6000RS C-shape washer Φ9 Hex nut M10*1.25*4T VirtuFit iConsole CTR 2.1 Crosstrainer...

  • Page 30: Training Instructions

    The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit iConsole CTR 2.1 Crosstrainer...
  • Page 31 For questions or missing parts please contact your dealer.
