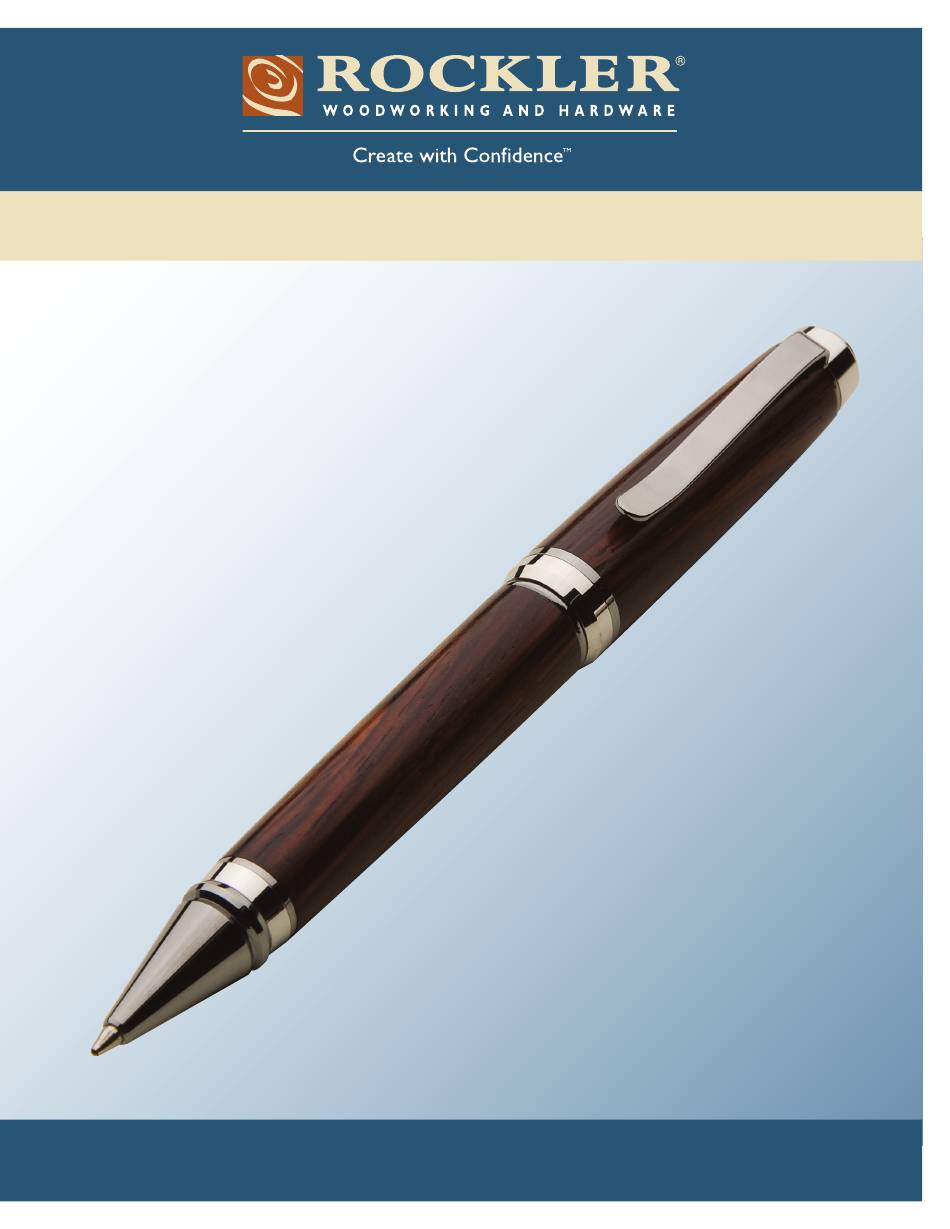

- Page 1 Platinum Cuban Pen Kit Instructions Effective December 2018 Review full manual instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent manual version for your product.
- Page 2 This product is designed only for specific applications as defined in the instructions and should not be modified or used for any manner not described in these instructions. Use only recommended accessories. Before using the Platinum Cuban Pen Kit: READ, UNDERSTAND and FOLLOW ALL INSTRUCTIONS AND SAFETY WARNINGS.
- Page 3 Upper Tube Lower Tube Mandrel 14.5mm 12.1mm 13.4 mm 11.7mm Cuban Pen Bushings Mandrel Setup Blank Preparation 1. Cut the blanks about 1/8” longer than the Brass Tubes to allow for blowout or hole elongation. (The Lower Tube is the longer of the two.) Maintain grain orientation of the two blanks for turning by drawing a line lengthwise across the cut line.
- Page 4 Twist Mechanism Coupler (5). 6. Thread the Twist Mechanism (4) onto the Twist Mechanism Check Rockler.com for updates. If you have further questions, please Coupler (5). If the writing tip has been exposed, turn the Twist contact our Technical Support Department at 1-800-260-9663 Mechanism Coupler (5) to retract it.
