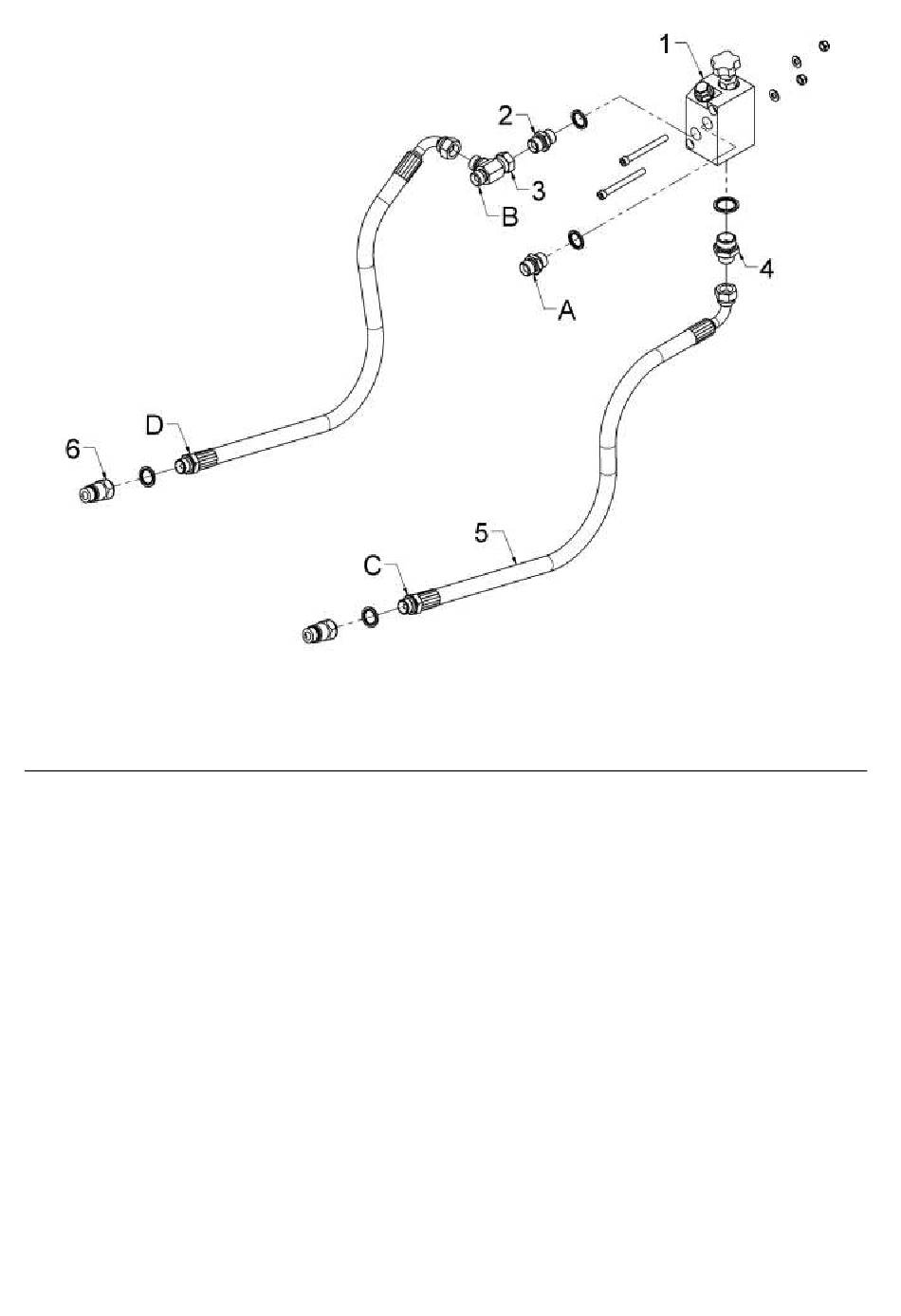

MANUAL BED SPEED CONTROL
A - Connection To Bed Chain Motor Supply Hose
B - Connection To Bed Chain Motor Return Hose
C - Pressure (Supply) Hose From Tractor
D - Return Hose To Tractor
Ref Description
KIT Manual Speed Control
(Comprising Items 1 & 2)
1
Flow Control Valve Manual 0-60lpm HYD5024
2
1/2" x 1/2" BSP M/M Union
3
1/2" BSP Tee Piece F/M/M
4
1/2" x 3/4" BSP M/M Union
5
Hydraulic Hose 1/2" x 2800mm
6
Quick Release Coupling - Male
Part Number
Qty Associated Parts
RS4580
1
1
HYD1013
2
HYD1928
1
HYD1119
1
HYD2228
2
HYD1901
2
12
Socket Hd Screw M8 x 80
Plain Washer M8
Locknut M8
Bonded Seal 1/2" BSP
Bonded Seal 3/4" BSP
Bonded Seal 1/2" BSP
Part Number Qty
FAS9536
2
FAS2343P
2
FAS2332
2
HYD4204
2
HYD4205
1
HYD4204
2
