Summary of Contents for Teagle TITAN 6

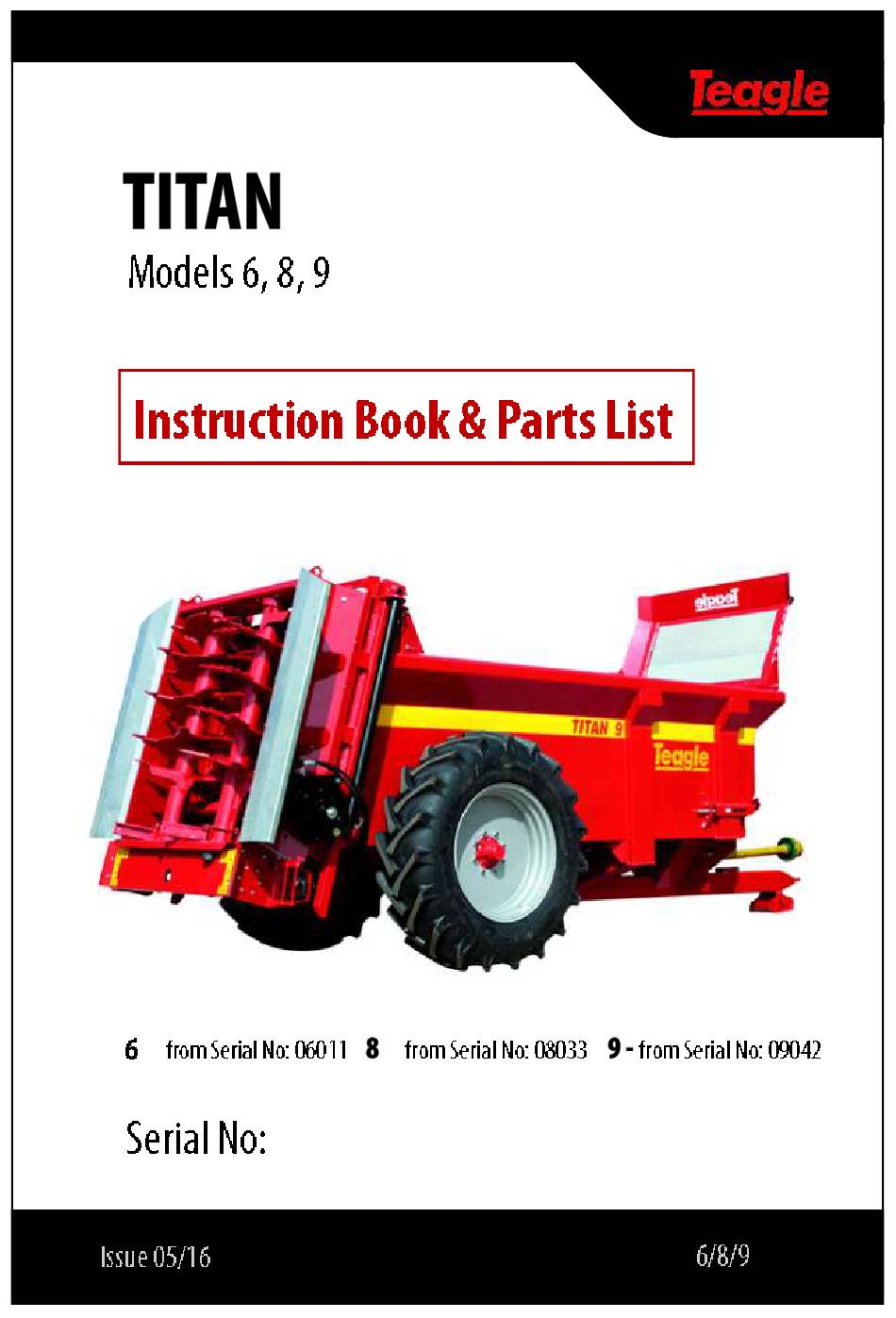

  • Page 1 _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 2 SAFETY FIRST! 1. READ THE INSTRUCTION BOOK THOROUGHLY 6. SECURE THE PTO GUARD BY MEANS OF before attempting to operate or carry out any CHECK CHAINS to suitable points on the tractor maintenance on the machine. If you do not and machine to prevent the outer plastic shield from understand any part of this manual, ask your dealer rotating.
  • Page 3 Cornwall TR4 8HQ United Kingdom declares in sole responsibility that the TITAN 6, TITAN 8 And TITAN 9 Rear Discharge Muck Spreader to which this certificate applies conforms to the essential Health and Safety requirements of EEC Directive 2006/42/EC & 2004/108/EC.
  • Page 4: Table Of Contents

    Bondioli & Pavesi wide angle front PTO shaft option Slurry door option 35 - 36 Slurry door hydraulic cylinder components Electronic bed speed control option Greedy boards option Titan 6 Greedy boards option Titans 8 & 9 Poultry muck paddles option Wiring diagram - lights & tractor lead...
  • Page 5: Specifications

    SPECIFICATIONS TITAN 6 TITAN 8 TITAN 9 Approximate Capacity Level (m Approximate Capacity Heaped (m Rated Load (tonnes) Overall Length (mm) 6000 7000 7000 Body Width (Internal) (mm) 1500 1500 1500 Width Across Lip (Internal) (mm) 1700 1700 1700 Body Depth (mm) Loading Height (Standard Tyres) (mm) 1.90...
  • Page 6: Safety

    SAFETY Ensure that the tractor is equipped with a 540rpm PTO speed. In addition to the standard safety guidelines listed at FITTING THE MACHINE ONTO THE TRACTOR the beginning of this handbook, the following special safety items apply to the Rear Discharge Spreader. Couple the machine hitch onto the tractor in the usual NEVER leave the tractor seat whilst PTO way.
  • Page 7: Loading

    LOADING If fitted with the optional slurry door raise it fully if the material to be spread is stackable, but only slightly if Before loading, check that no solid objects have been material contains a moderate amount of liquid slurry. placed in the spreader.
  • Page 8: Stopping Spreading

    Tyres - check tyre pressures regularly and look around the load in the spreader body forwards. This the tyres for splits and wear. increases weight on the tractor rear wheels, thus aiding traction. Where possible restrict spreading to OIL LEVELS less steep fields, spread in dry conditions and finish each load on flatter areas.
  • Page 9: Pto Driveline

    When removing and refitting the wheels, ensure that machine is securely supported with the use of correctly rated axle stands positioned on a level firm surface. When the wheels are removed and transported, they should be securely restrained and checked for: 1.
  • Page 10: Service Brakes

    SERVICE BRAKES LUBRICATION The service brakes should be checked and adjusted GREASE regularly in order to maintain braking performance and meet current braking regulations. Lubricate as indicated in Figure 5. Use a good quality semi-solid grease: As the brake linings wear it will become necessary to Item No.
  • Page 11: Fault Finding Chart

    FAULT FINDING CHART Symptom Fault Solution Irregular spread speed Incorrect loading procedure Load as per diagram in ‘OPERATION’ Bed conveyor operating too quickly Reduce bed conveyor speed Lumps form during spreading Beater flail tips worn Reverse or renew tips Bed conveyor operating too quickly Reduce bed conveyor speed Rapid wear of conveyor chain Bed conveyor over tensioned...
  • Page 12: Parts List

    WE0861 Tension Spring 185 x 3.3 SPR4612 Brake Ram Pivot Pin TB1102 Circlip E-Series 12 (1500) FAS7514 Cable Handbrake - Titan 6 RS4507 Wire Rope Grip 8mm ROP1291 Cable Handbrake - Titan 8 & 9 RS4607 Wire Rope Collar TRM1038...
  • Page 13: Decals

    Locknut M10 FAS2333 Hydraulic Hose 1/2” x 470mm HYD2234 1/2” BSP Tee Piece M/M/M HYD1922 Hydraulic Hose 1/2” - Titan 6 HYD2237 Hydraulic Hose 1/2” - Titan 8 & 9 HYD2235 Brake Coupling F 1/2” BSP HYD1904 Bonded Seal 1/2” BSP...
  • Page 14: Tvz Assali Axle Components

    TVZ ASSALI AXLE COMPONENTS Description Part No. Wheel Nut M18 x 1.5 WE0909 Hub Cap 110mm - Push On WE1537 Elastic Pin (5 x 58mm) WE1524 Crown Nut M48 x 1.5 WE1525 Taper Roller Bearing 32212 BRG1237 External Shield WE1540 Hub (8 Stud 275PCD) WE1541 Wheel Stud M18 x 1.5...
  • Page 15: Manual Bed Speed Control

    MANUAL BED SPEED CONTROL A - Connection To Bed Chain Motor Supply Hose B - Connection To Bed Chain Motor Return Hose C - Pressure (Supply) Hose From Tractor D - Return Hose To Tractor Ref Description Part Number Qty Associated Parts Part Number Qty KIT Manual Speed Control RS4580...
  • Page 16: Bed Components

    BED COMPONENTS Ref Description TITAN 6 & 8 TITAN 9 Qty Associated Parts Part Number Qty Gearbox Assembly Bed Drive RS4236 RS4536 (Comprising Items 1 - 4) Dual Relief Valve In Manifold HYD5026 HYD5026 Hydraulic Motor 25mm HYD5236 HYD5235 Setscrew M12 x 40...
  • Page 17 34 Locknut M12 FAS2334 Titan 8 SC3351 42 Locknut M12 FAS2334 Titan 9 RS3201A 46 Locknut M14 FAS2331 20 Slat - Crushed Ends Titan 6 SC4666A Titan 8 SC4666A Titan 9 RS3060 21 Tension Stop Manual RS4575 RS4575 Bolt M12 x 45...
  • Page 18: Beater Assembly Components

    BEATER ASSEMBLY COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty Hydraulic Hose 1/4” 1470mm HYD2068 Hydraulic Hose 1/4” 2080mm HYD2075 Clamp Top HYD1960C Setscrew M8 x 35 FAS2631P Pair Of 15mm Clamps HYD1960B 1/8" x 1/8" BSP M/M Union HYD1010 Grease Nipple 1/8”...
  • Page 19 Ref Description Part Number Qty Associated Parts Part Number Qty Beater LH WA RS4255 Flail Pin Assembly RS3078 Setscrew M10 x 30 FAS2655P Locknut M10 FAS2333 Flail Beater WA c/w Grease Nipple RS4257 Grease Nipple 1/4” BSF BRG5004 Beater RH WA RS4256 Rotor Tip 10 x 70 RSXAR400...
  • Page 20: Body Components

    TITAN 8 & 9 Qty Associated Parts Part Number Qty Body Support WA RS4214 RS4214 Setscrew M16 x 35 FAS2702P Locknut M16 FAS2335 Body - Titan 6 RS4200 Body - Titan 8 RS4300 Body - Titan 9 RS4400 Support Triangle Rear WA RS4639 RS4639...
  • Page 21 Ref Description TITAN 6 TITAN 8 & 9 Qty Associated Parts Part Number Qty 10 Front Seal 225mm RS3034 RS3034 11 Front Seal Stiffener 90mm RS3035 RS3035 12 Stand-Off-Hinge RS4620 RS4620 Plain Washer M6 FAS2342P Locknut M6 FAS2330 13 Guard Valve...
  • Page 22 32 Tube Support Rear WA RS4244 RS4244 Setscrew M16 x 30 FAS2701P Locknut M16 FAS2335 33 Rear Floor Assembly - Titan 6 RS4276 Setscrew M12 x 35 FAS2679P Rear Floor Assembly - Titan 8 RS4276 Cup Square Bolt M12 x 25 FAS9282P...
  • Page 23: Beater Drive Gearbox Components

    BEATER DRIVE GEARBOX COMPONENTS Oil Capacity - 6.5 Litres Oil Type - SAE 90 Ref Description Part No. Ref Description Part No. Gearbox Beater Berma RS4260 Oil Level Indicator 1” BSP HYD1471 (Comprising All Items) Breather 1/2” BSP HYD1793 O - Ring OR 2175 (BS031) HYD4043 Plug 1/2”...
  • Page 24: Bed Drive Gearbox Components Titans 6 & 8

    BED DRIVE GEARBOX COMPONENTS TITANS 6 & 8 Oil Capacity - 3.8 Litres Oil Type - SAE 90 Ref Description Part No. Ref Description Part No. Gearbox Bed Chain RS4235 Oil Seal End Cap 62 x 10mm SC3829 (Comprising All Items) Circlip - Internal 62mm FAS7107 Oil Seal 115 x 75 x 10.0mm...
  • Page 25: Bed Drive Gearbox Components Titans

    BED DRIVE GEARBOX COMPONENTS TITAN 9 Oil Capacity - 6 Litres Oil Type - SAE 90 Ref Description Part No. Ref Description Part No. Gearbox Bed Chain RS4535 Oil Seal End Cap 62 x 10mm SC3829 (Comprising All Items) Circlip - Internal 62mm FAS7107 Oil Seal 130 x 85 x 12 BRG3072...
  • Page 26: Comer Shearbolt Front Pto Shaft

    COMER SHEARBOLT FRONT Description Part No. PTO Shaft Complete Titan 10 & 12 Shearbolt PTO8038 (Comprising All Items) Pull Back Collar Set PTO2771 1.3/8” 6 Spline Yoke Size 60 PTO2775 Cross Journal Assembly PTO2321 Outer Tube Yoke PTO1915 Spring Tension Pin 10 x 80 FAS4147 Outer Tube Profile Size 60 (1410) PTO2953...
  • Page 27: Comer Rear Pto Shaft

    COMER REAR PTO SHAFT Description Part No. PTO Shaft Complete Titan Rear PTO8039 (Comprising All Items) Pull Back Collar Set 1.3/4” 20 Spline PTO2969 Pull Back Collar Yoke 1.3/4” 20 Spline PTO2968 Cross Journal Assembly PTO2321 Outer Tube Yoke PTO1915 Spring Tension Pin 10 x 80 FAS4147 Outer Tube Profile Size 60 (1410)
  • Page 28: Bondioli & Pavesi Shearbolt Front Pto Shaft

    BONDIOLI & PAVESI SHEARBOLT FRONT PTO SHAFT Description Part No. PTO Shaft Complete Titan 10 & 12 Shearbolt PTO8038 Ball Collar Kit 1-3/8” PTO4114 Yoke 6 Spline S7-G7 PTO4115 Cross Journal Kit S7-G7 PTO4054 Outer Tube Yoke PTO4117 Flexible Roll Pin 10 x 75 FAS4146 Outer Cardan Drive Tube PTO4024...
  • Page 29: Bondioli & Pavesi Rear Pto Shaft

    BONDIOLI & PAVESI REAR PTO SHAFT Description Part No. PTO Shaft Complete Titan Rear PTO8039 Ball Collar Kit 1-3/4” PTO4148 Yoke 20 Spline G7 PTO4146 Cross Journal Kit S7-G7 PTO4054 Outer Tube Yoke PTO4117 Flexible Roll Pin 10 x 75 FAS4146 Outer Cardan Drive Tube PTO4024...
  • Page 30: Lighting Kit Components

    LIGHTING KIT COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty KIT Lighting Standard 10 And 12 EC1126 (Comprising Items 1 - 5) Rear Light Assembly RH EC1115 Plain Nut M6 FAS2301P Lens Rear Light EC1116 Lens Screw EC1117 Number Plate Light Assembly 0.8m EC1113 Shakeproof Washer M4...
  • Page 31: Flashing Beacon Option

    FLASHING BEACON OPTION Ref Description Part Number Qty Associated Parts Part Number Qty KIT Flashing Beacon RS4631 (Comprising All Items) Electrical Components - Flashing Beacon RS4632 (Comprising Items 1 & 2) Flashing Beacon Assembly EC1119 Lens Flashing Beacon EC1120 Flashing Beacon Stem Assembly EC1118 Flashing Beacon Mount RS4547...
  • Page 32: Hydraulic Jack Option

    HYDRAULIC JACK OPTION Ref Description Part Number Qty Associated Parts Part Number Qty KIT Hydraulic Jack RS4270 (Comprising All Items) Guard Hydraulic Jack RS4275 Setscrew M8 x 16 FAS2625P Locknut M8 FAS2332 Outer WA Hydraulic Jack RS4271 Bolt M20 x 50 FAS9730P Plain Washer M20 FAS2347P...
  • Page 33: Hydraulic Jack Hydraulic Cylinder Components

    HYDRAULIC JACK HYDRAULIC CYLINDER COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty Hydraulic Jack - Hydraulic Cylinder CYL1220 (Comprising All Items) Rod WA - Hydraulic Jack CYL1222 Wiper Seal HYD4517 Wiper Seal Housing CYL1032 Rod Seal Backup Ring DC1233 U Packing HYD4327...
  • Page 34: Comer Cam Clutch Pto Shaft Option

    COMER CAM CLUTCH PTO SHAFT OPTION Description Part No. PTO Shaft Complete Titan 10 & 12 Standard PTO8036 (Comprising All Items) Pull Back Collar Set PTO2771 1.3/8” 6 Spline Yoke Size 60 PTO2775 1.3/8” 21 Spline Yoke Size 60 PTO2784 opt.
  • Page 35: Walterscheid Wide Angle Front Pto Shaft Option

    WALTERSCHEID WIDE ANGLE FRONT PTO SHAFT Description Part No. PTO Shaft Complete Titan 10 & 12 Wide Angle PTO8037 (Comprising All Items) Walterscheid Wide Angle Joint 1.3/8” 6 Spline (2480) PTO3230 Walterscheid Inner Yoke Wide Angle 1.3/8” 6 Spline PTO3229 Walterscheid Cross Journal Kit Wide Angle PTO3227 Walterscheid Wide Angle Double Yoke...
  • Page 36: Bondioli & Pavesi Cam Clutch Pto Option

    BONDIOLI & PAVESI CAM CLUTCH PTO SHAFT OPTION Description Part No. PTO Shaft Complete Titan 10 & 12 Standard PTO8036 Ball Collar Kit 1-3/8” PTO4114 Yoke 6 Spline S7-G7 PTO4115 Cross Journal Kit S7-G7 PTO4054 Outer Tube Yoke PTO4117 Flexible Roll Pin 10x75 FAS4146 Outer Cardan Drive Tube PTO4024...
  • Page 37: Bondioli & Pavesi Wide Angle Front Pto Shaft Option

    BONDIOLI & PAVESI WIDE ANGLE FRONT PTO SHAFT OPTION Description Part No. PTO Shaft Complete Titan 10 & 12 Wide Angle PTO8037 Ball Collar Kit 1-3/8” GO-RT PTO4158 Yoke 6 Spline S6/1R6 PTO4154 Cross Journal Kit Wide Angle PTO4073 Central Body PTO4156 Outer Tube Yoke PTO4155...
  • Page 38: Slurry Door Option

    RS4220 (Comprising All Items) Slurry Door WA RS4221 Cylinder Pin Slurry Door RS4522 Spring Tension Pin 8 x 40 FAS4131S Slurry Door Ram Teagle CYL1209 Rear Seal 490mm RS3032 Rear Seal Stiffener 130mm RS3033 Rubber Seal Clamp Strip RS4523 Bolt M8 x 45...
  • Page 39: Slurry Door Hydraulic Cylinder Components

    Setscrew M8 x 35 FAS2631P Quick Release Coupling Male HYD1901 Bonded Seal 1/2” BSP HYD4204 Hydraulic Hose 3/8” Titan 6 HYD2722 Hydraulic Hose 3/8” Titan 8 HYD2717 Hydraulic Hose 3/8” Titan 9 HYD2717 SLURRY DOOR HYDRAULIC CYLINDER COMPONENTS Ref Description Part No.
  • Page 40: Electronic Bed Speed Control Option

    ELECTRONIC BED SPEED CONTROL OPTION A - Connection To Bed Chain Motor Supply Hose B - Connection To Bed Chain Motor Return Hose C - Pressure (Supply) Hose From Tractor D - Return Hose To Tractor Ref Description Part Number Qty Associated Parts Part Number Qty KIT Electronic Speed Control...
  • Page 41: Greedy Boards Option Titan 6

    GREEDY BOARDS OPTION TITAN 6 Ref Description Part Number Qty Associated Parts Part Number Qty KIT Greedy Boards 6 RS4210 Greedy Board WA RS4211 Setscrew M12 x 30 FAS2678P Plain Washer M12 FAS2345P Locknut M12 FAS2334 GREEDY BOARDS OPTION TITANS 8 & 9...
  • Page 42: Poultry Muck Paddles Option

    POULTRY MUCK PADDLES OPTION Ref Description Part Number Qty Associated Parts Part Number Qty KIT Poultry Manure Paddles RS3079 (Comprising All Items) Poultry Manure Paddle RS3069 Bolt M16 x 45 FAS9704P Locknut All Metal M16 FAS2321 The poultry muck paddles are designed to replace the standard rotor tips on the lowest five positions on the spirals of each rotor.
  • Page 43: Wiring Diagram - Lights & Tractor Lead

    WIRING DIAGRAM - LIGHTS WIRING DIAGRAM - TRACTOR LEAD...
