USER GUIDE AND SPECIFICATIONS
NI WSN-3226
NI Wireless Sensor Network 4-Channel, 20-Bit Voltage/RTD Node
This user guide describes how to use the NI WSN-3226 voltage/RTD node and lists its specifications.
Figure 1 shows the NI WSN system components.
1
1
NI WSN-32xx Nodes
2
NI 9792 WSN Real-Time Gateway
The NI WSN-3226 is a four-channel, low-power, wireless voltage/resistance device that works with
other NI WSN-32xx nodes and gateways to form a wireless sensor network. The NI WSN system
consists of one or more NI WSN gateways, up to 36 NI WSN-32xx nodes per gateway, and multiple PCs
or Programmable Automation Controllers (PACs) to receive and analyze the distributed sensor data. For
more information about PACs, visit
When you connect the NI WSN gateway, you can use a separate host PC running Windows, or a PAC
running NI LabVIEW Real-Time, to display measurement results, status information, and to change the
NI WSN gateway and NI WSN-3226 device settings.
2
Or
1
3
NI WSN-9791 Ethernet Gateway
4
PC Running NI Software

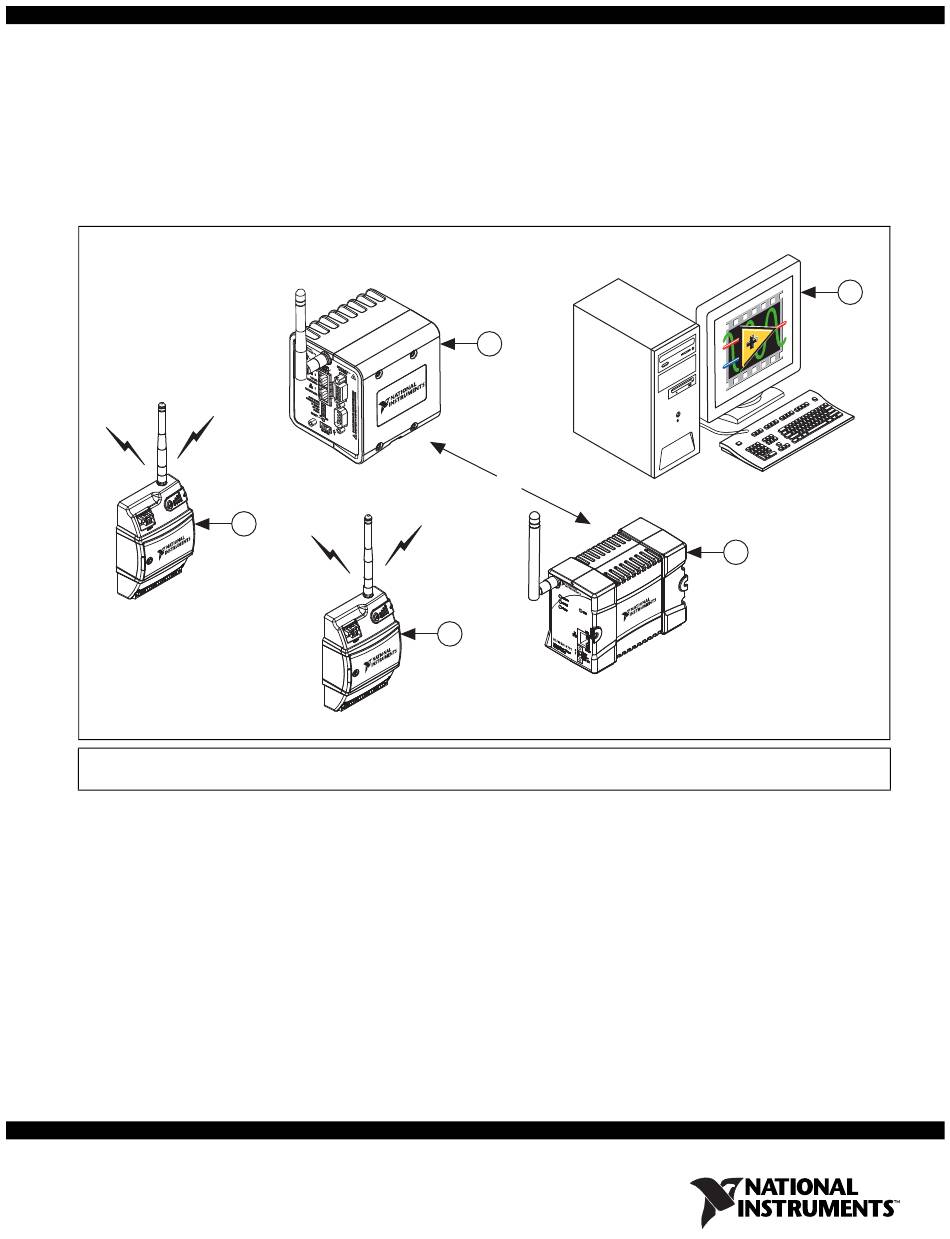

Figure 1. NI WSN System Components
.
ni.com
4
3
Advertisement
Table of Contents
Related Manuals for National Instruments WSN-3226
Summary of Contents for National Instruments WSN-3226
- Page 1 USER GUIDE AND SPECIFICATIONS NI WSN-3226 NI Wireless Sensor Network 4-Channel, 20-Bit Voltage/RTD Node This user guide describes how to use the NI WSN-3226 voltage/RTD node and lists its specifications. Figure 1 shows the NI WSN system components. NI WSN-32xx Nodes...
-
Page 2: Safety Guidelines
(2.00 in.) Figure 2. NI WSN-3226 Device Dimensions Safety Guidelines Operate the NI WSN-3226 device only as described in this user guide. Hot Surface This icon denotes that the component may be hot. Touching this component may result in bodily injury. -
Page 3: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The NI WSN-3226 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nC IIC T4 and Ex nL IIC T4 hazardous locations; and nonhazardous locations only. -
Page 4: Related Documentation
NI WSN-9791 Ethernet Gateway User Guide and Specifications • NI 9792 WSN Real-Time Gateway User Guide and Specifications • Configuring WSN in MAX, available from Start»All Programs»National Instruments»NI-WSN • LabVIEW Help for WSN Devices, available in LabVIEW from Help»LV Help» WSN Devices Help •... -
Page 5: What You Need To Get Started
To set up and use NI LabVIEW with the NI WSN-3226 device, you need the following: • NI WSN gateway • NI WSN-3226 device(s) with a 5–30 V power supply or four alkaline or lithium AA 1.5 V batteries for each node. Refer to the Battery Power section for recommended battery types. - Page 6 Figure 3. Attach the Antenna to the Device Mounting the NI WSN-3226 Device You can mount the NI WSN-3226 on a panel or on a 35 mm DIN rail. For kit accessory ordering information, refer to the NI WSN product page accessory section at .
- Page 7 DIN Rail Clip (Without Device) DIN Rail Figure 5. DIN Rail Clip Installation Press down firmly on the NI WSN-3226 to compress the spring until the clip locks into place on the DIN rail. © National Instruments Corporation NI WSN-3226 User Guide and Specifications...
- Page 8 I/O wires. You can use the NI WSN-3280 panel mount accessory to attach the NI WSN-3226 device to a panel or other flat surface. The NI WSN-3281 panel mount accessory also includes a magnetic mount for attaching the NI WSN-3226 device to metallic surfaces.
- Page 9 Mounting Hole Figure 7. Panel Mount Accessory Refer to Figure 7 while completing the following steps to mount the NI WSN-3226 on a panel: (NI WSN-3280) Bolt or screw the panel mount accessory to a panel using five 8-32 or M4 screws.
- Page 10 Slide the retention clip down and tighten the panel mount knob to secure the NI WSN-3226 device as shown in Figure 8. NATIONAL NATIONAL INSTRUMENTS INSTRUMENTS Figure 8. Slide Retention Clip Down and Tighten Panel Mount Knob (Optional) Secure any I/O signal or power supply cabling to the panel mount accessory using a zip-tie and the integrated strain relief slots.
-
Page 11: Installing The Software
Using the Integrated Panel Mount Slots You can also mount the NI WSN-3226 to a panel using the integrated panel mount slots as shown in Figure 9. Attach three number 8 or M4 pan head screws in the mounting panel, leaving 0.1 in. space under the head of each screw. -
Page 12: Installing Batteries
Powering the NI WSN-3226 Device The NI WSN-3226 device can be powered by either an external power supply or four AA alkaline or lithium batteries. Refer to the Specifications section for details about the input power and battery requirements. If both battery and external power are connected, the NI WSN-3226 functions from the external power input. - Page 13 Reinstall the 2-position mini-combicon plug in the device and tighten the retaining screws. Caution You must use a UL Listed ITE power supply marked LPS with the NI WSN-3226. The power supply must also meet any safety and compliance requirements for the country of use.
-
Page 14: Device Interface
Device Interface Figure 12 shows the NI WSN-3226 device interface. Antenna I/O Connector WSN Connect Button Reset Button Signal Strength/Status LEDs Pro2 Port (Reserved for Future Use) User LED 5–30 V External Power Input Battery Slots/Polarity Indicators Figure 12. NI WSN-3226 Node Interface NI WSN-3226 User Guide and Specifications ni.com... - Page 15 Signal Strength/Status LED Indicators The NI WSN-3226 has four signal strength/status LED indicators, which flash twice before displaying signal strength information. Table 1 shows the status and signal strength LED patterns. Table 1. Signal Strength and Status LED State/Node Status...
-
Page 16: Reset Button
Refer to your NI WSN gateway documentation for detailed instructions about how to connect a NI WSN-3226 to the NI WSN gateway. The NI WSN-3226 is equipped with a WSN connect button as shown in Figure 12. The button controls network connection and the LEDs, which display connection status. - Page 17 In voltage mode, the NI WSN-3226 supports single-ended DC measurements. Each channel has an AI and a COM terminal to which you can connect a voltage signal. Figure 13 shows the NI WSN-3226 input circuitry in voltage mode. To measure a voltage signal, connect the positive lead to the AI terminal, and the ground lead to the adjacent COM terminal.
- Page 18 Figure 16 shows an example of connecting a RTD to the NI WSN-3226. NI WSN-3226 Figure 16. Connecting a RTD The NI WSN-3226 sources different current levels on the EX terminal depending on the selected range. For more information about the current source value for each range, refer to the Specifications section.
- Page 19 A, B, C are coefficients given in Table 3 Table 3 lists the coefficients used in this equation for the TCR values that the NI WSN-3226 supports. If you have a nonstandard RTD that does not match one of these linearization curves, measure the RTD in the resistance mode of NI WSN-3226, and convert the resistance to temperature in the manner suggested by the RTD vendor.
- Page 20 Use the Node Properties dialog box in the LabVIEW Project Explorer window to change DIO settings. The NI WSN-3226 device has two bi-directional digital I/O channels. Each channel supports eight operational modes depending on whether the channel is configured as digital output or digital input.
- Page 21 You can connect only one external DIO PWR supply to the NI WSN-3226. The power supply provides the current for the devices you connect to the NI WSN-3226. Connect the power supply positive lead to DIO PWR terminal and the power supply negative lead to one of the DGND terminals.
- Page 22 DGND NI WSN-3226 Figure 19. Connecting a Device to the NI WSN-3226 in Drive Low (Sinking) Mode 3V TTL Logic (Open-Collector with Pull-Up) The 3V TTL Logic (Open-Collector with Pull-Up) mode can be used to connect to 3 V and 5 V logic inputs with TTL Logic compatible thresholds.
- Page 23 NI WSN-3226 Figure 21. Connecting a Device to the NI WSN-3226 in Drive High and Low Mode Connecting Digital Inputs You can connect a variety of sensors, switches, and industrial devices to the NI WSN-3226 device. Refer to the Specifications section to ensure compatibility.
- Page 24 1 to the channel and then reading a logical 1 from it. Powering an External Sensor The NI WSN-3226 can provide up to 50 mA at 12 V to external sensors through its sensor power (SEN PWR 12V) terminal. You can configure this sensor power output using NI-WSN software to turn on a sensor up to 250 ms prior to the start of an acquisition.
-
Page 25: Analog Input Characteristics
Minimum sample interval ........1 s ADC resolution ............Up to 20 bits DNL ...............No missing codes guaranteed Modes (configurable per channel) ......Voltage, 3-wire RTD/resistance Powerline filtering modes ........50 Hz, 60 Hz, 50/60 Hz, none NI WSN-3226 User Guide and Specifications ni.com... - Page 26 –200 °C to 150 °C 0.1 °C 0.7 °C 0.005 °C/°C 0.01 °C 150 °C to 850 °C 0.2 °C 2 °C 0.013 °C/°C Up to 5 m of 22 AWG copper leads, 5% lead length mismatch. NI WSN-3226 User Guide and Specifications ni.com...
-
Page 27: Sensor Power
Power-on output state..........High impedance DIO pin capacitance..........2000 pF Digital Input Modes (configurable per channel) ......24V Sinking, 24V Sinking with Power Management, Logic, Contact Closure Input voltage range ..........0 to 30 VDC maximum © National Instruments Corporation NI WSN-3226 User Guide and Specifications... - Page 28 Reversed voltage ..........None Short circuit (sourcing) Trip current ..........0.26 A minimum, 1.2 A maximum Trip time..........<250 μs, at 1.2 A Overcurrent (sinking)........6.5 A maximum DO propagation delay Sinking ............150 μs Sourcing ............2.5 ms NI WSN-3226 User Guide and Specifications ni.com...
-
Page 29: Wireless Characteristics
Energizer E91..........–18 °C to 55 °C Duracell MN1500 ..........–20 °C to 54 °C Voltage range ............3.6 to 7.5 V Due to regulations, the frequency bands depend upon country of operation. © National Instruments Corporation NI WSN-3226 User Guide and Specifications... -
Page 30: Physical Characteristics
External Power Caution You must use a UL Listed ITE power supply marked LPS with the NI WSN-3226. The power supply must also meet any safety and compliance requirements for the country of use. Voltage range ............5 to 30 V Power input mating connector .......2-position mini-combicon,... - Page 31 (IEC-60068-2-1 and IEC-60068-2-2) ....–40 to 85 °C Operating humidity (IEC-60068-2-56) ....10 to 90% RH, noncondensing Storage humidity (IEC-60068-2-56)......5 to 95% RH, noncondensing Pollution Degree (IEC 60664) .......2 Maximum altitude..........2,000 m Indoor use only © National Instruments Corporation NI WSN-3226 User Guide and Specifications...
-
Page 32: Shock And Vibration
This product meets the essential requirements of applicable European Directives, as amended for CE marking, as follows: • 2006/95/EC; Low-Voltage Directive (safety) • 2004/108/EC; Electromagnetic Compatibility (EMC) Directive • 1999/5/EC; Radio and Telecommunications Terminal Equipment (R&TTE) Directive NI WSN-3226 User Guide and Specifications ni.com... -
Page 33: Regulatory Information
Verificare con i rivenditori la procedura da seguire. Nederland: License required for outdoor installations. Check with reseller for procedure to follow. Licentie verplicht voor gebruik met buitenantennes. Neem contact op met verkoper voor juiste procedure. © National Instruments Corporation NI WSN-3226 User Guide and Specifications... - Page 34 Hereby, National Instruments, declares that this NI WSN-3226 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente National Instruments declara que el NI WSN-3226 cumple con [Spanish] los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
-
Page 35: Online Product Certification
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Íslenska Hér með lýsir National Instruments yfir því að NI WSN-3226 er í samræmi við grunnkröfur [Icelandic] og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. Norsk National Instruments erklærer herved at utstyret NI WSN-3226 er i samsvar med de... -
Page 36: Where To Go For Support
National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs. For telephone support in the United States, create your service request at ni.com/...
