Tools / Accessories; Installation Instructions - REMIS REMITop Vario II Replacing Instructions

Tools / Accessories

For replacing the hood, you need the following tools:
- 1x Plastic side cutters
- 1x long-nosed pliers
The set comes with the following accessories:
- For the hood in 400x400:
- For the hood in 700x500 and 900x600:

Installation instructions

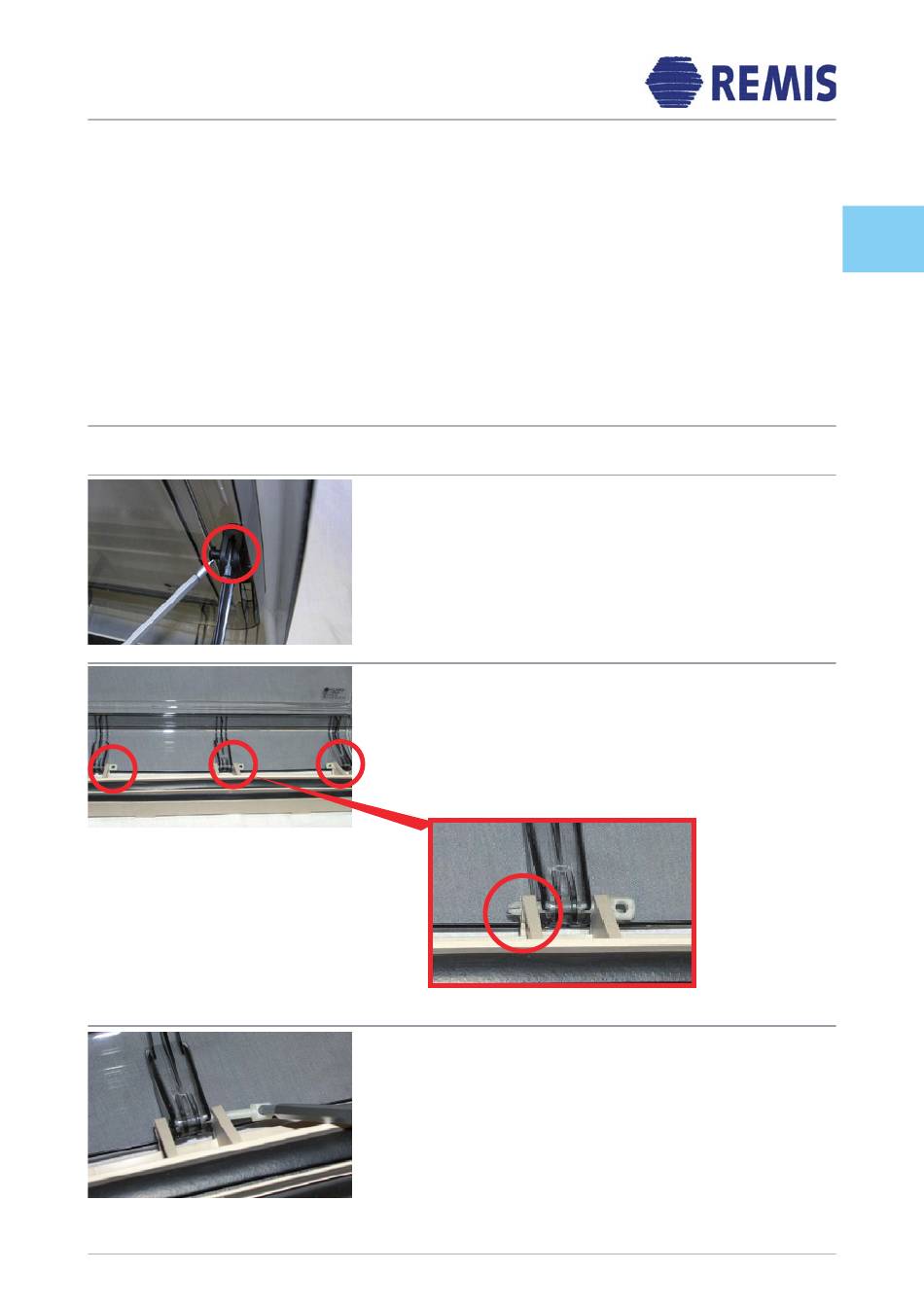

B1
B1
B2
B2
B3
B3
1x hood 400x400
1x canopy bolts
3x hinge pins
1x hood 700x500 (or 900x600,
respectively)
2x canopy bolts
4x hinge pins
B1:
Open the hood until the lifting devices have reached
their end position. Remove all canopy bolts by
cutting off the harpoon-shaped head using the
plastic side cutter, and pull the rest of the bolt out
using long-nosed pliers or a small screwdriver.
B2:
Open the hood completely. Remove only the hinge
pins. Push the harpoon-shaped head together using
long-nosed pliers and push the bolt through the
hole.
B3:
Pull the bolt out of the hole using long-nosed pliers
or a small screwdriver.
Replace the hood and assemble everything in
reversed order. Make sure you use the new
hinge pins, even when the old ones have not
been damaged during disassembly.
US/GB
3/8
