JVC TH-D227B Quick Start Manual

Quick Start Guide

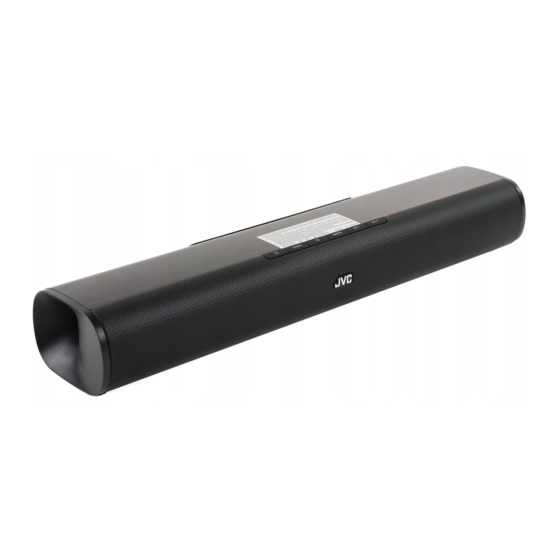

Compact Soundbar
TH-D227B
Thank you
for purchasing your new product.
We recommend that you spend some time reading this Quick Start
Guide in order that you fully understand how to connect your
Soundbar to your TV.
Use your Soundbar instruction manual and TV instruction manual to
choose the best way to connect your Soundbar and TV together.
•
Unpacking
Remove all packaging from the unit. Retain the packaging. If you
dispose of it please do so according to any local regulations.
To get the most from this product, you may need to buy an
Optical cable.
Main Unit Mains Cable
Remote Control Coaxial Cable
(battery included) 3.5 mm to 3.5 mm
Stereo Audio Cable
Wall Bracket × 2
Instruction Manual
Screw × 4
Quick Start Guide
Dowel × 4
•
Soundbar Sockets Overview
1
2
3
1. COAXIAL Socket 4. AUDIO IN Socket
2. AC~Power Socket 5. SERVICE ONLY Socket
3. OPTICAL Socket
•
Operating Your Remote Control
Remove the Plastic Strip from the Remote Control
The unit has a pre-installed
lithium CR2025 battery. Remove
the protective tab to activate the
remote control battery.
Battery Replacement for the Remote Control
1. Gently push the tab of the battery tray in and slide it free
from the remote control.
2. Replace with a new
battery
3. Slide the battery tray back into the remote
control.
4
5
Install the battery correctly in the battery compartment. Normally the battery's
positive polarity (+) will face up.
•
Connecting Your Soundbar to the TV
Ensure the unit is disconnected from the mains socket before connecting it to other devices.
Connecting to the TV
Method 1: OPTICAL / COAXIAL Connection
Use an optical cable (not included) / coaxial cable (included) to connect the soundbar's OPTICAL / COAXIAL socket to the OPTICAL OUT /
COAXIAL OUT socket of the external device. The simplest option is to connect your soundbar directly to your TV. If you connect the soundbar
to another external device (e.g. Blu-Ray player), you will hear the sound from that device through the soundbar.
After the connection is completed,
1. Press on the unit or remote control to switch on the unit.
2. Press SOURCE repeatedly to select Optical or Coaxial mode.
Rear View of the Soundbar
Coaxial cable (included)
Set-top Box
Blu-ray Player / DVD Satellite Receiver
Player / Recorder
The unit may not be able to decode all digital audio formats from the input source. In this case, the Optical/Coaxial indicator will flash in white/orange, and the unit
will prompt "Unsupported format, please refer to the Instruction Book". This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game
console, DVD player, etc.) is set to PCM (Refer to the user manual of the input source device for its audio setting details) with Optical/Coaxial input.
DO NOT connect the soundbar to the TV through its Yellow/Red/White sockets. "
Or Optical cable (not included)
TV
Game Console Video Camera
