- Page 1 ROWER MACHINE IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. 2636.7-060920...
- Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com...
-
Page 3: Table Of Contents
TABLE OF CONTENT SERVICE ------------------------------------------------------------------------ LABEL PLACEMENT---------------------------------------------------------- IMPORTANT SAFETY GUIDELINES ------------------------------------ OVERVIEW DRAWING ------------------------------------------------------ PARTS LIST --------------------------------------------------------------------- HARDWARE PACK------------------------------------------------------------- ASSEMBLY ---------------------------------------------------------------------- CONSOLE ----------------------------------------------------------------------- WORKOUT----------------------------------------------------------------------- ADJUSTMENTS & TRANSPORTING------------------------------------ STORAGE ---------------------------------------------------------------------- TROUBLESHOOTING & MAINTENANCE------------------------------ WARRANTY -------------------------------------------------------------------- PARTS REQUEST FORM---------------------------------------------------... -
Page 4: Service
SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:... -
Page 5: Label Placement
LABEL PLACEMENT... -
Page 6: Important Safety Guidelines
IMPORTANT SAFETY GUIDELINES Read all instructions before using the Rower. Basic precautions should always be followed. WARNING - To reduce the risk of injury to persons, read the following: Be sure all screws, nuts, and bolts are tightened prior to use. Before using this equipment, we recommend doing warm ups. -
Page 7: Overview Drawing
OVERVIEW DRAWING... -
Page 8: Parts List
PARTS LIST Description Description Main Frame 31 Front Stabilizer End Cap Slide Tube 32 Wire Plug Front Stabilizer 33 Rear Stabilizer End Cap Rear Stabilizer 34 Rubber Pad Handlebar 35 Handlebar End Cap Left Seat Plate 36 Foam Grip Right Seat Plate 37 Braid Seat Bracket 38 Seat... - Page 9 PARTS LIST Description Description 61 Pedal Post M6*140 76 Flywheel Ø176 62 Socket Phillips Screw M6*10 77 Hex Nut M10×1.0 63 Flat Washer OD13×ID6.5×1.5 78 Flange NutM10×1.0 Self-Tapping Phillips 64 Bushing Ф18*Ф13*26 ScrewST4.0*19 65 Round Head Hex Bolt M8*45, 80 One direction BearingHR1712 66 Wheel Ф50*35 81 Round Head Hex BoltM8×20, 67 Bearing 608ZZ...
-
Page 10: Hardware Pack
HARDWARE & TOOLS PACK... -
Page 11: Assembly
ASSEMBLY IMPORTANT!!! Fig. A Tool: 5mm Allen Wrench with Phillips Screwdriver Step 1 1A. Installing the Seat Slide the Seat (38) onto the Sliding Tube (2). Make sure Magnet (69) and Sensor (41) are on the same side when installing the Seat (38). SEE Fig. A. Attach the Rubber Pad (34) onto the underside of the Sliding Tube (2) with two Socket Phillips Screws (62). - Page 12 ASSEMBLY Tool: 6mm Allen Wrench 1PC Step 2 2A. Installing the Rear Stabilizer Attach the Rear Stabilizer (4) onto the underside of the Sliding Tube (2) with four Flat Washers (55), four Spring Washers (52), and four Round Head Hex Bolts (81). Tighten using the 6mm Allen Wrench provided.
- Page 13 ASSEMBLY Tool: 5mm Allen Wrench with Phillips Screwdriver Step 3 3A. Installing the Front Stabilizer Attach the Front Stabilizer (3) onto the Main Frame (1) with two Flat Washers (55), and two Round Head Hex Bolts (65). Tight using the 5 mm Allen Wrench with Phillips Screwdriver provided.
- Page 14 ASSEMBLY Tool: Open Wrench 1PC Step 4 4A. Installing the Pedals Attach one Hex Bolt (50) into the LOW bolt hole on the left side of the Main Frame (1). Tighten using the Open Wrench provided. Slide one Hex Bolt (50) through the center of the Pedal (12), then slide a Bushing (64) onto the end of that Hex Bolt (50).
- Page 15 ASSEMBLY Tool: 5mm Allen Wrench with FIG. A Phillips Screwdriver 1PC 6mm Allen Wrench FIG. B IMPORTANT Step 5 5A. Installing the Seat Sliding Tube Guide the Sensor Wire (41) through the bracket (as shown in Fig. B) while you angle the Sliding Tube (2) to insert it into the bracket of the Main Frame (1).
- Page 16 ASSEMBLY Tool: Open Wrench 1PC Step 6 Lorem ipsum 6A. Installing the Console Batteries To help remove the console you may want to use the wrench to pry the console clip up using the Open Wrench to unclip it. BECAREFUL when pulling the console out, There are wires connecting the console to the internal speed sensor.
-
Page 17: Console
CONSOLE USING THE CONSOLE Power On: The console will turn on when the user starts rowing or presses the mode button. Power Off: The console will automatically turn off after 20 minutes of inactivity. Reset: Press and hold the MODE button for 3 seconds to reset the console. -
Page 18: Workout
WORKOUT The Images below show the workouts that one can do while on the rowing machines. Always have your feet secure placed on the foot platform at the front of the machine or strapped to the foot pedals when working out. ... -
Page 19: Adjustments & Transporting
ADJUSTMENTS & TRANSPORTING Lorem ipsum If the seat does not slide easily, or the seat shakes too much, adjust the Nylon Nut (58). Lorem ipsum If the frame is shaking while in use, extend the foot on the Rear Stabilizer End Caps (33) to balance the frame. -
Page 20: Storage
STORAGE Remove the Safety Pin (47), the Round Knob (44) and Flat Washer (45) from the Sliding Tube (2) and the Main Frame (1). Lift up the Sliding Tube (2) and insert the Safety Pin (47) to lock the Sliding Tube (2) in the upright position. - Page 21 MAINTENANCE & TROUBLE SHOOTING CLEANING The rower can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on the plastic parts. Please wipe your perspiration off the rower after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or the electronics to fail.
-
Page 22: Warranty
WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. -
Page 23: Parts Request Form
PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:______________________________________________________________________ ADDRESS:__________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:________________________ TELEPHONE: (Day)_________________________________________________________ (Night)________________________________________________________ SERIAL#:____________________________________________________________________ MODEL#:____________________________________________________________________ PURCHASE DATE:____________________________________________________________ PLACE OF PURCHASE:________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” *This form can also be faxed to #: 626-810-2166...
Need help?
Do you have a question about the 2636 and is the answer not in the manual?
Questions and answers

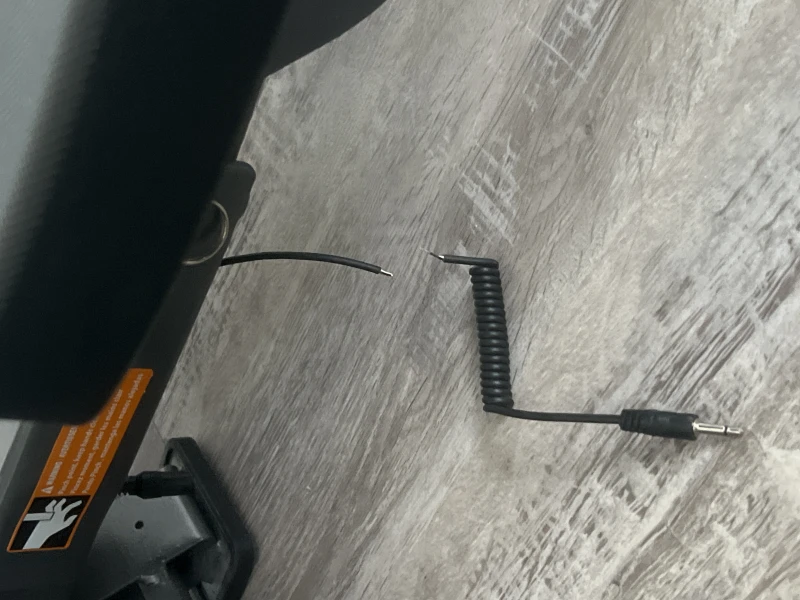

Hello, the sensor wire got cut from moving. Is there a way to have it fixed? Thank you.
If the sensor wire is damaged, such as having pinched or smashed points, it may need to be replaced. There is no mention of a repair process, only inspection and replacement if damage is found.
This answer is automatically generated
@Ella Buenaventura Did you figure out how to do this?
I bought a second hand machine and it doesn’t have the power cord. Can I order one?

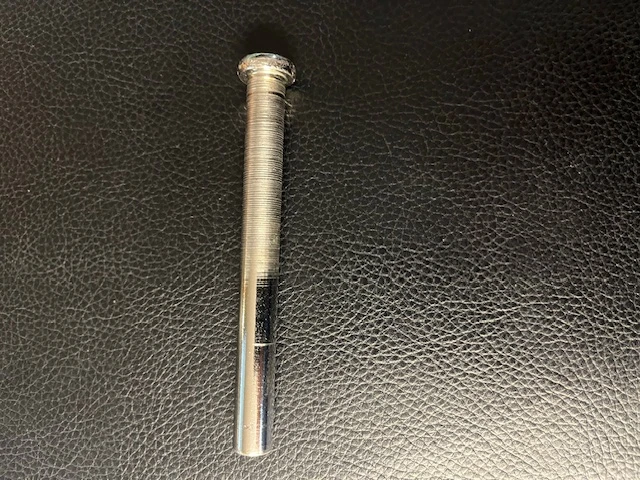

How do I order the Hex Bolt (46) and Hex Bolt RoundHead (57) as replacment parts for my Fitness Reality Rowing Machine- Model 2636?
I need to order replacement parts - Hex Bolt for Reality Fitness Rowing Machine. How do I order?

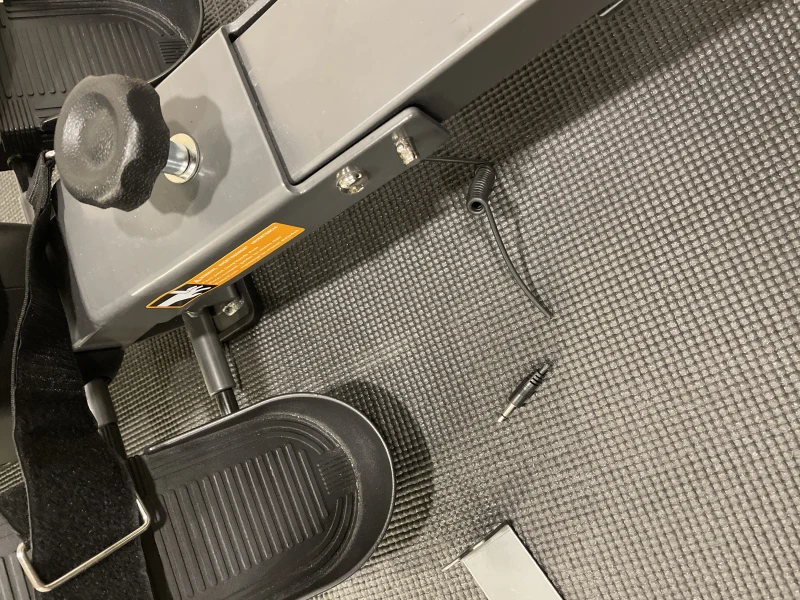

Hi. My part 41 sensor plug got cut somehow my my movers when we moved. How much would a replacement part cost?
I need a replacement for the battery compartment (mycloudfitness) on my reity fitness rowing machine. The springs that hold the batteries have corroded and broke off. My rowing machine screen won't come on.
I need to replace the console (my cloud fitness for the reality fitness rower). Cannot find it online. The battery cage is corroded beyond cleaning. Everything else on the machine is fine, but we don't really care to use it without the console
Where can I buy a new console part #85. The part that holds the batteries.
