Argos 902/0469 Installation And Safety Instructions

These instructions are for your safety. Please read them through thoroughly
before use and retain for future reference.

Siting Instructions

This product has special protection against the ingress of moisture and is IP44 rated.

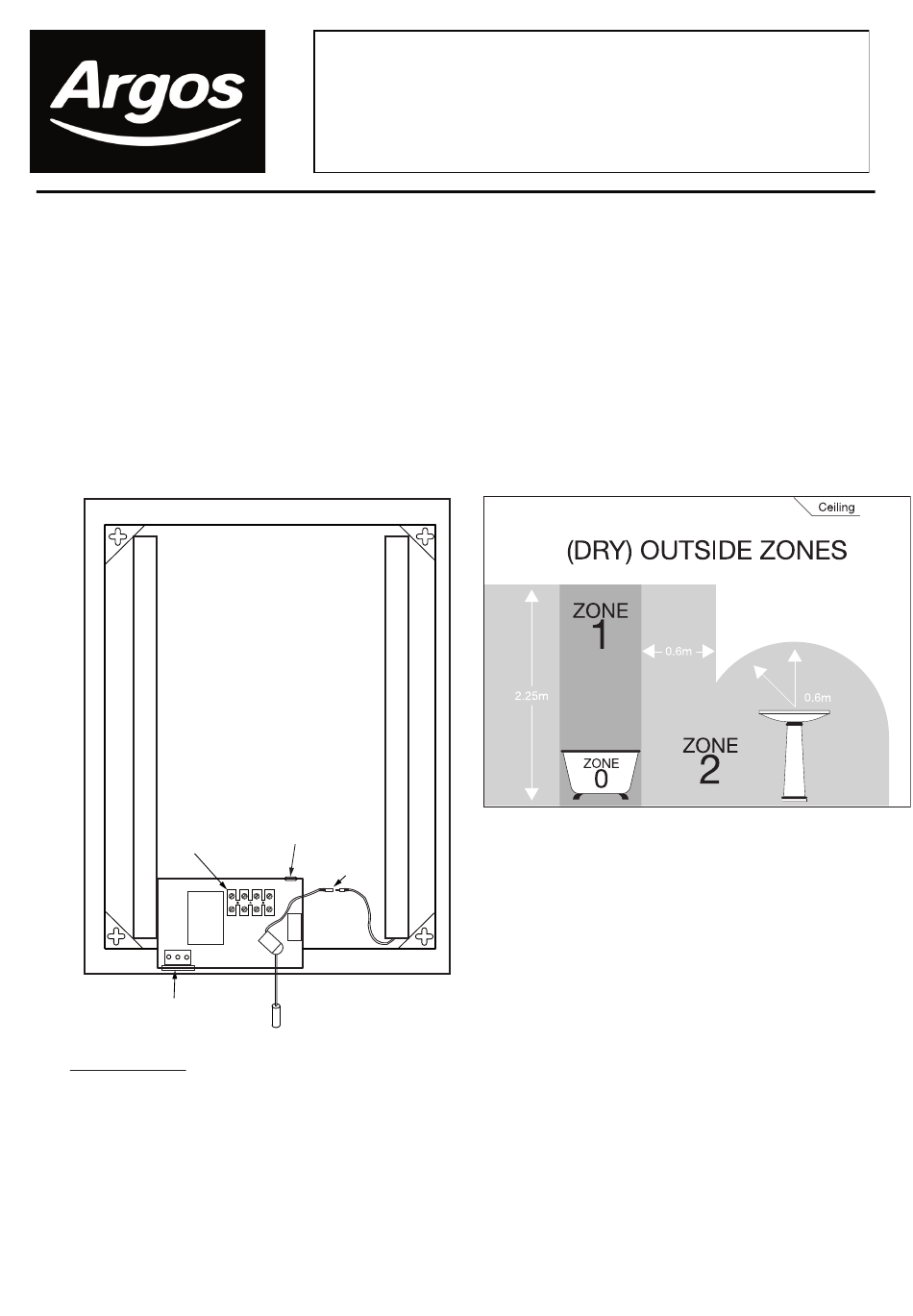

This product is only suitable for use in Zone 2 and outside Zones of a bathroom. See diagram below.
The chosen location should allow for the product to be securely mounted.
(e.g. to a stud wall framework) and safely connected to a mains supply (lighting circuit).
If this product is being fitted in a bathroom a 30mA RCD must be used in accordance with current
regulations. Ensure the switch and drain hole are located at the bottom of the product when mounting
to the wall. This ensures that any moisture that gets inside the product can drain away safely.
The product should not be situated where the shaver socket is likely to be splashed.
Terminal Block
Shaver Socket

Installation

1. IMPORTANT. Always switch off the electricity supply at the mains during installation and
maintenance. We recommend that the fuse is withdrawn or circuit breaker switched off at the
distribution board whilst work is in progress.
2. This mirror fixes to the wall by locating the keyhole shaped slots over the mounting screws
in the wall. It is important to get the screw positions correct to ensure easy and secure fitting.
3. Measure the distance between the hole centres on the fixing lugs. Mark the positions of the
screw holes on the wall. Check for concealed pipes and wiring before drilling.
Use suitable drill bits for masonry and ceramic tiles.
4. Supplied wall plugs are for solid walls only. For all other wall types ensure correct fixings are
used. Fit appropriate wall fixings and fit supplied screws. Screw heads must protrude approx 3-
5mm from the wall to enable lugs to fit over adequately.
Installation and Safety Instructions
Mosaic 26lt LED bathroom mirror
with shaver socket.
Cable inlet grommet
LED Jack Socket
902/0469
