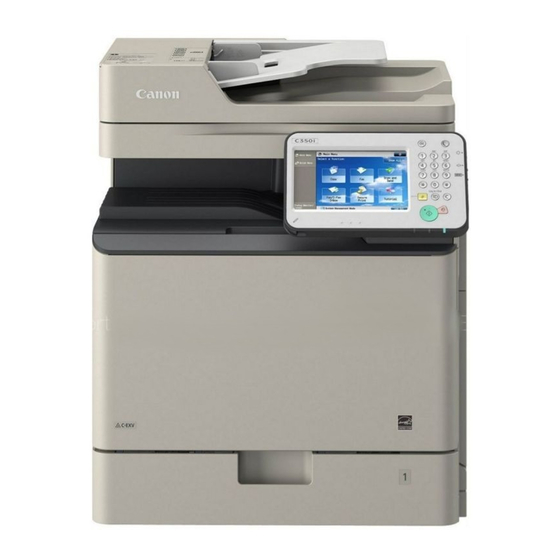

Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok
Not Sure How to Load Paper or Replace the
Toner?
This category describes the procedures for loading and replacing consumables, and methods for cleaning
the machine.
High quality copying, scanning, and printing can be maintained through these simple day-to-day tasks.
Loading Paper
Loading Paper into a Paper Drawer
Replacing Consumables
Replacing the Staple Cartridge (Staple Finisher-S1)
Replacing the Toner Cartridge
Replacing the Waste Toner Container
Consumables
Routine Maintenance
Routine Cleaning
Sida 1 av 42
Maintenance
2015-05-11
Advertisement
Table of Contents
Related Manuals for Canon imageRUNNER ADVANCE C351iF
Summary of Contents for Canon imageRUNNER ADVANCE C351iF
- Page 1 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 1 av 42 Maintenance Not Sure How to Load Paper or Replace the Toner? This category describes the procedures for loading and replacing consumables, and methods for cleaning the machine. High quality copying, scanning, and printing can be maintained through these simple day-to-day tasks.
-
Page 2: Loading Paper
Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 2 av 42 Loading Paper This section describes how to load paper. Loading Paper into a Paper Drawer Loading Pre-Punched Paper Loading Transparencies 2015-05-11... -
Page 3: Loading Paper Into A Paper Drawer
Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 3 av 42 Loading Paper into a Paper Drawer When loading paper into the paper drawer for the first time, or when a message is displayed on the touch panel display prompting you to load paper, follow the procedure below. - Page 4 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 4 av 42 When loading paper into the paper drawer for the first time, or when changing the paper size, adjust the position of the paper drawer guides. 1.Slide the left guide while squeezing it on the top to align it with the mark for the desired paper size.
- Page 5 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 5 av 42 NOTE For high-quality printouts, use paper recommended by Canon. Before loading paper, always fan the sheets several times, and align the edges to facilitate feeding. Load the paper stack into the paper drawer.
- Page 6 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 6 av 42 NOTE If you print on the paper which has absorbed moisture, steam may come out from the output area of the machine. This is because the moist on the paper evaporates when the high temperature is applied when a toner is fixed to the paper.
-
Page 7: Loading Envelopes
Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 7 av 42 Loading Envelopes Envelopes can be loaded into Paper Drawer 1 and the multi-purpose tray. For information on envelopes that can be loaded, see "Tillåtet pappersmaterial." For instructions on loading envelopes into the multi- purpose tray, see "Fylla på... - Page 8 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 8 av 42 (2)Remove the Envelope Feeder Attachment stored inside the paper drawer. Attach the Envelope Feeder Attachment by aligning the protruding areas of the Envelope Feeder Attachment with the holes on the paper drawer.
- Page 9 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 9 av 42 Place the envelopes on a clean, level surface, and press all the way around the envelopes by hand, in the direction of the arrows, to remove any curls. Repeat this step five times for each set of five envelopes.
- Page 10 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 10 av 42 Loading Envelopes This section explains how to load envelopes into Paper Drawer 1. IMPORTANT Make sure that you change the envelope settings from the Settings/Registration screen before carrying out the following procedure.
- Page 11 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 11 av 42 2. While loading the envelopes, press down on the right side of the receptacle to lock them into place. Align the leading edges of the envelopes, and make sure that they are held in place under the claws.
- Page 12 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 12 av 42 CAUTION When returning the paper drawer to its original position, be careful not to get your fingers caught, as this may result in personal injury. IMPORTANT Never place paper or any other items in the empty part of the paper drawer next to the envelopes. Doing so may cause paper jams.
-
Page 13: Loading Pre-Punched Paper
Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 13 av 42 Loading Pre-Punched Paper You can load pre-punched paper in a paper drawer or the multi-purpose tray. When loading pre-punched paper, take note of the orientation of the binding holes and the image. -
Page 14: Loading Transparencies
Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 14 av 42 Loading Transparencies You can load transparencies in the multi-purpose tray. Transparencies have a front and back side. Load transparencies correctly to achieve sharp printing results. The side facing down is the one printed on. -
Page 15: Replacement Parts
Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 15 av 42 Replacement Parts This section describes those parts that require replacement and their model numbers. Use a replacement part after checking its model number. Name Model Number References 1. Waste Toner WT-201... - Page 16 NOTE The Staple Finisher-S1 is an optional product. We recommend that you order staple cartridges from your local authorized Canon dealer before your stock runs out. Use only staple cases intended for use with this machine.
- Page 17 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 17 av 42 NOTE You can lift the staple cartridge only when no staples are left inside the cartridge. Insert a new staple cartridge into the staple case. IMPORTANT Use only staple cartridges designed for use with this machine.
- Page 18 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 18 av 42 NOTE After the cover is closed, the stapler unit may automatically perform a "dry" stapling operation to reposition the staples. 2015-05-11...
-
Page 19: Replacing The Toner Cartridge
IMPORTANT Use only toner cartridges intended for use with this machine. For information on the supported Canon genuine toner, see "Replacement Parts." Do not replace toner cartridges until the message prompting you to do so appears. - Page 20 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 20 av 42 IMPORTANT If you continue copying or printing in black-and-white after cyan, magenta, or yellow toner runs out, do not remove the depleted toner cartridges from the machine. You can set the machine to display a message indicating that the remaining toner is low. (See "Visa...
- Page 21 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 21 av 42 2. Hold the new toner cartridge in both hands as shown in the illustration, and shake it vertically approximately 10 times. IMPORTANT Do not shake the toner cartridge in the direction shown in the illustration.
- Page 22 To continue using the toner cartridge, press [I Agree]. If you select this option, the operation of the machine is not guaranteed. To replace the toner cartridge, press [Cancel]. If you are not sure about the remedies, contact your local authorized Canon dealer from which you purchased the toner cartridge. 2015-05-11...
-
Page 23: Replacing The Waste Toner Container
IMPORTANT Your local authorized Canon dealer will dispose of used waste toner containers. Used toner cannot be reused. Do not mix new and used toner together. - Page 24 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 24 av 42 CAUTION When removing the waste toner container, do not tilt it. If you tilt the waste toner container, toner will spill out. Prepare a new waste toner container, and store the removed waste toner container.
- Page 25 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 25 av 42 CAUTION When closing the front cover of the main unit, be careful not to get your fingers caught, as this may result in personal injury. 2015-05-11...
-
Page 26: Replacing The Drum Unit
Follow the procedure described below to replace the drum unit. IMPORTANT For high-quality printouts, when replacing the drum unit we recommend using a Canon drum unit. Store drum units in a location away from light sources such as direct sunlight. - Page 27 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 27 av 42 IMPORTANT Place the removed waste toner container on a level surface. If the waste toner container is tilted too far, toner may spill out. Pull out the drum unit to replace.
- Page 28 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 28 av 42 IMPORTANT Do not remove the orange protective cover until you insert the drum unit into the machine. Insert the new drum unit. 1. Grip the handle and indented area of the drum unit, and insert the drum unit while aligning the mark on the drum unit with the mark on the slot of the main unit.
- Page 29 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 29 av 42 CAUTION When closing the front cover of the main unit, be careful not to get your fingers caught, as this may result in personal injury. 2015-05-11...
-
Page 30: Routine Cleaning
Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 30 av 42 Routine Cleaning If an original is not copied clearly, clean the platen glass, the underside of the feeder, the document feed scanning area, and the rollers of the feeder. For high-quality printouts, we recommend cleaning these parts once or twice a month. - Page 31 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 31 av 42 Originals Cannot Scanned Properly (Cleaning the Platen Glass) If the platen glass or the underside of the feeder is dirty, the original may not be scanned clearly. Clean the platen glass and the underside of the feeder by following the procedure below.
- Page 32 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 32 av 42 Scanned Originals Become Dirty (Manual Feeder Cleaning) If originals that have been fed through the feeder have streaks or appear dirty, clean the feed rollers. IMPORTANT Spin the rollers while cleaning them.
- Page 33 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 33 av 42 CAUTION When closing the feeder, be careful not to get your fingers caught, as this may result in personal injury. NOTE When the glass cleaning sheet is dirty, rinse it with water and spread it out to let it dry.
- Page 34 Place 10 sheets of blank paper into the feeder → press [Start]. The time it takes to clean the feeder differs depending on the model of the machine you are using. imageRUNNER ADVANCE C351iF/C350i: Approximately 30 seconds imageRUNNER ADVANCE C250i: Approximately 45 seconds Fan the stack of paper well before loading it.
- Page 35 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 35 av 42 Output Paper Becomes Dirty (Cleaning Inside of the Main Unit) If streaks appear on printed output, or random parts of the printed image are missing, the inside of the main unit may be dirty. In this case, perform automatic cleaning of the inside of the main unit.
- Page 36 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 36 av 42 Cleaning the Pressure Roller for Fixing If streaks appear on the printed page, the pressure roller for fixing may be dirty. This mode cleans the pressure roller for fixing by passing the printed cleaning sheet through the machine.
- Page 37 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 37 av 42 Load the cleaning sheet into the multi-purpose tray with the printed side facing up, and the arrow pointing toward the machine. Adjust the multi-purpose tray's settings for the cleaning sheet. Press [Start Cleaning].
- Page 38 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 38 av 42 When White Streaks Appear on Prints (Cleaning the Dust Proof Glass) When white streaks or other print defects occur, the dust proof glass may be dirty. Follow the procedure below to clean the dust proof glass.
- Page 39 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 39 av 42 When you have finished cleaning the dust proof glass, gently push the dust proof glass cleaner back onto the rear side of the front cover of the main unit. Place the dust proof glass cleaner back on the rear side of the front cover of the main unit with its tip facing the left direction.
- Page 40 Consumables The following consumables are available from Canon. For more information, contact your local authorized Canon dealer. We recommend that you order paper stock and toner from your local authorized Canon dealer before your stock runs out. Recommended Paper In addition to plain paper (A4 and A5 sizes), recycled paper, colour paper, transparencies labels, and other types of paper stock are available.
- Page 41 Do not store toner cartridges in an upright position. [Be careful of counterfeit toners] Please be aware that there are counterfeit Canon toners in the marketplace. Use of counterfeit toner may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner.
- Page 42 Canon imageRUNNER ADVANCE C351iF/C350i/C250i e-handbok Sida 42 av 42 2015-05-11...
