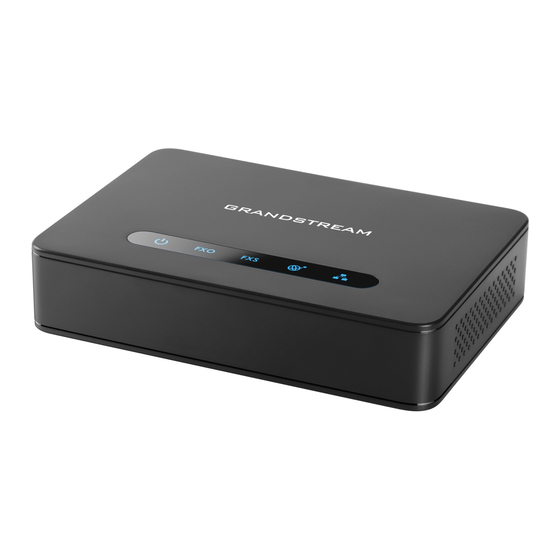

  • Page 1 Grandstream Networks, Inc. Peering IP Phone with HT813...

  • Page 2: Table Of Contents

    GXP IP Phone Configuration ........................3 HT813 Configuration ..........................5 Table of figures Figure 1: Peering IP Phone with HT813 ....................... 3 Figure 2: SIP account Configuration ......................4 Figure 3: Basic Settings ..........................4 Figure 4: Disable Use Random Port ......................5 Figure 5: FXO Port settings...........................

  • Page 3: Overview

    This document describes basic configuration to peer an IP Phone with HT813. This configuration applies to users seeking to add a HT813 not only as a remote extension but also as an external PSTN trunk. The document will demonstrate a scenario where you can set up GXP/GRP series with the HT813.

  • Page 4: Peering Ip Phone With Ht813

    FXO trunks through IP network. In this scenario, we will proceed first from the web GUI of GXP Phone, then on the HT813 in order to configure the Peer Trunk on both sides.

  • Page 5: Figure 2: Sip Account Configuration

    Figure 2: SIP account Configuration Figure 3: Basic Settings P a g e Peering HT813 with an IP Phone...

  • Page 6: Ht813 Configuration

    Always set Random Ports to “No” under Settings → General Settings. Figure 4: Disable Use Random Port HT813 Configuration On the HT813 web GUI, access to “FXO Port”, then set the following: • Primary SIP Server: Set to <IP_address_of_GXPphone>, which is in our case: 192.168.5.171 •...

  • Page 7: Figure 5: Fxo Port Settings

    Figure 5: FXO Port settings P a g e Peering HT813 with an IP Phone...

  • Page 8: Figure 6: Fxo Port Settings

    Stage Method 2 doesn’t apply for peer to peer. It works when registered with a SIP Server. • Always set Random Ports to “No”. On the HT813 web GUI, access to “Basic Settings”, then set the following: • Unconditional Call Forward to VOIP: Must have a User ID (Could be Any).

  • Page 9: Figure 7: Basic Settings Configuration

    5060 is the default listening port for Account1 on GXP2140. • In order for this setup to work, it is extremely important that both the Handy Tone HT813 and the IP phone are located on the same LAN OR have Public Static IPs. In short, the Handy Tones should be able to locate each other.
