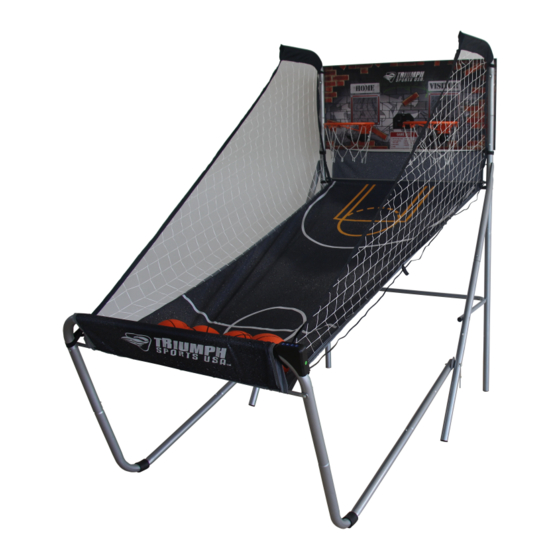

- Page 1 Big Shot 2-Player Basketball Please keep this instruction manual for future reference If you have any problems with your new product, please contact Triumph Sports USA at 1-866-815-4173, or e-mail us at csr@triumphsportsusa.com for any technical support or warranty issues.
- Page 2 Limited 90-Day Triumph Sports USA, Inc. Warranty All Triumph Sports USA, Inc. (TSU) games have a limited 90-day from date of purchase warranty. This warrants the retail purchaser for any TSU game purchased to be free from any defect in materials and construction for 90 days from the date of purchase. The only exceptions to the warranty include main frames, tabletops, playing surfaces, batteries or tools.
- Page 3 Parts List Horizontal Frame Brace U Tube Board L Tube Board Tube Left Tube Right Tube 2pcs 2pcs Left Mounting Right Mounting Ramp Tube Support Tube Ramp L Tube Tube Tube 2pcs 2pcs 2pcs Ball Ramp with Ramp U Tube Horizontal Tube Electronic Scorer Paddle with Sensor...
- Page 4 PRE-INSTALLED PARTS Plastic Pole Plastic Pole Spring Lock insert-A insert-B 2pcs 8pcs 8pcs WARNING: 1) Requires 3 AA Batteries (Not included). 2) Do not mix old and new batteries. 3) Do not mix alkaline, standard (carbon zinc), or rechargeable (nickel-cadmium) batteries. Assembly Instructions Find a clean, level place to begin the assembly of your Basketball Game.
- Page 5 FIG. 3 FIG.3 FIG. 3A FIG.3C Attach the Horizontal Frame Brace U Tube (#5) to the Left Vertical Support Tube (#3) and Right Vertical Support Tube (#4) using Bolts (#26) and Nuts (#27) as shown in FIG. Important: Tubes #2 and #3 when assembled must be attached to the left side of the Horizontal Frame Brace U Tube (#5).
- Page 6 FIG. 5 Attach the Ramp Tubes (#9) to the Left Mounting Tube (#6) and Right Mounting Tube (#8) using Bolts (#32), Washers (#22), Washers (#39), Lock Pin loop (#33) and Nuts (#27) as shown in FIG.5. Now insert the Lock Pins (#33) into the pivot joint to lock the game into playing position.
- Page 7 FIG. 7 Attach the Rim Assemblies FIG.7 (#17) and Rim Support Plates (#18) to the Backboard (#21) using the Bolts (#23), and Nuts (#27). Then attach the Paddle with Sensors (#15) and the Scoring Arm Plates (#35) to the Backboard (#21) using the Bolts (#23), and Nuts (#27) as shown in FIG.
- Page 8 FIG.9 FIG. 9 FIG. 9A & 9B FIG.9B FIG.9A Slide elastic straps and the sleeve of the Ball Ramp with Side Netting (#13) onto the Board L Tubes as shown in FIG. 9A & 9B. FIG.9C FIG. 9C Slide the Front Ramp U Tube (#11) into the upper sleeve of the Ball Return Netting(#13) as...
- Page 9 FIG. 11 Connect the Sensor Wire of Paddle to the Electronic Scorer (#14) as shown in FIG.11. Connect the Control Wire to the Electronic Scorer (#14) as shown in FIG.11 and 11A. This game has a Dual Power feature. You can insert 3 AA Batteries into the battery compartment on the back of the Electronic Scorer (#14) or use the A/C Adaptor when your game is close to a power source.
- Page 10 FIG. 13 To fold the basketball game into the storage position, remove the Lock Pins (#33) from the playing position on the Mounting Tubes (#6) & (#8). Lift the Front Horizontal Ramp Support Tube (#11) until the game is in the storage position as shown in FIG. 13 FIG.13 FIG.
- Page 11 Trouble Shooting: Game won't turn on 1.Make sure switch on scorer is in the on position. 2.Make sure switch paddle wires are in the home and visitor slots on the scorer. 3.Make sure the control box wire is in the control slot on the scorer. 4.Press/hold down the on/off bottom on the scorer for 2 seconds to turn game on.
- Page 12 Horse Press "PLAY" to enter game. Press "UP/Down" to select multiple players (P2/P3/P4). Press "PLAY" after the number of player is selected. Player has to make a shot in 2 seconds. First player is allowed to shoot at any hoop (Home or VISITOR). If first player scores in 2 seconds, no letter is given.
