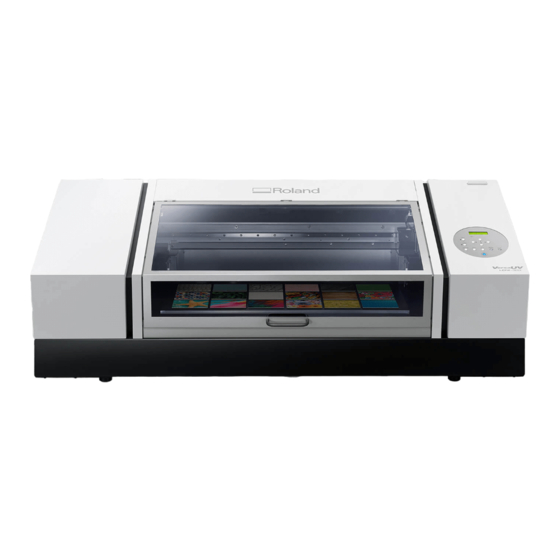

This document contains information that is not included in the LEF2-300 Setup Guide and is specific to the LEF2-300D (LEF2-300 +
D-KIT). Read this document together with the LEF2-300 Setup Guide.
The D-KIT is an option that extends the height limit of the LEF2-300 to 200 mm. This option can be selected at the time that a new
LEF2-300 unit is purchased.
• Thank you very much for purchasing this product.
• To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through this manual
completely and store it in a safe location.
• Unauthorized copying or transferal, in whole or in part, of this manual is prohibited.
• The specifications of this product and the contents of this operation manual are subject to change without notice.
• This manual and the product have been prepared and tested as much as possible. If you find any misprints or errors, please inform
Roland DG Corporation.
• Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur through use of this product,
regardless of any failure to perform on the part of this product.
• Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur with respect to any article
made using this product.
R2-200324
Setup Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VersaUV LEF2-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Roland VersaUV LEF2-300

Summary of Contents for Roland VersaUV LEF2-300

  • Page 1 • This manual and the product have been prepared and tested as much as possible. If you find any misprints or errors, please inform Roland DG Corporation. • Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur through use of this product, regardless of any failure to perform on the part of this product.
  • Page 2 Company names and product names are trademarks or registered trademarks of their respective holders. Copyright © 2020 Roland DG Corporation http://www.rolanddg.com/...

  • Page 3: Table Of Contents

    Contents Contents ......................................1 Differences between the LEF2-300D and LEF2-300 ......................2 To Ensure Safe Use ...................................3 Pour utiliser en toute sécurité .............................4 Machine Highlights ..................................5 Features of This Machine ..............................5 About the User's Manuals for This Machine ......................5 Checking the Included Items ...............................6 Setting Up the Machine .................................7 Attaching the Spacer Table............................7 Specifications ....................................

  • Page 4: Differences Between The Lef2-300D And Lef2-300

    Differences between the LEF2-300D and LEF2-300 The LEF2-300D and the LEF2-300 have the differences shown below. When reading the LEF2-300 Setup Guide, replace the values as shown below. LEF2-300D LEF2-300 (LEF2-300 + D-KIT) Total weight 177 kg (390.2 lb.) 155 kg (341.7 lb.) Outer dimensions (height) 676 mm (26.6 in.) 576 mm (22.7 in.)

  • Page 5: To Ensure Safe Use

    To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points that must be observed to prevent such injury or damage are described as follows. About WARNING and CAUTION Notices Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.

  • Page 6: Pour Utiliser En Toute Sécurité

    Pour utiliser en toute sécurité La manipulation ou l’utilisation inadéquate de cet appareil peuvent causer des blessures ou des dommages matériels. Les précautions à prendre pour prévenir les blessures ou les dommages sont décrites ci-dessous. À propos des avis ATTENTION et PRUDENCE Utilisé...

  • Page 7: Machine Highlights

    Machine Highlights Features of This Machine This machine is provided with the following features. • Capable of printing even on thick materials The LEF2-300D can print on materials having a thickness of 0 to 200 mm (0 to 7.87 in.). About the User's Manuals for This Machine The following documentation is included with the machine.

  • Page 8: Checking The Included Items

    Checking the Included Items The following additional items are included with the LEF2-300D. Head refresher spacer Spacer table Setup Guide (this document; 1) Spacer table (1) mounting screw (4) Regular Maintenance Guide (1)

  • Page 9: Setting Up The Machine

    Setting Up the Machine Attaching the Spacer Table Attach the spacer table after completing the ”Ink Filling”procedure. CAUTION Sharp components Take care to prevent injury from touching the sharp edges of the spacer table. Procedure Turning on the sub power Press [SETUP].
  • Page 10 Setting Up the Machine Hold the left and right sides of the spacer table, and place the spacer table in the position shown in the figure. : Holding locations Slide the spacer table until it hits the screw. IMPORTANT Move the spacer table slowly to prevent damage to the screw threads.
  • Page 11 Setting Up the Machine Tighten the rear screws. IMPORTANT Do not touch the head gap sensor. Press [▲] to move the flat table backwards about 100 mm (3.94 in). Tighten the front screws. Press and hold [SETUP] to go back to the initial state.

  • Page 12: Specifications

    Specifications LEF2-300D (LEF2-300 + D-KIT) Thickness Max. 200 mm (7.87 in.) (*1) Attachable objects to be printed on Weight Max. 8 kg (18 lb.) (When using an spacer table: Max. 2 kg (4.4 lb.)) 1,560 (W) × 955 (D) × 676 (H) mm (61.4 [W] × 37.6 [D] × 26.6 [H] in.) When the Outer dimensions ink-cartridge tray...
