INSTALLATION
NOTE: The RF Remote Control is an optional control, but not required to be installed for the system to operate.
OPTIONAL RF REMOTE CONTROL
STEP 1 – RF RECEIVER
TOOLS REQUIRED:
1. Cordless or electric drill or screw gun
2. Appropriate drive bit
PARTS REQUIRED:
A. RF receiver
B. Self-drilling wood screw (not supplied)

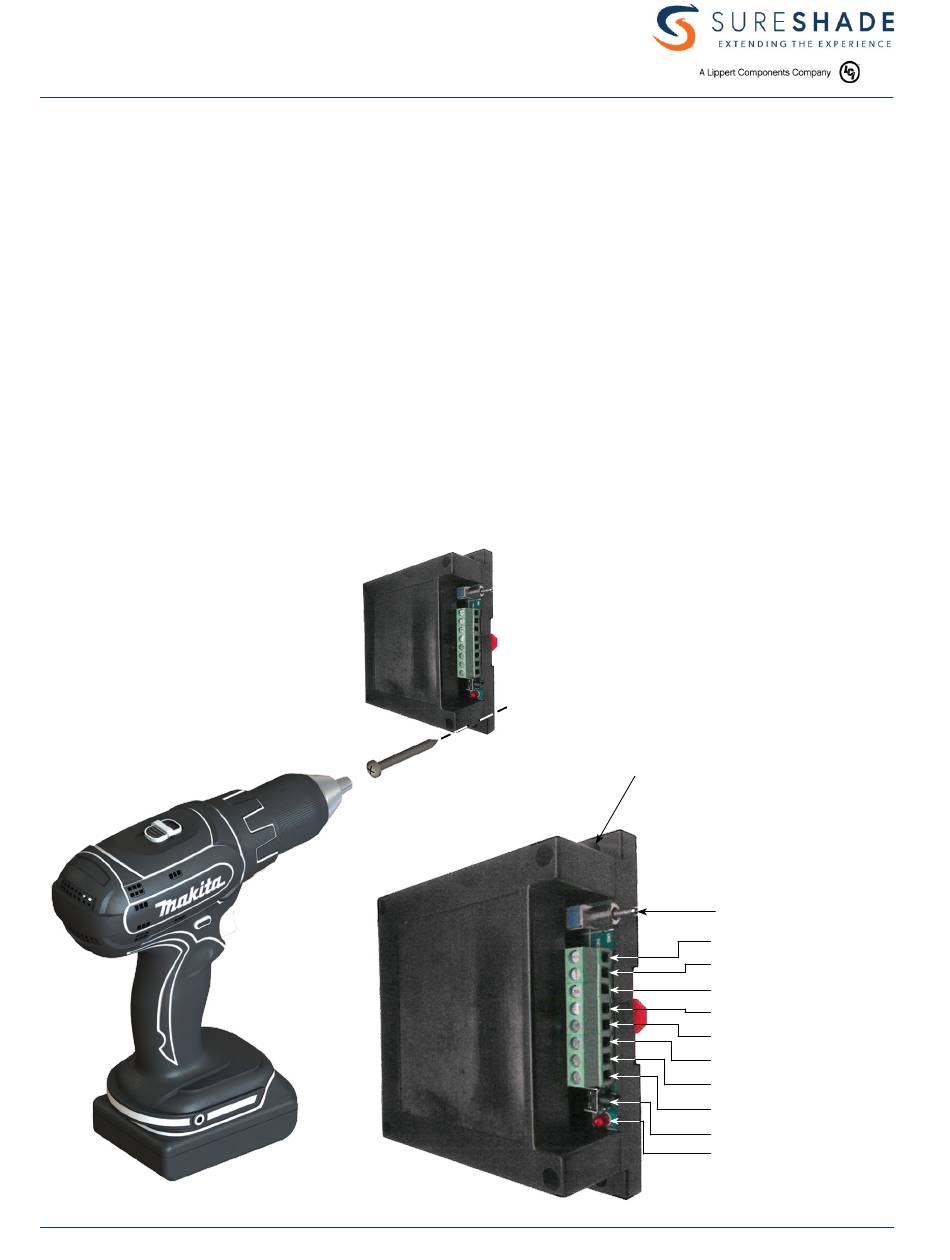

Select a protected location on the boat to mount the RF receiver (A), usually inside the helm. Use an electric drill
and four wood screws (B) to secure the RF receiver.
Connect the battery and motor wires according to the schematic diagram shown. If a helm-mounted switch is
installed, connect it to the RF receiver as shown in the schematic.
lci1.com 574-537-8900
A
B
A
14
Mounting Holes 4X
Override Switch
Battery Ground (-)
Battery Positive (+)
Motor #1 White Wire
Motor #1 Dark Blue Wire
Motor #2 White Wire
Motor #2 Dark Blue Wire
Helm Switch Up
Helm Switch Down
Program Button
Status Light
