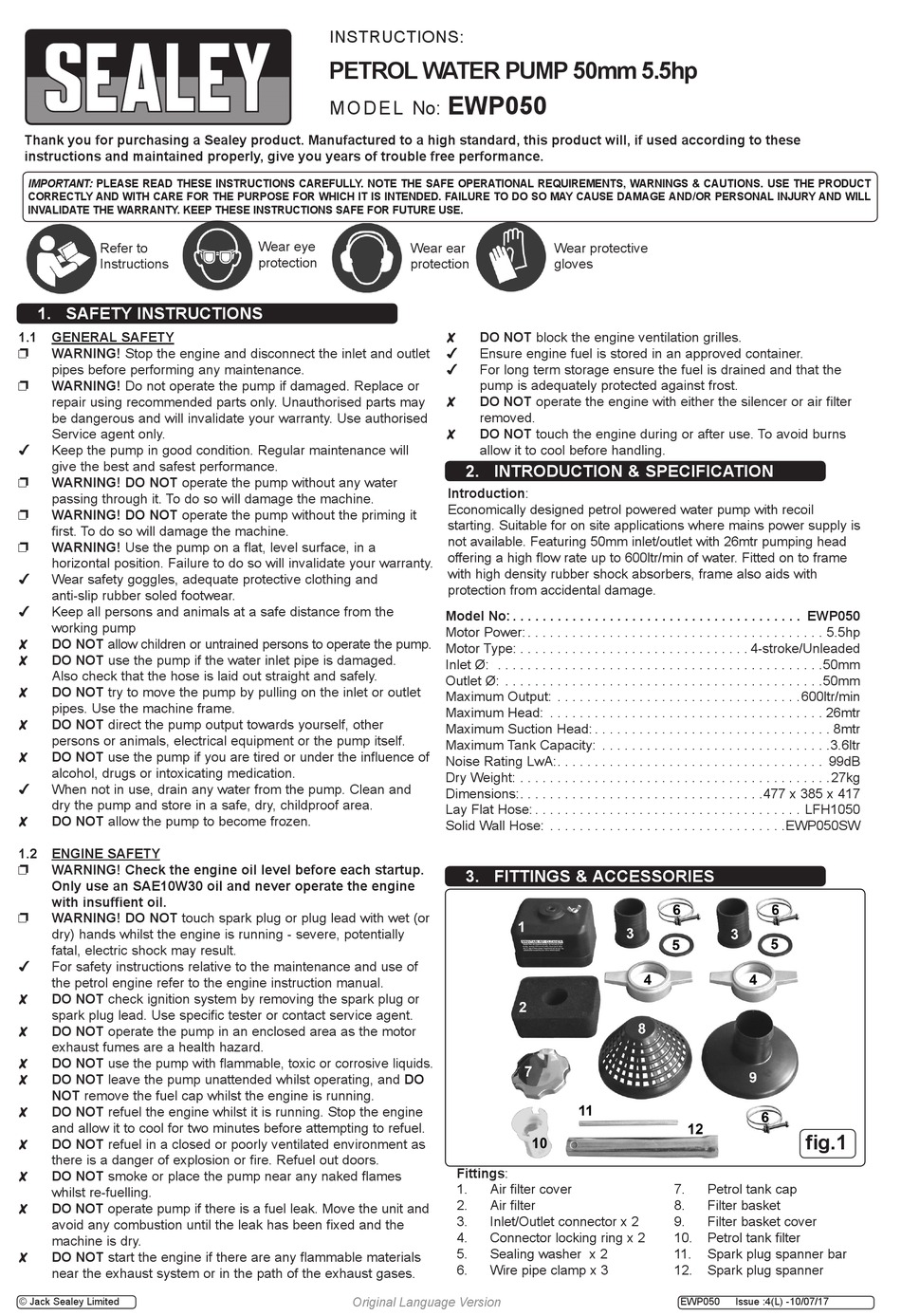

Sealey EWP050 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Instructions
1. SAFETY INSTRUCTIONS
1.1 GENERAL SAFETY
WARNING! Stop the engine and disconnect the inlet and outlet

pipes before performing any maintenance.
WARNING! Do not operate the pump if damaged. Replace or

repair using recommended parts only. Unauthorised parts may
be dangerous and will invalidate your warranty. Use authorised
Service agent only.
Keep the pump in good condition. Regular maintenance will

give the best and safest performance.
WARNING! DO NOT operate the pump without any water

passing through it. To do so will damage the machine.
WARNING! DO NOT operate the pump without the priming it

first. To do so will damage the machine.
WARNING! Use the pump on a flat, level surface, in a

horizontal position. Failure to do so will invalidate your warranty.
Wear safety goggles, adequate protective clothing and

anti-slip rubber soled footwear.
Keep all persons and animals at a safe distance from the

working pump
DO NOT allow children or untrained persons to operate the pump.

DO NOT use the pump if the water inlet pipe is damaged.

Also check that the hose is laid out straight and safely.
DO NOT try to move the pump by pulling on the inlet or outlet

pipes. Use the machine frame.
DO NOT direct the pump output towards yourself, other

persons or animals, electrical equipment or the pump itself.
DO NOT use the pump if you are tired or under the influence of

alcohol, drugs or intoxicating medication.
When not in use, drain any water from the pump. Clean and

dry the pump and store in a safe, dry, childproof area.
DO NOT allow the pump to become frozen.

1.2 ENGINE SAFETY
WARNING! Check the engine oil level before each startup.

Only use an SAE10W30 oil and never operate the engine
with insuffient oil.
WARNING! DO NOT touch spark plug or plug lead with wet (or

dry) hands whilst the engine is running - severe, potentially
fatal, electric shock may result.
For safety instructions relative to the maintenance and use of

the petrol engine refer to the engine instruction manual.
DO NOT check ignition system by removing the spark plug or

spark plug lead. Use specific tester or contact service agent.
DO NOT operate the pump in an enclosed area as the motor

exhaust fumes are a health hazard.
DO NOT use the pump with flammable, toxic or corrosive liquids.

DO NOT leave the pump unattended whilst operating, and DO

NOT remove the fuel cap whilst the engine is running.
DO NOT refuel the engine whilst it is running. Stop the engine

and allow it to cool for two minutes before attempting to refuel.
DO NOT refuel in a closed or poorly ventilated environment as

there is a danger of explosion or fire. Refuel out doors.
DO NOT smoke or place the pump near any naked flames

whilst re-fuelling.
DO NOT operate pump if there is a fuel leak. Move the unit and

avoid any combustion until the leak has been fixed and the
machine is dry.
DO NOT start the engine if there are any flammable materials

near the exhaust system or in the path of the exhaust gases.
© Jack Sealey Limited
INSTRUCTIONS:
PETROL WATER PUMP 50mm 5.5hp
M O D E L No:
Wear eye
Wear ear
protection
protection
Original Language Version
EWP050
Wear protective
gloves
DO NOT block the engine ventilation grilles.

Ensure engine fuel is stored in an approved container.

For long term storage ensure the fuel is drained and that the

pump is adequately protected against frost.
DO NOT operate the engine with either the silencer or air filter

removed.
DO NOT touch the engine during or after use. To avoid burns

allow it to cool before handling.
2. INTRODUCTION & SPECIFICATION
Introduction:
Economically designed petrol powered water pump with recoil
starting. Suitable for on site applications where mains power supply is
not available. Featuring 50mm inlet/outlet with 26mtr pumping head
offering a high flow rate up to 600ltr/min of water. Fitted on to frame
with high density rubber shock absorbers, frame also aids with
protection from accidental damage.
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EWP050
Motor Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5hp
Motor Type: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-stroke/Unleaded
Inlet Ø: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50mm
Outlet Ø: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50mm
Maximum Output: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600ltr/min
Maximum Head: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26mtr
Maximum Suction Head: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8mtr
Maximum Tank Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.6ltr
Noise Rating LwA: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99dB
Dry Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27kg
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .477 x 385 x 417
Lay Flat Hose: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LFH1050
Solid Wall Hose: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EWP050SW
3. FITTINGS & ACCESSORIES
Fittings:
1. Air filter cover
2. Air filter
3. Inlet/Outlet connector x 2
4. Connector locking ring x 2
5. Sealing washer x 2
6. Wire pipe clamp x 3
fig.1
7. Petrol tank cap
8. Filter basket
9. Filter basket cover
10. Petrol tank filter
11. Spark plug spanner bar
12. Spark plug spanner
EWP050 Issue :4(L) -10/07/17
