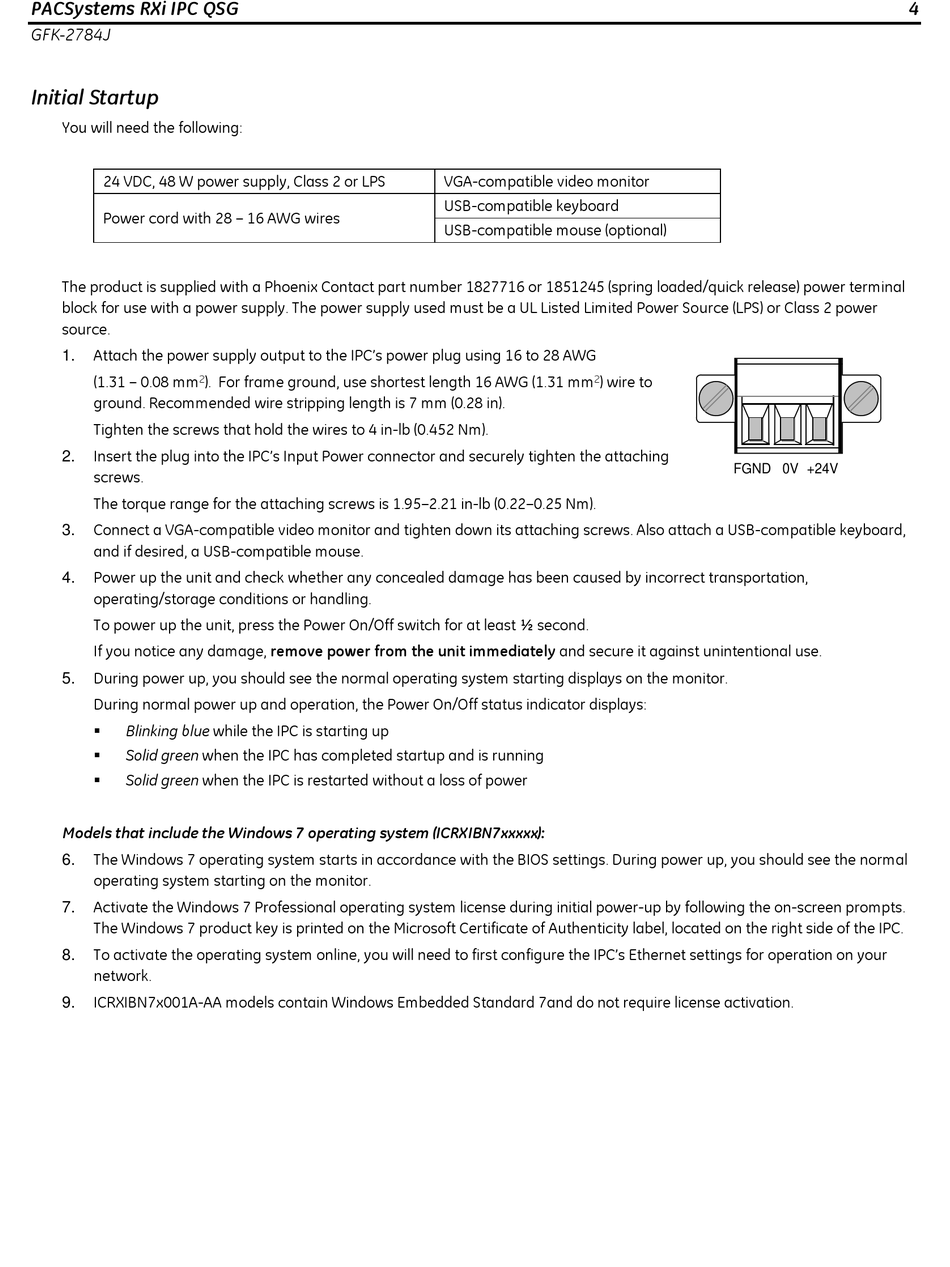

Initial Startup

You will need the following:
24 VDC, 48 W power supply, Class 2 or LPS
Power cord with 28 – 16 AWG wires
The product is supplied with a Phoenix Contact part number 1827716 or 1851245 (spring loaded/quick release) power terminal
block for use with a power supply. The power supply used must be a UL Listed Limited Power Source (LPS) or Class 2 power
source.
Attach the power supply output to the IPC's power plug using 16 to 28 AWG
1.
(1.31 – 0.08 mm 2 ). For frame ground, use shortest length 16 AWG (1.31 mm
ground. Recommended wire stripping length is 7 mm (0.28 in).
Tighten the screws that hold the wires to 4 in-lb (0.452 Nm).
Insert the plug into the IPC's Input Power connector and securely tighten the attaching
2.
screws.
The torque range for the attaching screws is 1.95–2.21 in-lb (0.22–0.25 Nm).
Connect a VGA-compatible video monitor and tighten down its attaching screws. Also attach a USB-compatible keyboard,
3.
and if desired, a USB-compatible mouse.
Power up the unit and check whether any concealed damage has been caused by incorrect transportation,
4.
operating/storage conditions or handling.
To power up the unit, press the Power On/Off switch for at least ½ second.
If you notice any damage, remove power from the unit immediately and secure it against unintentional use.
During power up, you should see the normal operating system starting displays on the monitor.
5.
During normal power up and operation, the Power On/Off status indicator displays:
Blinking blue while the IPC is starting up

Solid green when the IPC has completed startup and is running

Solid green when the IPC is restarted without a loss of power

Models that include the Windows 7 operating system (ICRXIBN7xxxxx):
The Windows 7 operating system starts in accordance with the BIOS settings. During power up, you should see the normal
6.
operating system starting on the monitor.
Activate the Windows 7 Professional operating system license during initial power-up by following the on-screen prompts.
7.
The Windows 7 product key is printed on the Microsoft Certificate of Authenticity label, located on the right side of the IPC.
To activate the operating system online, you will need to first configure the IPC's Ethernet settings for operation on your
8.
network.
ICRXIBN7x001A-AA models contain Windows Embedded Standard 7and do not require license activation.
9.
VGA-compatible video monitor
USB-compatible keyboard
USB-compatible mouse (optional)
2 ) wire to
4
FGND 0V +24V
