part number: 09163186 ( GM ) / 93181287 ( Vauxhall )

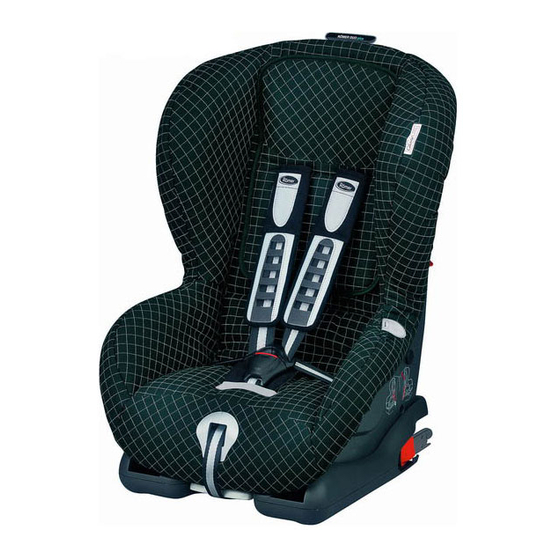

RÖMER DUO plus
Please read through these instructions carefully before using your RÖMER DUO
plus.
Contents
1. Test, certification, suitability ..................................................................... 1
2. Use in the vehicle ....................................................................................... 1
2.1. with ISOFIX fastening............................................................................ 2
2.2. with ISOFIX fastening and TopTether* anchorage ................................ 2
2.3. without ISOFIX fastening (universal) ..................................................... 2
3. Installation and removal in the vehicle..................................................... 3
3.1. with ISOFIX fastening............................................................................ 3
3.2. with ISOFIX fastening and TopTether anchoring................................... 6
3.3. without ISOFIX fastening (universal) ..................................................... 10
4. Securing your child.................................................................................... 12
4.1.Adjusting the shoulder belts ................................................................... 12
4.2.Loosening the harness ........................................................................... 13
4.3.Tightening the harness........................................................................... 13
4.4.Buckling up the child .............................................................................. 13
4.5.Function of the buckle ............................................................................ 14
5. Checklist for correct securing of your child ............................................ 15
6. Sitting / Resting / Sleeping - Adjustable seat shell ................................. 16
7. General instructions .................................................................................. 16
8. Care instructions........................................................................................ 17
8.1.Removing the cover ............................................................................... 18
8.2.Refitting the cover .................................................................................. 19
8.3.Removing the belts (left and right).......................................................... 20
8.4.Refitting of the belts (left and right)......................................................... 22
9. Tips regarding Disposal............................................................................. 24
10. Next child safety seat................................................................................. 24
11. Guarantee Card / Transfer-Check ............................................................. 26
1.

Test, certification, suitability

Child safety seat
RÖMER DUO plus
*ECE = European Standard for Safety Equipment
2.

Use in the vehicle

The RÖMER DUO plus is approved for three different kinds of installation:
with ISOFIX fastening
Test and certification to ECE* R 44/03
Group
Body weight
I
9 to 18 kg
with ISOFIX fastening and
TopTether* anchorage
GB
Instructions
Age range (approx.)
8 months to 4 years
without ISOFIX fastening
(universal)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUO plus and is the answer not in the manual?

Questions and answers

Related Manuals for Romer DUO plus

Summary of Contents for Romer DUO plus

  • Page 1: Table Of Contents

    9 to 18 kg 8 months to 4 years *ECE = European Standard for Safety Equipment Use in the vehicle The RÖMER DUO plus is approved for three different kinds of installation: with ISOFIX fastening with ISOFIX fastening and without ISOFIX fastening...

  • Page 2: With Isofix Fastening

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) 2.1. with ISOFIX fastening Important: The fastening with ISOFIX requires a vehicle- forward facing specific approval. Please make sure you study the enclosed list of approved vehicles, on seats with: which is continuously supplemented.

  • Page 3: Installation And Removal In The Vehicle

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Installation and removal in the vehicle 3.1. with ISOFIX fastening After adjusting the shoulder belts (refer to 4.1) fasten the child seat with ISOFIX as follows: 1. Prepare ISOFIX Clip the two insertion guides* to the two ISOFIX fastening points...
  • Page 4 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) The hook* must be open on both connectors 3. To open the hook squeeze the locking button and the red release button together (refer to 2. Engage ISOFIX). Position the two connectors directly in front of the two insertion guides 1.
  • Page 5 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) To release the locking mechanism turn the green lever downwards. Then push the child seat with the lever turned down towards the backrest. Push the child seat towards the backrest applying firm, even pressure on both sides.

  • Page 6: With Isofix Fastening And Toptether Anchoring

    The TopTether is placed in a fabric pocket on the top rear edge of your RÖMER DUO plus. If you have purchased a RÖMER DUO plus without TopTether, you can buy it as accessory from your specialised shop.
  • Page 7 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Using the green handle 2, pull the two connectors as far as they will go. On both sides of the seat squeeze the locking button and the red release button together and remove the connector protection 33.
  • Page 8 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) 3. Engage ISOFIX Press the locking button on one side to the back and engage the connector ("click"). Press the locking button on the other side to the back and engage the connector ("click").
  • Page 9 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Pull both sides to check that the seat is positioned firmly. 4. Anchor TopTether Open the spring hook by pressing with your thumb against the spring clip. Attach the spring hook to the appropriate anchorage point (on the rear shelf, on the floor or behind the backrest) -...

  • Page 10: Without Isofix Fastening (Universal)

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) 3.3. without ISOFIX fastening (universal) After adjusting the shoulder belts (refer to 4.1) place the child seat into the vehicle seat. Fasten the child seat with the vehicle 3-point-seat belt as follows: Place the child seat onto the cover side (locking mechanism will disengage).
  • Page 11 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Then, on the side opposite the car seat belt buckle, swivel clamping lever down and insert diagonal belt in belt lock-off 9. Apply your body weight to the child seat (kneel into the seat).

  • Page 12: Securing Your Child

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Securing your child 4.1. Adjusting the shoulder belts Before you install the child seat in the vehicle, please ensure that the shoulder belts are adjusted to the correct height. Place child into the child seat. •...

  • Page 13: Loosening The Harness

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) 4.2. Loosening the harness Push with the finger of one hand on the adjuster and with the other hand pull both shoulder belts simultaneously towards you. (Do not pull the shoulder pads 11.) 4.3.

  • Page 14: Function Of The Buckle

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Hook buckle tongues into the rubber loops (are not available on all covers) on the cover on the left and right side. Fold the crotch belt pad and buckle towards you.

  • Page 15: Checklist For Correct Securing Of Your Child

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) • The tongues are difficult to insert (you feel resistance). • The buckle only opens after applying extreme force. Remedy 1. Removing the crotch belt Open buckle by pushing the red release button 18.

  • Page 16: Sitting / Resting / Sleeping - Adjustable Seat Shell

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Sitting / Resting / Sleeping - Adjustable seat shell The seat shell has 3 positions for upright and reclined travel. From sitting to sleeping: Push the adjusting handle up and pull the seat shell forwards.

  • Page 17: Care Instructions

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) To protect all vehicle passengers • With all personal safety systems, it is essential to ensure that the backrest of the vehicle seat is adequately secured and that no heavy or sharp-edged objects are carried in the passenger compartment (e.g.

  • Page 18: Removing The Cover

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) 8.1. Removing the cover Open the buckle and loosen the harness straps as much as possible (refer to 4.2). Take the elastic seam of the cover from the hooks in the seat shell. Press the button of the shoulder belt height adjuster at the rear of the seat...

  • Page 19: Refitting The Cover

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) 8.2. Refitting the cover Put on the cover of the head pad 35. Put the cover over the head pad starting at the lower side of the square hole. Feed the shoulder belts (with buckle tongues 19) through the cover.

  • Page 20: Removing The Belts (Left And Right)

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Fold the fabric cover over the outer edges of the seat shell. Fasten the elastic seam of the fabric cover with the hooks on the seat shell. 8.3. Removing the belts (left and right) Open the buckle and loosen the harness straps as much as possible (refer...
  • Page 21 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) At the bottom Take the elastic seam of the cover (lower half) from the hooks in the seat shell. Grasp the metal part with which the belt is secured to the seat shell, and pull out.

  • Page 22: Refitting Of The Belts (Left And Right)

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) 8.4. Refitting of the belts (left and right) First put the tongues of the two harness straps together and engage in the buckle (refer to 4.4). Feed the belt loop (black stitching) into the cover and into the outer side slot of the seat shell.
  • Page 23 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) At the top Attach the shoulder pads to the shoulder belts 10. (Do not exchange the shoulder pads.) Thread the shoulder belts through the pair of slots 12. Push the shoulder belts at the rear of the seat between the deflection bar and the extension...

  • Page 24: Tips Regarding Disposal

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Tips regarding Disposal Please observe the disposal regulations of your country. dispose of packaging container for paperboard cover garbage, thermal utilization according to the identification on the part plastic parts into the containers provided dispose of components...
  • Page 25 part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) G U A R A N T E E 2 Y E A R S For this car/bicycle child seat we issue a guarantee of 2 years on manufacturing or material faults.

  • Page 26: Guarantee Card / Transfer-Check

    part number: 09163186 ( GM ) / 93181287 ( Vauxhall ) Guarantee Card / Transfer-Check Name: ________________________________________________ Address: ________________________________________________ Post Code: ________________________________________________ Place: ________________________________________________ Telephone No (including ________________________________________________ area code): ________________________________________________ e-mail address: ________________________________________________ Car/bicycle child seat: ________________________________________________ Article-No: ________________________________________________ Design: ________________________________________________ Accessories:...
