KWM Gutterman IronMan Operating And Maintenance Troubleshooting Manual page 22

1. FACE-SIDE OF TOP EXIT ROLLER ASSEMBLY:
This area will control into the house and also up & downhill on the face-side bottom of the gutter.
•
This station is very responsive; make small incremental adjustments of less than 1/32 of a turn.
•
ADJUSTMENT:

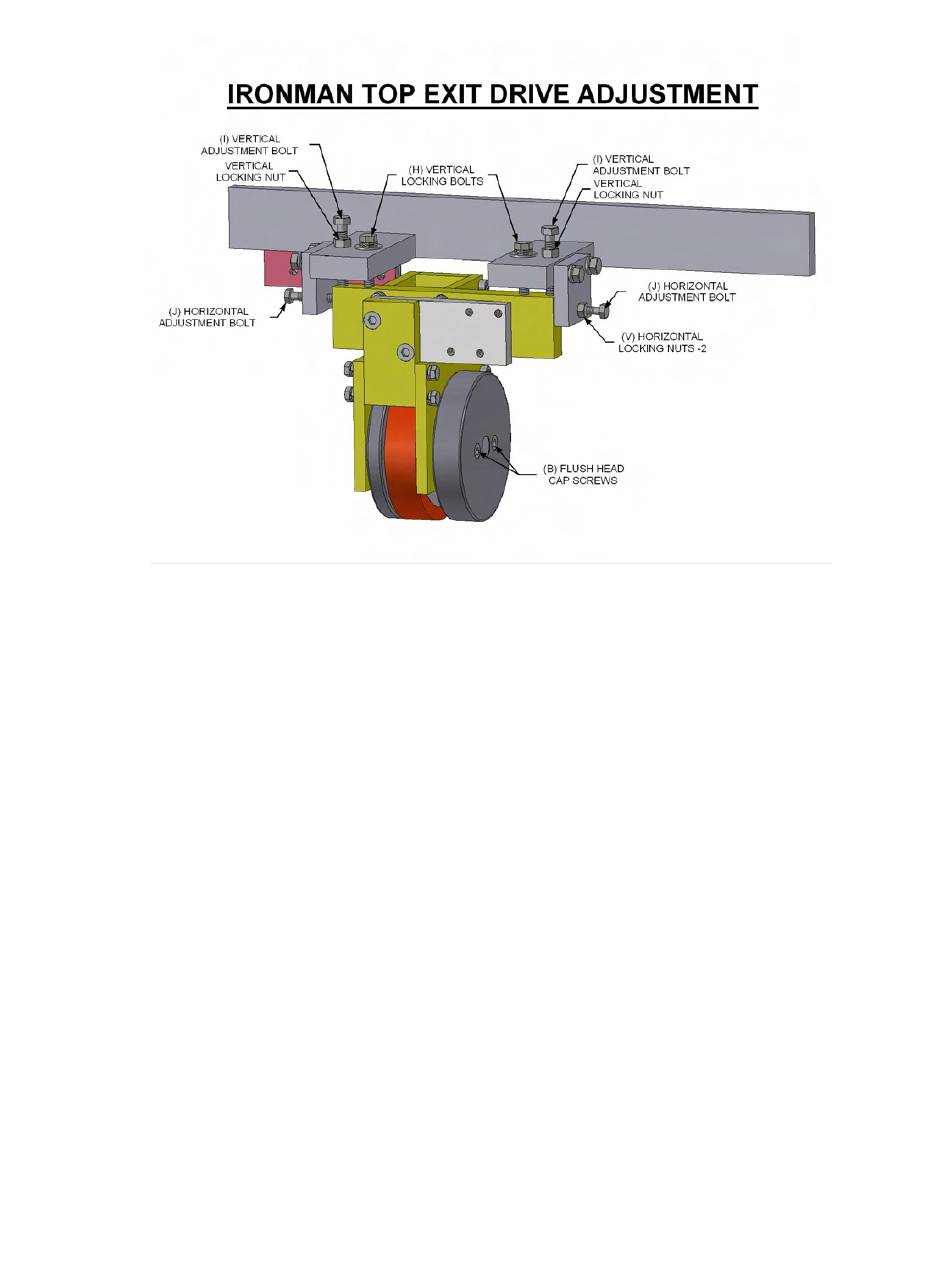

1. Loosen HORIZONTAL LOCKNUT (V) on HORIZONTAL ADJUSTMENT BOLT (J).
2. Loosen VERTICAL LOCKING BOLT (H) and the LOCK NUT on VERTICAL ADJUSTMENT BOLT (I).
TO ADD PRESSURE; turn ADJUSTMENT BOLT (I) clockwise.
3.
a. TO RELIEVE PRESSURE, turn ADJUSTMENT BOLT (I) counter-clockwise.
4. Tighten LOCKING BOLTS and NUTS
2. BACK SIDE OF TOP EXIT ROLLER:
ADJUSTMENT:
1. Loosen HORIZONTAL LOCKNUT (V) on HORIZONTAL ADJUSTMENT BOLT (J).
2. Loosen VERTICAL LOCKING BOLT (H) and the LOCK NUT on VERTICAL ADJUSTMENT BOLT (I).
3. TO ADD PRESSURE; turn ADJUSTMENT BOLT (I) clockwise.
a. TO RELIEVE PRESSURE, turn ADJUSTMENT BOLT (I) counter-clockwise.
4. Tighten LOCKING BOLTS and NUTS
3. ADDING PRESSURE TO EXIT POLYURETHANE DRIVE ROLLER:
The top exit roller is very responsive to adjustment; make all adjustments in very small increments.
•
DO NOT exceed 1/32 of a turn past factory setting.
•
ADJUSTMENT: (SEE PG 19)
1. Loosen LOCKNUTS on ADJUSTMENT BOLTS (J), (H), and (I).
2. Loosen LOCKING BOLTS (J) 1/16 of a turn counter-clockwise.
3. TO ADD PRESSURE,
a. Turn ADJUSTMENT BOLTS (I) equally a 1/64 of a turn clockwise.
Make sure to add pressure equally to both sides.
4. Tighten LOCKING BOLTS and NUTS
21
