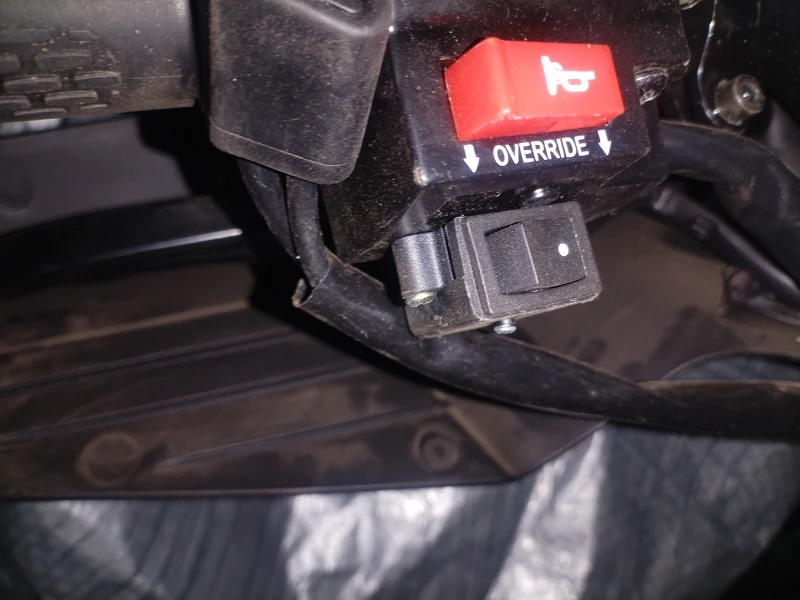

On the Linhai ATV300-D T3b, the override button provides additional power while backing up. However, it must never be activated while the throttle is open, as this may cause loss of control and result in severe injury or death.

This answer is automatically generated

Евгений

April 8, 2025

@Mr. Anderson подскажите пожалуйста за счет чего обеспечивается дополнительная мощность? Подключается какой-то агрегат или что? И за счет чего помогает при торможении?

-2

Евгений

April 8, 2025

Мистер Андерсон не могли бы вы подсказать за счёт чего обеспечивается дополнительная мощность? Подключается какой-то агрегат или что? И за счёт чего это помогает при торможении?

Summary of Contents for Linhai ATV300-D T3b

Page 1 NOT DESIGENED FOR USE ON RENTAL TRACKS OR RACING ATV300-D T3b BEFORE OPERATING THIS VEHICLE, THE OWNER AND EACH OPERATOR MUST HAVE READ AND HAVE AN UNDERSTANDING OF ALL THE INSTRUCTIONS FOR PROPER ASSEMBLY AND SAFE OPERATION, AS WELL AS THE INSTRUCTIONS CONCERNING THE ENGINE AND ALL OTHER PORTIONS OF THE VEHICLE.
Page 3 CONTENTS 1. INTRODUCTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 2. UNDERSTANDING WARNING · · · · · · · · · · · · · · · · ·6 3.
Page 4 NOTE: A storage area/toolbox has been provided under the seat of the ATV for storage of this manual, and addendums. Please keep this manual and addendums in the storage area/toolbox so that it can be found easily and referenced when needed.
Page 5 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 1. Introduction Congratulations on the purchase of your ALL Terrain Vehicle (ATV). We take pride in offering you this product engineered and manufactured to the highest performance and quality standards. We are sure that you will enjoy superior levels of performance, reliability, riding comfort, and safety.
Page 6 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Practice Responsible ATV Riding Make sure that understand follow all local, state/province, federal/national riding laws requirements. Remember……Respect your vehicle, respect the environment and respect the property of others. You are responsible for your safety and the safety of others around you when you ride!
Page 7 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 AN ATV CAN BE HAZARDOUS TO OPERATE. An ATV handles differently from other vehicles including motorcycles and cars. A collision rollover can occur quickly, even during routine maneuvers such as turning and driving on hills or over obstacles, if you fail to take proper precautions.
Page 8 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 unfamiliar terrain. Always be alert to changing terrain conditions when operating the ATV.  Never operate on excessively rough, slippery or loose terrain.  Always follow proper procedures for turning as described in this manual. Practice turning at low speeds before attempting to turn at faster speeds.
Page 9 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Never attempt to operate over large obstacles, such as large rocks or fallen trees. Always follow proper procedures when operating over obstacles as described in this manual.  Always be careful of skidding of sliding. On slippery surfaces, such as ice, go slowly and be very cautious in order to reduce the chance of skidding or sliding out of control.
Page 10 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 2. UNDERSTANDING WARNINGS ATTENTION: This is an ADULT VEHICLE ONLY: not a toy. READ AND WARNINGS OWNER’S MANUAL UNDERSTAND BERORE OPERATION. KNOW YOUR VEHICLE BEFORE YOU BEGING RIDING! Read this manual thoroughly referring to the various areas which are being discussed on your machine.
Page 11 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 2. UNDERSTANDING WARNINGS SAFETY ALERT WARNINGS identify special instructions or procedures which, if not correctly followed, could result in personal injury, or loss of life. Read all WARNINGS in this manual carefully. Follow their instructions to remain safe.
Page 12 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 3. SAFETY WARNING NOTE： Warning decals have been placed on the vehicle for your protection. Read and follow the instructions on each decal carefully. In the event any decal becomes illegible or comes off, contact your dealer for a replacement.
Page 13 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 3.SAFETY WARNING - 9 -...
Page 14 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 - 10 -...
Page 15 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 - 11 -...
Page 16 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 - 12 -...
Page 17 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 - 13 -...
Page 18 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 - 14 -...
Page 19 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 - 15 -...
Page 20 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 4. DAILY PRE-RIDE INSPECTION WARNING You must inspect your ATV each time before riding to ensure it is in proper working order. If proper inspection is not done, severe injury or death could result. Use the following checklist to verify your machine is in proper working order each time you ride.
Page 21 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 7. Wheels-check for tightness of wheel nuts and axle nuts; check those axle nuts are secured by cotter pins. 8. Air cleaner element-check for dirt; clean or replace. 9. Steering-check for free operation noting any unusual looseness in any area.
Page 22 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 described in the Owner’s Manual. For more information about the training course, contact an authorized ATV dealer. WARNING POTENTIAL HAZARD Operate this ATV without wearing an approved helmet, eye protection and protective clothing. WHAT CAN HAPPEN Operating without an approved helmet increases your chances of a severe head injury or death in the event of an accident.
Page 23 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 WARNING POTENTIAL HAZARD Operating this ATV at excessive speeds. WHAT CAN HAPPEN Increases your chances of losing control of the ATV, which can result in an accident. HOW TO AVOID THE HAZARD Always travel at a speed which is proper for the terrain, visibility and operating conditions;...
Page 24 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Attempting wheelies, jumps and other stunts. WHAT CAN HAPPEN Increases the chance of an accident, including an overturn. HOW TO AVOID THE HAZARD Never attempt stunts, such as wheelies or jumps. 5. OPERATION WARNINGS...
Page 25 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Failure to inspect the ATV before operating. Failure to properly maintain the ATV. WHAT CAN HAPPEN Increases the possibility of an accident or equipment damage. HOW TO AVOID THE HAZARD Always inspect your ATV each time you use it to make sure the ATV is in safe operating condition.
Page 26 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Failure to use extra care when operating this ATV on unfamiliar terrain. WHAT CAN HAPPEN You can come upon hidden rocks, bumps, or holes, without enough time to react. Could result in the ATV overturning or going out of control.
Page 27 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Failure to use extra care when operating on excessively rough, slippery or loose terrain. WHAT CAN HAPPEN Could cause loss of traction or vehicle control, which could result in an accident, including an overturn.
Page 28 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Turning improperly. WHAT CAN HAPPEN ATV could go out of control, causing a collision or overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for turning as described in the Owner’s Manual.
Page 29 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Going down a hill improperly. WHAT CAN HAPPEN Could cause loss of control or cause ATV to overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for going down hills as described in the Owner’s Manual. NOTE: A special technique is required when braking as you go downhill.
Page 30 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Stalling, rolling backwards or improperly dismounting while climbing a hill. WHAT CAN HAPPEN Could result in ATV overturning. HOW TO AVOID THE HAZARD Maintain steady speed when climbing a hill. If you lose all forward speed: Keep weight uphill.
Page 31 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Improperly operating over obstacles. WHAT CAN HAPPEN Could cause loss of control or a collision. Could cause the ATV to overturn. HOW TO AVOID THE HAZARD Before operating in a new area, check for obstacles.
Page 32 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Operating this ATV through deep or fast flowing water. WHAT CAN HAPPEN Tires may float, causing loss of traction and loss of control, which could lead to an accident. HOW TO AVOID THE HAZARD Never operating the ATV through water which exceeds the recommended maximum depth in this manual.
Page 33 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Operating this ATV with improper tires, or with improper or uneven tire pressure. WHAT CAN HAPPEN Use of improper tires on this ATV, or operation of this ATV with improper or uneven tier pressure, may cause loss of control, and increases the risk of an accident.
Page 34 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 POTENTIAL HAZARD Overloading this ATV or carrying or towing cargo improperly. WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD Never exceed the stated load capacity for this ATV, Cargo should be properly distributed and securely attached, Reduce speed when carrying cargo or pulling a trailer.
Page 35 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 After a rollover or an accident, have a qualified service dealer check the complete machine including, but not limited to, brakes, throttle and steering for possible damage. WARNING Safe operation of this rider active vehicle requires good judgement and physical skills.
Page 36 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Record these numbers from your ATV in the spaces provided. 1. Frame VIN (found on the lower right side of the frame tube) 2. Engine Serial Number (Left front side of engine crankcase) Remove the spare key and store in a safe place. Your key can be duplicated only by obtaining a key blank and having it cut by mating it with your existing key.
Page 37 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 1. Main Switch -This key switch must be turned clockwise to the ―on‖ position to start the engine. 2. Hazard Light Switch –When the switch is pushed to ― ― , the four signal lights are on and the buzzer is sounding.
Page 38 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 A. “OFF” B.“ON” C.“HEAD LIGHT” “OFF”: Turn the key to this position to stop the engine, switch off all the electrical circuits and remove the key. “ON”: In this position, the ATV electrical system is connected, the engine can be started and the key cannot be removed.
Page 39 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Light Switches and Indicator Lights WARNING Use caution and drive at reduced speeds in conditions of reduced visibility such as fog, rain and darkness. Switches The light switch is located on the left hand handlebar. In addition to turning the lights on and off, it also switches the lights from to Lo on models equipped with Hi –...
Page 40 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Accessory Socket (1) Accessory socket (2) cap The accessory socket (1) is attached to the left side of the front cover. You can use the accessory socket to power a trouble light, spotlight, CB radio, or cell phone etc.
Page 41 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Throttle WARNING Do not start or operate an ATV with sticking or improperly operation throttle controls. A stuck or improperly operating throttle could cause an accident resulting in severe injury or death. Always contact your dealer for service repairs whenever throttle problems arise.
Page 42 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Front and Rear Brakes The brake fluid level should be checked before each ride. The reservoir of hand brake is located on the left side of the handlebar. The reservoir of foot brake is located under the seat. The fluid should be kept between the maximum and minimum marks.
Page 43 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 WARNING Never operate the ATV with a spongy feeling brake pedal. operating the ATV with a spongy brake pedal can result in loss of braking. Loss of braking could cause an accident. Setting the Parking Brake 1.
Page 44 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0  The parking brake may relax when left on for a long period of time. This could cause an accident.  Do not leave the vehicle on a hill depending on the parking brake for more than five minutes.
Page 45 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 feature. It is located on the left handlebar and is operated by the left hand. It is intended as a backup to the main brake system, especially if the main system becomes inoperative. If the rear wheels slide, apply the rear brake with the left hand to some extent.
Page 46 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 seen through it, and should be maintained between the indicated ―max‖ and ―min‖ marks on the reservoir. Operator’s Seat CAUTION To avoid personal injury:： 1. Make sure that the seat is compIeteIy secured. 2. Do not allow any person other than the driver to ride on the tractor.
Page 47 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 The transmission gear selector is located positions: high forward; reverse; neutral; and low forward. NOTE: To extend belt life, use low forward gear in heavy pulling situations and in situations where you are operating below 7mph(11km/h) for extended periods of time.
Page 48 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Engine Cooling System Coolant Level The recovery bottle, located the left of the frame, must be maintained between the minimum and levels indicated on the recovery bottle. The engine coolant level is controlled or maintained by the recovery system.
Page 49 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Cooling System WARNING Never remove the pressure cap when the engine is warm or hot. Escaping steam can cause severe burns. The engine must be cool before removing the pressure cap. Radiator Coolant Level Inspection...
Page 50 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Fuel and Oil system WARNING Gasoline is highly flammable and explosive under certain conditions.  Always exercise extreme caution whenever handling gasoline.  Always refuel with the engine stopped and outdoors or in a well ventilated area.
Page 51 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Fuel and Oil System Fuel System The fuel tank filler cap (1) is located directly behind the handlebar. Refer to your owner’s Manual for tank capacity. Use regular unleaded gasoline. The fuel valve is located on the left side of the front fender and has three positions: OFF: For vehicle storage and whenever transporting.
Page 52 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Oil System The oil tank is located on the right side of the engine . To check the oil: 1. Set machine on a level surface. 2. Start the engine and let it idle for 20-30 seconds.
Page 53 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 4 Wheel Drive System (4WD model) 1. Electric 2WD- 4WD Shift Some model is equipped with an electric shift. CAUTION: Always shift as the vehicle stop. NOTE: When shift 2WD/ 4WD, the mechanics in the front gear box...
Page 54 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 WARNING： Extreme heavy steering is a symptom of malfunction of front gearcase (differential), loss of control could result, even in 2WD position. If you experience any symptoms from the steering, take the ATV to your dealer for inspection and service.
Page 55 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 WARNING Never run an engine in an enclosed area. Carbon monoxide exhaust gas is poisonous and can cause severe injury or death. Always start engines outdoors. CAUTION You must allow your vehicle adequate warm up time before operating or engine damage could result.
Page 56 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 The recoil starter is used to start the engine when the battery is low ( but must more than 8 Volt). To operate the recoil starter: 1. Grasp the starter grip firmly, when pull it out slowly approximately 4 in (100 mm ).
Page 57 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Normal Air Temperature 10°~35℃ 1. Move the choke lever ① left to the fully ON (A) position, if the engine is cold. 2. With the throttle closed, press the starter button. Pressing the electric starter button for more than 5 seconds at a time may casue the starter to overheat and damage the starter.
Page 58 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 1. Do not use the choke. 2. With the throttle slightly open, press the starter button. 9. VEHICLE BREAK-IN PERIOD The break-in period for your new ATV is defined as the first - 54 -...
Page 59 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 50 hours of operation. No single action on your part is as important as a proper break in period. Careful treatment of new engine will result in more efficient performance and longer life for the engine. Perform the following procedures carefully.
Page 60 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Always wear clothing suite to the type of riding you are doing. ATV riding requires special protective clothing which will make you fell more comfortable and reduce chances of injury. 1. Helmet Your helmet is the most important piece of protective gear for safe riding.
Page 61 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 and 2/3 on the rear ) and mounted as low as possible. When operating over rough or hilly terrain, reduce speed and cargo to maintain stable driving conditions. Never exceed the weights specified in your Owner’s Manual.
Page 62 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0  REDUCE SPEED AND ALLOW GREATED DISTANCE FOR BRAKING WHEN CARRYING CARGO.  CARGO WEIGHT DISTRIBUTION should be 1/3 on the front rack and 2/3 on the rear rack. When operating over rough or hilly terrain, reduce speed and cargo to maintain stable driving conditions.
Page 63 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Use A Safety Chain  A safety chain will help control drawn machinery should it separate from the tractor drawbar.  Use a chain with the strength rating equal to or greater than the gross weight of the towed machinery.
Page 64 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 excessive fuel to build in the exhaust, and ignited by the catalyst muffler, RESULT MUFFLERS OVERHEATING AND FIRE RISK. Always reduce throttle when the engine reach top rpm, avoid the engine popping. WARNING You must inspect you ATV each time before riding to ensure it is in proper working order.
Page 65 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 This ATV is equipped with a solid rear axle which drives both rear wheels equally at all times. This means that the wheel on the outside of the turn must travel a greater distance than the inside wheels when turning and the inside tire must slip traction slightly.
Page 66 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Riding on slippery surfaces Whenever riding on slippery surface such as wet trails or loose gravel, or during cold freezing weather, special attention must be paid to prevent vehicle turnover. Always: Slow down when entering slippery areas.
Page 67 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 WARNING Exercise extreme caution when traveling in hilly terrain. Braking and handling are greatly affected. Loss of vehicle control or overturning of the ATV could occur causing severe injury or death. Whenever traveling uphill always travel straight uphill and: 1.
Page 68 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Side hilling your ATV is one of the most dangerous types of riding and should be avoided. If you do enter into a situation where sidehilling is necessary, always: 1. Slow down. 2. Lean into the hill transferring your upper body weight toward the hill while keeping your feet on the footrests.
Page 69 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Whenever descending a hill, always: 1. Drive directly downhill. 2. Transfer your weight to the rear of the vehicle. 3. Slow down. 4. Apply the brakes slightly to aid in slowing. Familiarize yourself with the auxiliary rear brake pedal and its use in the event loss of normal service brakes occurs.
Page 70 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Turning Around On a Hill If the ATV stalls while climbing a hill, never back it down the hill! One maneuver which can be used when it is necessary to turn around while climbing a hill is the K-turn.
Page 71 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Your ATV can operate through water up to maximum recommended depths is 8 inch. Before fording steams always: 1. Determine water depths and current. 2. Choose a crossing where both banks have gradual inclines. 3. Proceed slowly, avoiding rocks and obstacles if possible.
Page 72 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 CAUTION If you ATV becomes immersed,take it to your dealer before starting the engine.Major engine damage can result if the maching is not thoroughly inspected. If it is impossible to take it to a dealer before starting, follow the steps outlined below.
Page 73 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Keep Alert! Look ahead and learn to read the trail as you ride. Stay on the right side of the trail, if possible, and be constantly alert for hazards such as logs,rocks and low hanging branches.
Page 74 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 You could hit an obstacle or person behind you; or the vehicle could tip over rearward on a steep incline causing severe injury or death. Backing up 1. Avoid backing up on steep inclines. 2. Always back slowly.
Page 75 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Whenever the vehicle is parked 1. Turn the engine off. 2. Place the transmission in gear. 3. Set the parking brake. 4. Shut off fuel supply. 5. Avoid parking on an incline.If it is neceddary to park on an incline,always block the rear wheels on the down hill side as shown above.
Page 76 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 of force on clutch components. However, as the owner you have the following responsibilities to make sure this system remains safe:  Do not modify any component of the CVT system. Doing so may reduce its strength so that a failure may occur at high speeds.
Page 77 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 By switching to low range while operating at low ground speeds, the air temperature in the clutch will be reduced. Reducing the temperature inside the clutch cover extends the life of the CVT components (belt, cover, etc.).
Page 78 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Low Range  Basic operation at speeds less than 7 MPH (11km/h)  Heavy pulling  Riding through rough terrain (swamps, mountains, etc.)at low ground speeds High Range:  Basic operation at speeds greater than 7 MPH (11km/h) ...
Page 79 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 (black) cable last or an explosive situation could result causing serious injury or death. WARNING Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing. Antidote: External: Flush with water.
Page 80 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 2. Remove the battery vent tube from the battery. 3. Disconnect the black (negative) battery cable first. 4. Disconnect the red(positive) battery cable next. 5. Lift the battery out of the ATV, being careful not to tip it sideways and spill electrolyte.
Page 81 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 from the frame and body to prevent corrosion. Avoid skin contact with electrolyte, severe burns could result. 3. First connect and tighten the red (positive) cable. 4. Second connect and tighten the black (negative) cable.
Page 82 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 To avoid personal injury :  Do not smoke while refueling.  Be sure to stop the engine before refueling 1． Turn the key switch to ―ON‖, check the amount of fuel by fuel gauge.
Page 83 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0  Do not touch exhaust system components. Serious burns can result.  Be especially careful when traveling through tall grass. The potential for fire exists Spark Arrestor The exhaust pipe must be periodically purged of accumulated carbon as follows: 1.
Page 84 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 WARNING The engine rpm limiter will work at 7500rpm, this may cause excessive fuel to build in the exhaust, and ignited by the catalyst muffler, RESULT MUFFLERS OVERHEATING AND FIRE RISK. Always reduce throttle when the engine reach top rpm, avoid the engine popping.
Page 85 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0  More often under severe use, such as dirty or wet conditions to purge water or dirt contamination from grease fittings and other critical components. Periodic Maintenance Schedule Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition.
Page 86 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Tires Pre-ride Pre-ride Inspect daily, pre-ride inspection item Wheels Pre-ride Pre-ride Pre-ride inspection item Frame nuts, bolts Pre-ride Pre-ride Pre-ride inspection item fasteners  Daily Daily Inspect-Clean Filter-Pre-Cleaner Coolant/Level Daily Daily Replace engine coolant Inspection Every one year ...
Page 87 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Brake pad wear 10 hrs Monthly Inspect periodically  Rear Gear case Oil 100 hrs Monthly Check monthly change annually  Front Gear case Oil 100 hrs Monthly Check monthly ( Only for 4WD) change annually...
Page 88 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0  Oil Filter 50 hrs 6 months Inspect-clean Engine breather hose 100 hrs 6 months Inspect Carburetor Float Bowl 50 hrs 6 months Drain bowl periodically and prior to storage Inspect –adjust, lubricate, Throttle Cable...
Page 89 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 months 16. MAINTENANCE Item Hours When Remove Radiator (for 300cc) 100 hrs 12 months Inspect/clean external surface - 85 -...
Page 90 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Cooling System 50 hrs 6 months Inspect/replace if hoses(for 300cc) necessary Spark arrestor 10 hrs monthly Clean out-replace if necessary Clutches (drive and 25 hrs 3 months Inspect, clean driven) Engine mounts 25 hrs 3 months...
Page 91 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 2.Brake Fluid DOT 3 Only Maintain level require; Between fill lines. change See ―7.CONTROL‖ every years or 200 hours See ―16.MAI- 3.Transmissi Change on Oil 80W/90GL5 annually or at NTENANCE/Trans 100 hours mission Lubrication‖ See ―16.MAI- 4.Rear Gear...
Page 92 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 pivot Shaft pivot shaft months or 50 grease with grease hours  7.Steering Grease Locate fitting on Every Post Bushings pivot shaft and months or 50 grease with grease hours  8.Front Wheel Grease Inspect and replace...
Page 93 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 16. MAINTENANCE Lubrication Recommendations  13.Rear Axle Grease Locate fittings Every 3 months Bearing and grease or 50 hours - 89 -...
Page 94 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0  14.Swing Grease Locate fittings Monthly or 20 and grease hours Bearing  15.Throttle Grease M Grease, inspect Monthly or 20 Cable and replace it if hours necessary NOTE: 1. More often under severe use, such as wet or dusty conditions .
Page 95 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Performed Person First 5 Hrs 10 Hrs 15 Hrs 20 Hrs 25 Hrs 50 Hrs 75 Hrs 100 Hrs 16. MAINTENANCE WARNING Improper adjustment of the handlebars or incorrect torquing of the adjuster block tightening bolts can cause limited steering or...
Page 96 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 possible serious personal injury or death. Handlebar Adjustment Your ATV has handlebars which can be adjusted for your personal fit. 1. Remove the handlebar cover. 2. Loosen the four bolts. 3. Adjust handlebar to desired height.
Page 97 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Front M10X1.25 20Ft.Lbs 27N.m Rear M12X1.25 50Ft.Lbs 69N.m Rear（（ALUMINIUM 69Ft.Lbs 95N.m WHEEL）） M12X1.25 NOTE: All nuts that have a cotter pin installed must be serviced by an authorized Dealer. Front Wheel Hub Tightening Front wheel bearing tightness and spindle nut retention are critical component operations.
Page 98 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Rear Spring Adjustment Air Filter Service 1. Remove seat. 2. Release clips and remove Cover. 3. Loosen clamp and remove Filter (for 300cc); 4. Remove fabric type prefilter from main filter. Wash pre-filter in soapy water and dry it.
Page 99 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Camber and Caster The camber and caster are non-adjustable. WARNING Do not attempt to adjust the tie rod for toe alignment. Severe injury or death can result from improper adjustment. Contact your dealer. He/she has the training and tools to Make these adjustment.
Page 100 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 moisture from the air. This causes the boiling temperature of the brake fluid to drop, which can lead to early brake fade and the possibility of serious injury. The front brake is hydraulic disc brakes which is depressing the foot pedal (also brake lever on handlebar for 300cc ATV) on the side of the right floorboard.
Page 101 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 by the same pedal (also brake lever on handlebar) which activates the front brake system is self adjusting and requires no maintenance other than periodic checks of the pads for wear  Pads should be changed when the friction material is worn to 3/64‖(1mm).
Page 102 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 1. With the engine off, loosen the adjustor① on the lever. 2. Loosen the jam nut of the adjuster on the caliper. 3. Turn the adjuster (bolt) CW (clockwise) by hand till the pad touch...
Page 103 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 lower mounting bolt hole and joint pin hole is 83±1mm.After adjustment,tighten the joint nut. Carburetor/ Engine Idle RPM Adjustment If the engine idle speed is not satisfactory, and all other conditions are favorable, the carburetor can be adjusted as follows: 1.
Page 104 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 1. Side the bolts off inline cable adjuster, Loosen adjuster locknut. 2. Turn adjuster until 1/16‖ to 1/8‖ (2 to 3mm) freeplay is achieved at thumb lever. NOTE: While adjusting freeplay, it is important you flip the throttle lever back and forth.
Page 105 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 WARNING Never attempt to remove a spark plug while the engine is warm. The exhaust system or engine could burn you causing severe injury. Remove the spark plug by rotating counterclockwise. Reverse the procedure for spark plug installation.
Page 106 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 CAUTION Oil may be hot. Do not allow hot oil to come into contact with skin as severe burns may result 1. Place vehicle on a level surface; 2. Run engine two or three minutes until warm, Stop engine;...
Page 107 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 The transmission fill plug is located on the right side of the machine. The transmission lubricant level should be checked monthly or 20 hours, whichever comes first. Transmission oil should be changed annually. With the ATV on a level surface, remove fill plug (1) and check the lubricant level.
Page 108 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 1. Remove the four screws on the footwall and gently pull outward for access. 2. Remove fill plug. 3. Remove transmission drain plug located on the bottom left hand side and drain the oil. Catch and discard used oil properly.
Page 109 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Which the ATV on the a level surface, remove fill plug and visually inspect the lubricant level through the fill hole(1).Lubricant should be kept even with the center of the drill point (2) approximately 1 5/8‖...
Page 110 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 be kept even with the center of the drill point approximately below the top of the fill hole. NOTE: Do not add lubricant to the bottom of the fill plug threads. The correct gear case lubricant to use is SAE GL-5 80W/90 Weight Gear Lube.
Page 111 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 handling which could cause an accident resulting in serious injury or death. Follow the safeguards listed below to prevent this type of situation. Important Safeguards Maintain proper tire pressure according to charts below. Improper tire inflation may affect ATV maneuverability.
Page 112 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 tire point toward forward rotation. 2. Attach the wheel nuts and finger tighten them. 3. Lower the vehicle to the ground. 4. Securely tighten the wheel nuts according to the chart found in ―16.MAINTENANCE/Wheel Nut Torque‖.
Page 113 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 can result in an accident causing severe injury or death. CAUTION Do not service while headlight is hot. Serious burns may result. Do not touch a halogen lamp with bare fingers. Oil from your skin leaves a residue, causing a hot spot which will shorten the life of the lamp.
Page 114 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 conducting strip in the socket. 3. Turning the headlight rear cover ① counterclockwise is to open the cover. 4. Change the bulb. Taillight /Brakelight Lamp Replacement If the taillight / brakelight does not work the lamp may need to be replaced.
Page 115 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 and make a mark on the wall at the same height. 3. Start the engine and turn the headlight switch to high beam. 4. Observe headlight aim. The most intense part of the headlight beam should be aimed 2.8’’ (71mm) below the mark placed on the wall in step 2.
Page 116 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 system. The best and safest way to clean your ATV is with a garden hose and a pail of mild soap and water. Use a professional type washing mitten, cleaning the upper body first and lower parts last.
Page 117 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Oil Add and Filter Change——Warm the engine and change oil and filter. Air Filter/Air Box——Inspect and clean or replace the pre-cleaner and air filter. Clean the air box and drain the sediment tube. Inspect All Fluid Levels——Inspect the following fluid levels and change if necessary: transmission;...
Page 118 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 4. Always tie the frame of the ATV to the transporting until securely using suitable straps or rope. 5. Always place the transmission in gear and lock the parking brake. 17. TROUBLE SHOOTING Issues of Improper Operation Driven Clutch (CVT) Burning...
Page 119 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 ground speed use of low range is highly recommended for approximately 3-7MPH/ cooler CVT operating temperatures and 5-12km/h） longer component life(for 300cc). Insufficient warm-up Warm engine at least 5 min., they with ATV’s exposed transmission in neutral, advance throttle to ambient temperatures.
Page 120 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 WARNING This 300cc ATV equipped with an electric start system. If the battery is under charging, the ATV will not run. 17. TROUBLE SHOOTING NOTE: The following troubleshooting does not cover all the possible causes of trouble. It should be helpful, however, as a guide to troubleshooting.
Page 121 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Carburetor Air cleaner Deteriorated fuel or fuel containing Clogged air cleaner Water or foreign material element Clogged pilot jet Improper air cleaner Clogged air passage setting Improperly set pilot air s crew Clogged pilot air passage Improperly sealed valve seat...
Page 122 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Broken or shorted primary/ Loose coupler connection Improperly grounded secondary coil Faulty high tension cord Broken wireharness Broken ignition coil body POOR IDLE SPEED PERFORMANCE Carburetor Air cleaner Loose or clogged pilot jet Clogged air cleaner element Damaged carburetor joint...
Page 123 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 broken Faulty pick up coil Cylinder gasket broken Carbon deposit buildup Fuel system Clogged fuel tank breather hole Improper adjusted valve Clogged air cleaner element clearance Clogged jet Improper contacted Improperly adjusted fuel level valve and valve seat Improper carburetor air vent hose Faulty valve timing...
Page 124 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Heavy carbon deposit build-up Improperly adjusted valve timing Improperly adjusted valve clearance Engine oil Incorrect engine oil level Improper engine oil quality (High viscosity) Low engine oil quality Brakes Dragging brake Cooling system Inoperative fan motor Faulty thermostat...
Page 125 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 CLUTCH SLIPPING CVT SYSTEM Clutch weight spring Uncorrect Primaty Clutch Position Worn/loose Uncorrect engine mount Clutch shoe (see 13. CVT system) Worn/ damaged Primary sliding sheave Seized POORSTARTING FAULTY BRAKE PERFORMANCE POOR BRAKING EFFECT Worn front hub bearing V-belt Slipping/oily V-belt...
Page 126 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 19. SPECIFICATION - 122 -...
Page 127 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Capacities Model LH300ATV-3D T3 Fuel capacity 4.2U.S.Gal Engine Oil Capacity 1.4L 1.32Quarts Ground Clearance 140mm 5.5 inch Height 1270mm 50 inch Length 2160mm 85inch Width 1140mm 44.8inch Seat height 890mm 35 inch Wheel Base 1215mm 47.8 inch...
Page 128 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Load permissible mass of the vehicle [kg] rating mass per axle [kg] tyre [kg] 175kg 267kg 461kg Tire Pressure(front) see detail on the mark of sidewall Tire Pressure(rear) see detail on the mark of sidewall...
Page 129 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 Engine Type LH173MN,4Stroke, Single Cylinder, SOHC Bore x Stroke 72.5mmX66.8mm Displacement 275CC Starter System Electric Starter Engine Cooling Liquid-Cooled Lubrication System Wet Sump Carburetor CVK32 Ignitions T.C.I Spark Plug Type DR8EA（NGK） Electrical Equipment 300cc Battery...
Page 130 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 - 126 -...
Page 131 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 OWNER’S/OPERATOR’S MANUAL 16.0 Europe PN.F010206A19 LH300ATV-3D T3 使用维修说明书（用户手册）中性英文版本 16.0 零件代号 F010206A19...
Page 132 OWNER’S/OPERATOR’S MANUAL ATV300-D T3b 16.0 OWNER’S/OPERATOR’S MANUAL 16.0 Europe...
