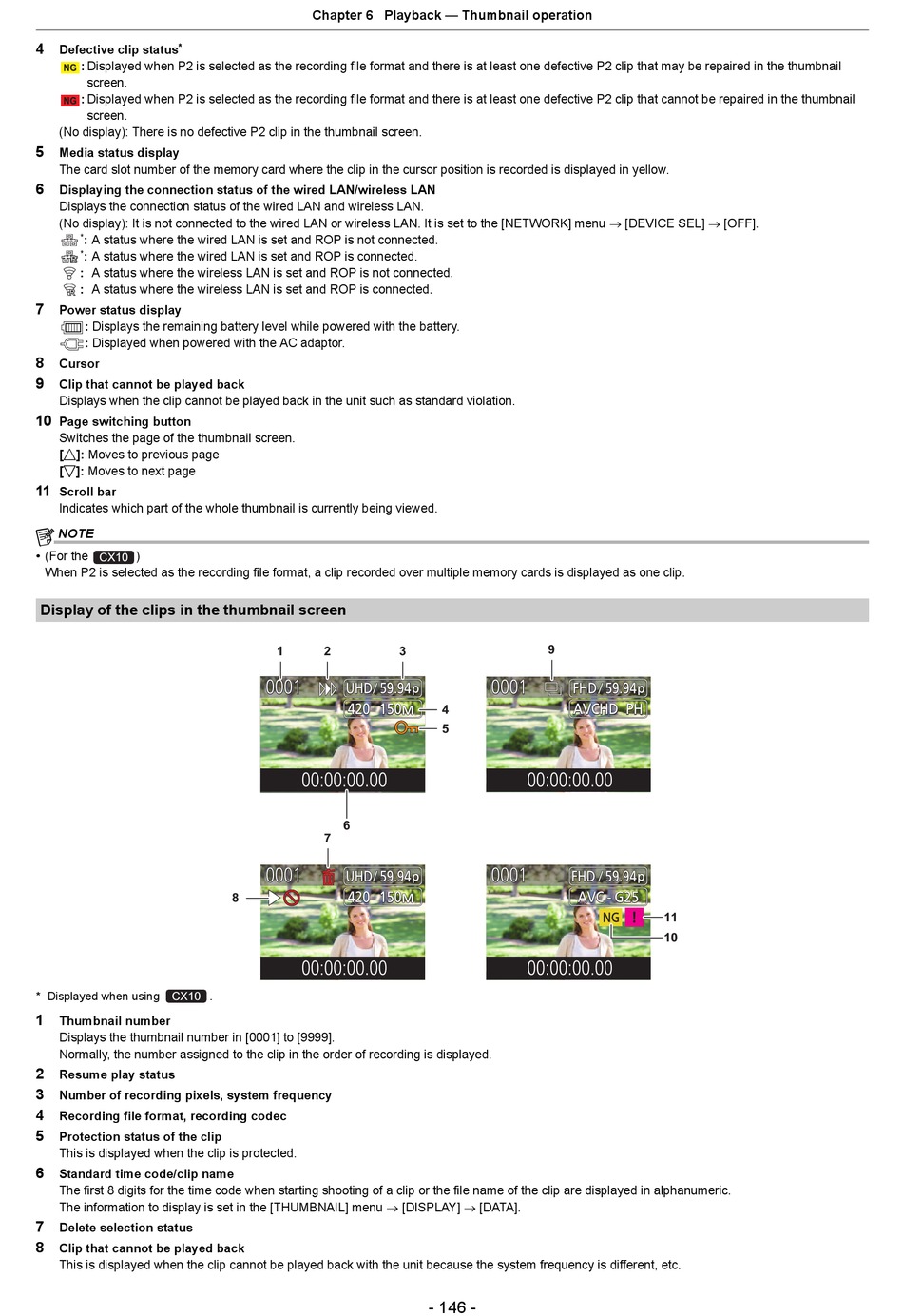

Panasonic AG-CX7 Operating Instructions Manual page 146

4
*
Defective clip status
: Displayed when P2 is selected as the recording file format and there is at least one defective P2 clip that may be repaired in the thumbnail
screen.
: Displayed when P2 is selected as the recording file format and there is at least one defective P2 clip that cannot be repaired in the thumbnail
screen.
(No display): There is no defective P2 clip in the thumbnail screen.
5
Media status display
The card slot number of the memory card where the clip in the cursor position is recorded is displayed in yellow.
6
Displaying the connection status of the wired LAN/wireless LAN
Displays the connection status of the wired LAN and wireless LAN.
(No display): It is not connected to the wired LAN or wireless LAN. It is set to the [NETWORK] menu → [DEVICE SEL] → [OFF].
*
: A status where the wired LAN is set and ROP is not connected.
* : A status where the wired LAN is set and ROP is connected.
: A status where the wireless LAN is set and ROP is not connected.
: A status where the wireless LAN is set and ROP is connected.
7
Power status display
: Displays the remaining battery level while powered with the battery.
: Displayed when powered with the AC adaptor.
8
Cursor
9
Clip that cannot be played back
Displays when the clip cannot be played back in the unit such as standard violation.
10
Page switching button
Switches the page of the thumbnail screen.
[`]: Moves to previous page
[{]: Moves to next page
11
Scroll bar
Indicates which part of the whole thumbnail is currently being viewed.
@ NOTE
0 (For the )
CX10
When P2 is selected as the recording file format, a clip recorded over multiple memory cards is displayed as one clip.
Display of the clips in the thumbnail screen
* Displayed when using
CX10
1
Thumbnail number
Displays the thumbnail number in [0001] to [9999].
Normally, the number assigned to the clip in the order of recording is displayed.
2
Resume play status
3
Number of recording pixels, system frequency
4
Recording file format, recording codec
5
Protection status of the clip
This is displayed when the clip is protected.
6
Standard time code/clip name
The first 8 digits for the time code when starting shooting of a clip or the file name of the clip are displayed in alphanumeric.
The information to display is set in the [THUMBNAIL] menu → [DISPLAY] → [DATA].
7
Delete selection status
8
Clip that cannot be played back
This is displayed when the clip cannot be played back with the unit because the system frequency is different, etc.
Chapter 6 Playback — Thumbnail operation
1 2
0001 0001
00:00:00.00 00:00:00.00
6
7
0001 0001
8
00:00:00.00 00:00:00.00
.
9
3
0001 0001
4
5
00:00:00.00 00:00:00.00
0001 0001
00:00:00.00 00:00:00.00
- 146 -
