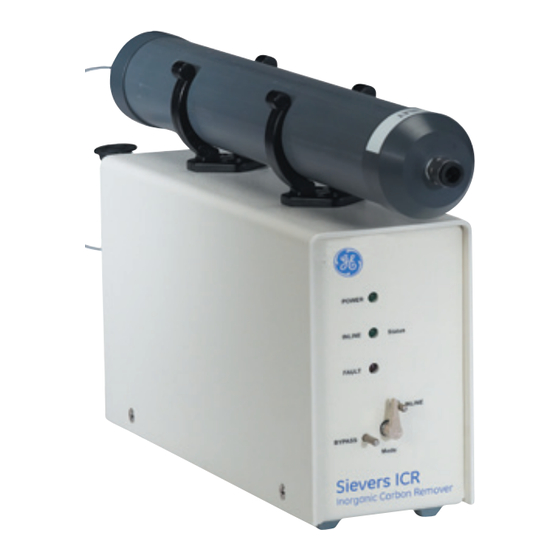

GE Sievers ICR 900 Quick Start Manual

Inorganic carbon remover
Table of Contents
  • Spezifikationen
  • Guide de Démarrage Rapide
  • Caractéristiques
  • Guida Rapida
  • Especificaciones
  • Guia de Início Rápido

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1
GE Power & Water
Water & Process Technologies
IMPORTANT NOTICE
For more detailed instructions, you can download the Sievers ICR Operation and
Maintenance Manual from our web site. Go to www.geinstruments.com, click
on Library, then Manuals, and make your selection. It's important that you have
the most recent firmware (Ethernet or non-Ethernet) when installing a new ICR.
To access the latest firmware please check http://www.geinstruments.com/
support/software---firmware-upgrades.

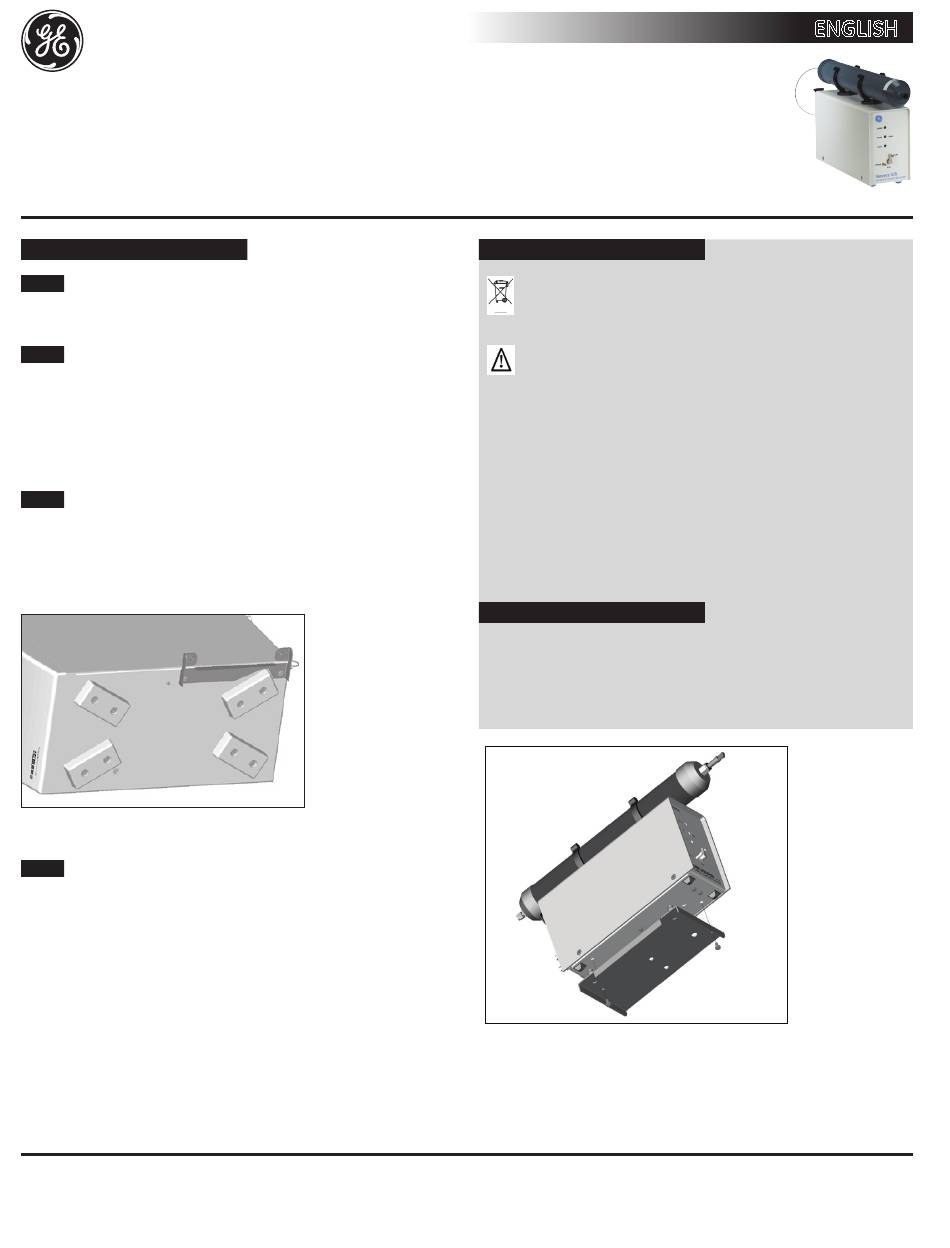

Installation Instructions
Step 1
Unpack and inspect the ICR.
Open the shipping box and inspect the ICR for any shipping damage. Please
contact GE Analytical Instruments immediately if there is any damage.
Step 2
Prepare the analyzer.
Prior to installing the ICR, do the following:
1. If the Analyzer is taking measurements, press the Stop Analysis button.
2. Turn off power to the Analyzer, using the main power switch.
3. Disable the sample inlet flow to the Analyzer.
4. If you have previously installed the Analyzer, disconnect the sample fittings.
You will need access to the bottom of the Analyzer during installation.
Step 3
Attach the Small Bracket to the Analyzer.
Secure the mounting bracket to the Analyzer with the two large Phillips-head
(crosshead) screws. The small bracket attaches to the bottom of the Analyzer.
When you view the bottom of the Analyzer, you will see two threaded holes
around the rear left foot. There is a rectangular notch in the mounting bracket
to accommodate the rubber Analyzer foot (see Figure 1).
Figure 1. Mounting Bracket
Step 4
Attach the ICR to the Large Mounting Bracket
1. Place the ICR on the large mounting bracket, using the white set pin to align
the bracket. The bracket is designed to sit on top of the set pin and two
screws located on the bottom of the ICR.
2. Secure the mounting bracket to the ICR with the two small Phillips-head
screws (see Figure 2).
Americas: T 888 245 2595, 303 444 2009 | geai@ge.com
Europe/Middle East/Africa: T 44 (0) 161 864 6800 | geai.europe@ge.com
Asia Pacific: geai.asia@ge.com
Sievers 900 Inorganic
Carbon Remover (ICR)
for 900 and 5310 C TOC Analyzers
Quick Start Guide
Warnings
This equipment should be disposed of separately from standard
waste. This symbol indicates that is how to comply with European
Union Directive 2002/96/EC for waste electrical and electronic
equipment (WEEE).
This symbol on the instrument indicates that the user should refer to
the manual for operating instructions.
Any operation requiring access to the inside of the equipment could result
in injury. To avoid potentially dangerous shock, disconnect from power supply
before opening the equipment.
Replace fuses with same type and rating for continued protection against
fire hazard.
If this instrument is used in a manner not specified by GE Analytical
Instruments USA, the protection provided by the instrument may be
impaired.
This is a Class A product. In a domestic environment, this product may
cause electromagnetic interference in which case the user may be required
to take adequate measures to correct the interference.
Cautions
Save the original packing materials. If for any reason you need to return
the Inorganic Carbon Remover (ICR), you MUST pack it in the original carton
to ensure that no damage occurs during shipment. There will be a charge
assessed for replacement packing materials required for return shipments
to and from the factory. Insure all instruments for the return shipment.
Figure 2. Attaching the ICR to the Large Bracket
www.geinstruments.com
©2011. General Electric Company. All Rights Reserved.
ENGLISH
DQS 34150-01 Rev. B
MC10-247
