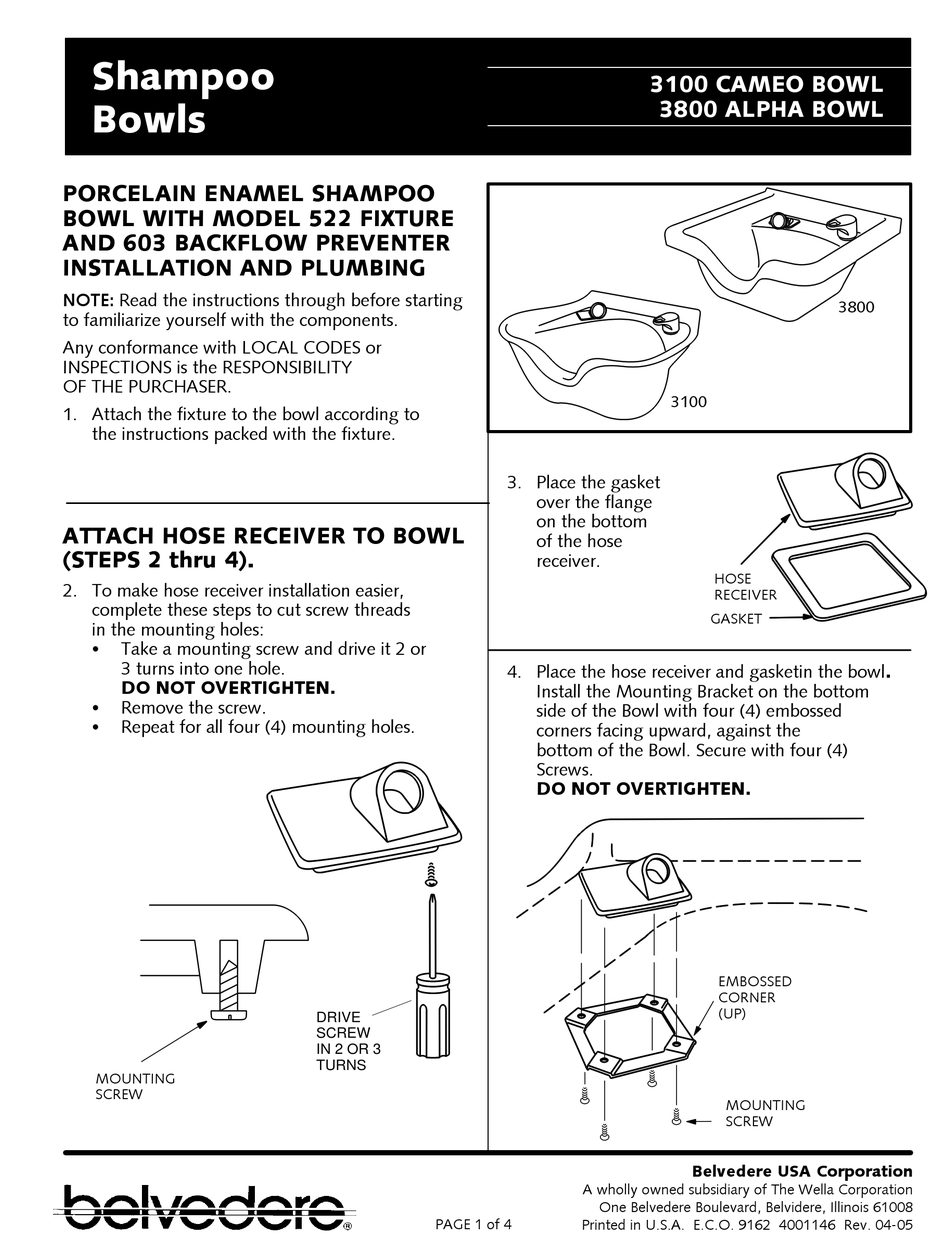

Belvedere 3100 CAMEO Manual

Shampoo
Bowls
PORCELAIN ENAMEL SHAMPOO
BOWL WITH MODEL 522 FIXTURE
AND 603 BACKFLOW PREVENTER
INSTALLATION AND PLUMBING
NOTE: Read the instructions through before starting
to familiarize yourself with the components.
Any conformance with LOCAL CODES or
INSPECTIONS is the RESPONSIBILITY
OF THE PURCHASER.
1. Attach the fixture to the bowl according to
the instructions packed with the fixture.
ATTACH HOSE RECEIVER TO BOWL
(STEPS 2 thru 4).
2. To make hose receiver installation easier,
complete these steps to cut screw threads
in the mounting holes:
S Take a mounting screw and drive it 2 or
3 turns into one hole.
DO NOT OVERTIGHTEN.
S Remove the screw.
S Repeat for all four (4) mounting holes.
MOUNTING
SCREW
DRIVE
SCREW
IN 2 OR 3
TURNS
PAGE 1 of 4
3100 CAMEO BOWL
3800 ALPHA BOWL
3100
3. Place the gasket
over the flange
on the bottom
of the hose
receiver.
4. Place the hose receiver and gasketin the bowl.
Install the Mounting Bracket on the bottom
side of the Bowl with four (4) embossed
corners facing upward, against the
bottom of the Bowl. Secure with four (4)
Screws.
DO NOT OVERTIGHTEN.
A wholly owned subsidiary of The Wella Corporation
One Belvedere Boulevard, Belvidere, Illinois 61008
Printed in U.S.A. E.C.O. 9162 4001146 Rev. 04-05
3800
HOSE
RECEIVER
GASKET
EMBOSSED
CORNER
(UP)
MOUNTING
SCREW
Belvedere USA Corporation
