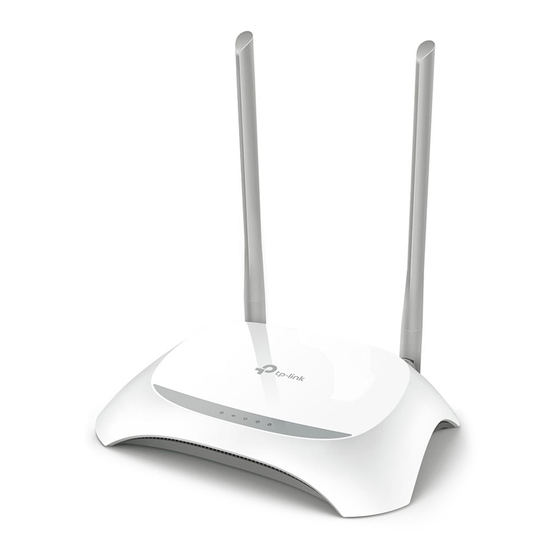

TP-Link TL-WR850N User Manual

300mbps wireless n router
Hide thumbs Also See for TL-WR850N:
Table of Contents

Advertisement

Quick Links

User Guide
300Mbps Wireless N Router
TL-WR850N
1910020832 REV2.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL-WR850N and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link TL-WR850N

Summary of Contents for TP-Link TL-WR850N

  • Page 1 User Guide 300Mbps Wireless N Router TL-WR850N 1910020832 REV2.0.0...

  • Page 2: Table Of Contents

    Contents About This Guide ......................1 Chapter 1. Get to Know Your Router ........2 1.
  • Page 3 8. 2. Share Local Resources over the Internet by Virtual Server ....37 8. 3. Open Ports Dynamically by Port Triggering ........38 8.
  • Page 4 11. 6. 3. Remote Management ..........76 11.

  • Page 5: About This Guide

    The Quick Installation Guide can be found where you find this guide or inside the package of the router. Specifications can be found on the product page at http://www.tp-link.com. A Technical Support Forum is provided for you to discuss our products at http://forum.tp-link.com.

  • Page 6: Chapter 1. Get To Know Your Router

    Chapter Get to Know Your Router This chapter introduces what the router can do and shows its appearance. This chapter contains the following sections: • Product Overview • Appearance...

  • Page 7: Product Overview

    Wi-Fi signal to all your devices while boosting widespread coverage throughout your home, and the built-in Ethernet ports supply high-speed connection to your wired devices. Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive web interface. 1. 2.

  • Page 8: Back Panel

    Chapter 1 Get to Know Your Router LED Explanation Name Status Indication The system has started up successfully. The system is starting up or the router is updating the firmware. Flashing (Power) Do not disconnect or power off the router. Power is off.
  • Page 9 Chapter 1 Get to Know Your Router The router’s back panel contains the connection ports, buttons and antennas. Refer to the following for detailed instructions. Item Description Power Port For connecting the router to a power socket via the provided power adapter. WAN Port For connecting the router to a DSL/Cable modem, or an Ethernet port.

  • Page 10: Chapter 2. Connect The Hardware

    Chapter Connect the Hardware This chapter contains the following sections: • Position Your Router • Connect Your Router...

  • Page 11: Position Your Router

    Chapter 2 Connect the Hardware 2. 1. Position Your Router • The product should not be located in a place where it will be exposed to moisture or excessive heat. • Place the router in a location where it can be connected to multiple devices as well as to a power source.
  • Page 12 Chapter 2 Connect the Hardware Power Wi-Fi Internet 6. Connect your computer to the router. • Method 1: Wired Turn off the Wi-Fi on your computer and connect the devices as shown below. Ethernet cable WPS/ POWER RESET • Method 2: Wireless 1 ) Find the SSID (Network Name) and Wireless Password printed on the label at the bottom of the router.
  • Page 13 Chapter 2 Connect the Hardware 2 ) Immediately press the WPS/RESET button on your router. WLAN TP-Link Home Office TP-Link_123 TP-Link_abc MyHome Test Close to TP-Link_5G WPS/ POWER RESET...

  • Page 14: Chapter 3. Log In To Your Router

    Chapter Log In to Your Router...
  • Page 15 Chapter 3 Log In to Your Router With a web-based utility, it is easy to configure and manage the router. The web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft the Internet Explorer, Mozilla Firefox or Apple Safari. Follow the steps below to log in to your router.

  • Page 16: Chapter 4. Set Up Internet Connection

    Chapter Set Up Internet Connection This chapter introduces how to connect your router to the internet. The router is equipped with a web-based Quick Setup wizard. It has necessary ISP information built in, automates many of the steps and verifies that those steps have been successfully completed.

  • Page 17: Use Quick Setup Wizard

    Chapter 4 Set Up Internet Connection 4. 1. Use Quick Setup Wizard The Quick Setup Wizard will guide you through the process to set up your router. Tips: If you need the IPv6 internet connection, please refer to the section of Set Up an IPv6 Internet Connection.
  • Page 18 Chapter 4 Set Up Internet Connection 2 ) If you choose Static IP, enter the information provided by your ISP in the corresponding fields. 3 ) If you choose PPPoE, enter the Username Password and choose Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection type you have chosen.

  • Page 19: Set Up An Ipv6 Internet Connection

    Chapter 4 Set Up Internet Connection 5 ) If you choose PPTP, enter the Username and Password, and select the Address Type provided by your ISP. Different parameters are needed according to the IP address type you selected. 5. Click Save to make the settings effective, and you can refer to Test Internet...

  • Page 20: More Operation Modes

    Chapter 4 Set Up Internet Connection 1. Visit http://tplinkwifi.net, and log in with the password you set for the router. 2. Go to Advanced > Network > Internet. 3. Select your WAN Interface Name (Status should be Connected) and click the (edit) icon.

  • Page 21: Configure The Router In Range Extender Mode

    Chapter 4 Set Up Internet Connection Internet Ethernet1Ethernet2 Ethernet3 Ethernet4 Ethernet Wired Router Router Devices 1. Connect the router’s WAN port to your wired router’s Ethernet port via an Ethernet cable as shown above. And power on the router. 2. Connect a computer to the router via an Ethernet cable or wirelessly by using the SSID (network name) and Wireless Password printed on the label at the bottom of the router.
  • Page 22 Chapter 4 Set Up Internet Connection 4. Go to Settings Advanced > Operation Mode, select Range Extender and click Save. Log in to the router via http://tplinkwifi.net after the router reboots. 5. Configure the basic settings of the wireless network. •...
  • Page 23 Chapter 4 Set Up Internet Connection 3 ) Enter the Password of the host network you selected, and click Save to make the settings effective. ¾ To specify the extended network: 1 ) Go to Settings > Wireless > Extended Network, and configure the basic settings of the extended network.
  • Page 24 Chapter 4 Set Up Internet Connection • Network Name (SSID): Enter a new SSID (up to 32 characters long) or just use the SSID of the default name copied from the host network. This field is case-sensitive. Do not select Hide SSID unless you want the client devices to join the network manually.

  • Page 25: Chapter 5. Parental Controls

    Chapter Parental Controls This function allows you to block inappropriate, explicit and malicious websites, and control access to specified websites at specified time.
  • Page 26 For example, I want to allow my children’s devices (e.g. a computer or a tablet) to access only www.tp-link.com and Wikipedia.org from 18:00 (6 PM) to 22:00 (10 PM) on the weekdays and not other time. How can I 1.
  • Page 27 Effective Time period. • With Whitelist selected, the controlled devices can only access websites containing the specified keywords during the Effective Time period. 7. Click Add a New Keyword and enter “www.tp-link.com” and “Wikipedia.org” as the keywords and click Save.
  • Page 28 Chapter 5 Parental Controls 8. You can add up to 32 keywords for either Blacklist or Whitelist. Below are some sample entries for your reference. • Whitelist: Enter a web address (e.g. wikipedia.org) to allow access only to its related websites. If you wish to block all Internet browsing access, do not add any keyword to the Whitelist.

  • Page 29: Chapter 6. Bandwidth Control

    Chapter Bandwidth Control This chapter describes how to use the Bandwidth Control function to control the bandwidth by configuring rules for limiting various data flows. In this way, the network bandwidth can be reasonably distributed and utilized. It contains the following sections: •...

  • Page 30: Configure The Bandwidth Control

    Chapter 6 Bandwidth Control 6. 1. Configure the Bandwidth Control Bandwidth Control allows you to configure the Upstream Bandwidth and Downstream Bandwidth of the network, follow the steps below to configure the bandwidth. 1. Visit http://tplinkwifi.net, and log in with the password you set for the router. 2.
  • Page 31 Chapter 6 Bandwidth Control 2. Enter a range of IP addresses and port numbers to be controlled. IP Range: The field can be a single IP address or IP address range according to your needs. If you set the IP Range to a single IP address, the computer with this IP address will get independent given bandwidth.

  • Page 32: Chapter 7. Network Security

    Chapter Network Security This chapter guides you on how to protect your home network from unauthorized users by implementing network security functions. You can block or allow specific client devices to access your wireless network using MAC Filtering, or using Access Control for wired and wireless networks, or you can prevent ARP spoofing and ARP attacks by using IP &...

  • Page 33: Firewall & Dos Protection

    Network Security Chapter 7 7. 1. Firewall & DoS Protection The SPI (Stateful Packet Inspection) Firewall and DoS (Denial of Service) Protection protect the router from cyber attacks. The SPI Firewall can prevent cyber attacks and validate the traffic that is passing through the router based on the protocol.

  • Page 34: Service Filtering

    Network Security Chapter 7 2. The protection will be triggered immediately when the number of packets exceeds the preset threshold value, and the vicious host will be displayed in the Blocked DoS Host List. 7. 2. Service Filtering With Service Filtering, you can prevent certain users from accessing the specified service, and even block internet access completely.

  • Page 35: Access Control

    Network Security Chapter 7 4. Select a Service Type from the drop-down list and the following four fields will be automatically filled in. Select Custom when your desired service type is not listed, and enter the information manually. 5. Specify the IP address(es) that this filtering rule will apply to. 6.
  • Page 36 Network Security Chapter 7 3. Select the access mode to either block (recommended) or allow the device(s) to access your network. To block specific device(s): 1 ) Select Blacklist and click Save. 2 ) Select the device(s) to be blocked in the Online Devices table (or click the under the...

  • Page 37: Ip & Mac Binding

    Network Security Chapter 7 3 ) Enter the Device Name Address. (You can copy and paste the information from Online Devices table if the device is connected to your network.) 4 ) Click Save. Done! Now you can block or allow specific client devices to access your network (via wired or wireless) by Blacklist or Whitelist.
  • Page 38 Network Security Chapter 7 3. Bind your device(s) according to your needs. To bind the connected device(s): 1 ) Select the device(s) to be bound in the List. 2 ) Click Bind to add to the Binding List. To bind the unconnected device: 1 ) Click in the Binding List...

  • Page 39: Chapter 8. Nat Forwarding

    TP-Link router includes four forwarding rules. If two or more rules are set, the priority of implementation from high to low is Virtual Servers, Port Triggering, UPnP and DMZ.

  • Page 40: Translate Address And Port By Alg

    Chapter 8 NAT Forwarding 8. 1. Translate Address and Port by ALG ALG (Application Layer Gateway) allows customized NAT (Network Address Translation) traversal filters to be plugged into the gateway to support address and port translation for certain application layer “control/data” protocols: FTP, TFTP etc. Enabling ALG is recommended.

  • Page 41: Share Local Resources Over The Internet By Virtual Server

    Chapter 8 NAT Forwarding 8. 2. Share Local Resources over the Internet by Virtual Server When you build up a server in the local network and want to share it on the internet, Virtual Server can realize the service and provide it to the internet users. At the same time virtual server can keep the local network safe as other services are still invisible from the internet.

  • Page 42: Open Ports Dynamically By Port Triggering

    Chapter 8 NAT Forwarding 4. Click Scan, and select HTTP. The external port, internal port and protocol will be automatically filled in. Enter the PC’s IP address 192.168.0.100 in the Internal IP field. 5. Click Save to save the settings. Tips: 1.

  • Page 43: Make Applications Free From Port Restriction By Dmz

    Chapter 8 NAT Forwarding address of the host. When the data from the internet returns to the external ports, the router can forward them to the corresponding host. Port triggering is mainly applied to online games, VoIPs and video players. Common applications include MSN Gaming Zone, Dialpad, Quick Time 4 players, and so on.

  • Page 44: Make Xbox Online Games Run Smoothly By Upnp

    Chapter 8 NAT Forwarding applications, like IP camera and database software, you can set the PC to be a DMZ host. Note: DMZ is most applicable when you don’t know which ports to open. When it is enabled, the DMZ host is totally exposed to the internet, which may bring some potential safety hazards.
  • Page 45 Chapter 8 NAT Forwarding such as multiplayer gaming, peer-to-peer connections, real-time communication (for example, VoIP or telephone conference), or remote assistance. Tips: 1. Only the application supporting UPnP protocol can use this feature. 2. UPnP feature needs the support of operating system (e.g. Windows Vista/ Windows 7/ Windows 8, etc. Some operating systems need to install the UPnP components).

  • Page 46: Chapter 9. Vpn Server

    Chapter VPN Server The VPN (Virtual Private Networking) Server allows you to access your home network in a secured way through internet when you are out of home. The router offers two ways to setup VPN connection: OpenVPN and PPTP (Point to Point Tunneling Protocol) VPN. OpenVPN is somewhat complex but with greater security and more stable.

  • Page 47: Use Openvpn To Access Your Home Network

    Chapter 9 VPN Server 9. 1. Use OpenVPN to Access Your Home Network In the OpenVPN connection, the home network can act as a server, and the remote device can access the server through the router which acts as an OpenVPN Server gateway.

  • Page 48: Use Pptp Vpn To Access Your Home Network

    Chapter 9 VPN Server 7. Click Save. 8. Click Generate to get a new certificate. Note: If you have already generated one, please skip this step, or click Generate to update the certificate. 9. Click Export to save the OpenVPN configuration file which will be used by the remote device to access your router.
  • Page 49 Chapter 9 VPN Server Note: Before you enable Server, we recommend you configure Dynamic DNS Service (recommended) or assign a static IP address for router’s WAN port and synchronize your System Time with internet. 3. In the Client IP Address filed, enter the range of IP addresses (up to 10) that can be leased to the devices by the PPTP VPN server.
  • Page 50 Chapter 9 VPN Server 4. Select Use my Internet connection (VPN). 5. Enter the internet IP address of the router (for example: 218.18.1.73) in the Internet address field. Click Next.
  • Page 51 Chapter 9 VPN Server 6. Enter the User name Password you have set for the PPTP VPN server on your router, and click Connect. 7. The PPTP VPN connection is created and ready to use.
  • Page 52 Chapter 9 VPN Server Tips: You can go to Advanced > > VPN Connections to view the clients that are currently connected to the PPTP VPN servers.

  • Page 53: Chapter 10. Customize Your Network Settings

    Chapter Customize Your Network Settings This chapter introduces how to change the default settings or adjust the basic configuration of the router using the web management page. It contains the following sections: • Configure LAN Settings • Configure IPv6 LAN Settings •...

  • Page 54: Configure Lan Settings

    Chapter 10 Customize Your Network Settings 10. 1. Configure LAN Settings 10. 1. 1. Change the LAN IP Address The router is preset with a default LAN IP 192.168.0.1, which you can use to log in to its web management page. The LAN IP address together with the Subnet Mask also defines the subnet that the connected devices are on.

  • Page 55: Use The Router As A Dhcp Server

    Chapter 10 Customize Your Network Settings 10. 1. 2. Use the Router as a DHCP Server You can configure the router to act as a DHCP server to assign IP addresses to its clients. To use the DHCP server function of the router, you must configure all computers on the LAN to obtain an IP Address automatically.

  • Page 56: Configure Ipv6 Lan Settings

    Chapter 10 Customize Your Network Settings when it accesses the DHCP server. If there are some devices in the LAN that require permanent IP addresses, please configure Address Reservation on the router for the purpose. Follow the steps below to reserve an IP address for your devices. 1.

  • Page 57: Configure The Dhcpv6 Server Address Type

    Chapter 10 Customize Your Network Settings 1 ) Select RADVD as the address type to make the router assign IPv6 address prefixes to hosts. Note: Do not select the Enable RDNSS Enable ULA Prefix check boxes unless required by your ISP. Otherwise you may not be able to access the IPv6 network.

  • Page 58: Set Up A Dynamic Dns Service Account

    Chapter 10 Customize Your Network Settings 1 ) Select DHCPv6 Server as the address type to make the router assign IPv6 addresses to hosts. 2 ) Specify the Starting/Ending IPv6 Address for the IPv6 suffixes. The router will generate IPv6 addresses within the specified range. 3 ) Keep Address Lease Time as the default setting.

  • Page 59: Create Interface Groups

    Chapter 10 Customize Your Network Settings 4. Log in with your DDNS account, select a service provider and click Go to register ... Enter the username, password and domain name of the account (such as lisa.ddns. net). 5. Click Log in and Save.

  • Page 60: Create Static Routes

    Chapter 10 Customize Your Network Settings 3. Click to create a new group. 4. Name the group. 5. Select LAN1 and LAN3 in Available LAN. Wireless network Wi-Fi 2.4G is viewed as a LAN interface. 6. Select the Enable Group Isolation check box to isolate working devices and disallow other devices from communicating with them.
  • Page 61 Chapter 10 Customize Your Network Settings Router A Router B Company’s Server WAN: 172.30.30.100 LAN: 192.168.0.1 LAN: 192.168.0.2 172.30.30.1 Switch My PC 192.168.0.100 How can I 1. Make sure the routers use different LAN IP addresses on the do that? same subnet.
  • Page 62 Chapter 10 Customize Your Network Settings • Network Destination: The destination IP address that you want to assign to a static route. This IP address cannot be on the same subnet with the WAN IP or LAN IP of the Router A. In the example, the IP address of the company network is the destination IP address, so here we enter 172.30.30.1.

  • Page 63: Set Up The Ipv6 Tunnel

    Chapter 10 Customize Your Network Settings 10. 6. Set Up the IPv6 Tunnel The IPv6 Tunnel feature helps you obtain IPv6 resources based on an IPv4 WAN connection or vice versa. IPv6 Tunnel is a transition mechanism that enables IPv6-only hosts to reach IPv4 services or vice versa and allows isolated IPv6 hosts and networks to reach each other over IPv4-only infrastructure before IPv6 completely supplants IPv4.

  • Page 64: Specify The 6Rd Tunnel With Parameters Provided By Your Isp

    Chapter 10 Customize Your Network Settings 10. 6. 2. Specify the 6rd Tunnel with Parameters Provided by Your ISP I want to: Specify the 6rd tunnel with the parameters provided by my 6rd tunnel service provider. How can I How can I 1.

  • Page 65: Specify Wireless Settings

    Chapter 10 Customize Your Network Settings 10. 7. Specify Wireless Settings 10. 7. 1. Change Basic Wireless Settings The router’s wireless network name (SSID) and password, and security option are preset in the factory. The preset SSID and password can be found on the product label. You can customize the wireless settings according to your needs.
  • Page 66 Chapter 10 Customize Your Network Settings 2. Select the wireless network mode or channel and click Save to make the settings effective. Mode: Select the desired transmission mode. • 802.11n only: Select only if all of your wireless clients are 802.11n devices. •...

  • Page 67: Advanced Wireless Settings

    Chapter 10 Customize Your Network Settings 10. 7. 2. Advanced Wireless Settings Advanced wireless settings are for those who want more network controls. You can follow the instructions below to configure your router. 1. Visit http://tplinkwifi.net, and log in with the password you set for your router. 2.
  • Page 68 Chapter 10 Customize Your Network Settings Note: If you are not familiar with the settings on this page, it’s strongly recommended that you keep the provided default values; otherwise it may result in lower wireless network performance. ¾ To enable WDS bridging function: Locate the section and select the Enable WDS Bridging...

  • Page 69: Schedule Your Wireless Function

    Chapter 10 Customize Your Network Settings 3 ) Select the Security option for the guest-SSID network, WPA/WPA2 Personal recommended, and you can set a password for the network. If you want to allow the wireless devices on the guest-SSID network to communicate with each other via methods such as network neighbors, Samba, Ping, and FTP, select the Allow Guests to Access Each Other...

  • Page 70: View Wireless Information

    Chapter 10 Customize Your Network Settings 2. The wireless LED will turn off if the corresponding wireless network is disabled. 3. The wireless network will be automatically turned on after the time period you set. 10. 7. 4. View Wireless Information ¾...
  • Page 71 Chapter 10 Customize Your Network Settings 4. When the WPS LED is on, the client device has successfully connected to the router. Method 2: Use the WPS button on the web management page Use this method if your client device has a WPS button. 1.
  • Page 72 Chapter 10 Customize Your Network Settings 2. The WPS function cannot be configured if the wireless function of the router is disabled. Please make sure the wireless function is enabled before configuring WPS. Method 4: Enter the client device’s PIN on the router 1.

  • Page 73: Chapter 11. Manage Your Router

    Chapter Manage Your Router This chapter introduces how to change the system settings and administrate your router’s network. This chapter contains the following sections: • Set System Time • Test Internet Connectivity • Update the Firmware • Back Up and Restore Configuration Settings •...

  • Page 74: Set System Time

    Chapter 11 Manage Your Router 11. 1. Set System Time System time is the time displayed while the router is running. The system time you configure here will be used for other time-based functions like Parental Controls and Wireless Schedule. You can manually set how to get the system time. Follow the steps below to set your system time.

  • Page 75: Test Internet Connectivity

    Chapter 11 Manage Your Router 11. 2. Test Internet Connectivity Diagnostics function is used to test the connectivity between the router and the host or other network devices. 1. Visit http://tplinkwifi.net, and log in with the password you set for your router. 2.

  • Page 76: Update The Firmware

    3. DO NOT turn off the router during the firmware upgrade. You can follow the steps below to manually update the firmware. 1. Download the latest firmware file for the router from our website www.tp-link.com. 2. Visit http://tplinkwifi.net, and log in with the password you set for the router.

  • Page 77: Back Up And Restore Configuration Settings

    Chapter 11 Manage Your Router 11. 4. Back Up and Restore Configuration Settings The configuration settings are stored as a configuration file in the router. You can back up the configuration file to your computer for future use and restore the router to a previous settings from the backup file when needed.

  • Page 78: Reboot The Router

    Chapter 11 Manage Your Router 11. 5. Reboot the Router The Reboot feature cleans the cache to enhance the running performance of the router. You can reboot the router manually or set it to reboot regularly. 1. Visit http://tplinkwifi.net, and log in with the password you set for the router. 2.

  • Page 79: Administration Management

    Chapter 11 Manage Your Router Note: The Auto Reboot feature takes effect based on the router’s system time. Please make sure you have already set up the time of the router. 11. 6. Administration Management 11. 6. 1. Change the Login Password A login password is required to log in to the router’s web management page.

  • Page 80: Remote Management

    Chapter 11 Manage Your Router 3. Enable Local Management over HTTPS and keep the Port for HTTP Port for HTTPS as the default settings. Enter the IP address MAC address of the local device to manage the router. 4. Click Save. Now, you can manage the router over both HTTP (http://tplinkwifi.net) and HTTPS (https://tplinkwifi.net).

  • Page 81: Http Referer Head Check

    Chapter 11 Manage Your Router 3. Enable Remote Management Remote Management via HTTPS to allow for HTTPS connection. Keep the Port as the default setting. 4. Set the client device allowed for remote management. Select to allow all remote devices to manage the router. If you just want to allow a specific device to manage the router, select Only the Following IP/MAC Address and enter the IP/MAC address...

  • Page 82: Icmp Ping

    Chapter 11 Manage Your Router 3. Clear the Enable check box and click Save if you want to disable this function. 11. 6. 5. ICMP Ping ICMP (Internet Control Message Protocol) Ping is used to diagnose the network by sending ICMP echo request packets to the target remote or local host and waiting for an ICMP response.
  • Page 83 Chapter 11 Manage Your Router ¾ To view the system logs: You can view specific system logs by selecting the log type and level. Click Refresh to refresh the log list. ¾ To save the system logs: You can save the system logs to your local computer or a remote server. Click Save Log to save the logs in a txt file to your computer.

  • Page 84: Cwmp Settings

    Chapter 11 Manage Your Router 11. 8. CWMP Settings The router supports CWMP (CPE WAN Management Protocol), also called TR-069. This collects information, performs diagnostics and configures the devices automatically via ACS (Auto-Configuration Server). 1. Visit http://tplinkwifi.net, and log in with the password you set for the router. 2.

  • Page 85: Snmp Settings

    Chapter 11 Manage Your Router • Display SOAP messages on serial console: Enable or disable this function. • Connection Request Authentication: Select this check box to enable authentication for the connection request. • Username/Password: Enter the username/password for the ACS server to log in to the router.

  • Page 86: Monitor The Internet Traffic Statistics

    Chapter 11 Manage Your Router • SNMP Agent/SNMP Agent for WAN: Turn on to enable the built-in SNMP agent that allows the router to operate as the operational role in receiving and processing of SNMP messages, sending responses to the SNMP manager, and triggering SNMP traps when an event occurs.
  • Page 87 Chapter 11 Manage Your Router 2. Go to Advanced > System Tools > Statistics. 3. Turn on Enable Traffic Statistics to enable traffic statistics function, you can view the total number of packets and bytes received and transmitted by the router within the selected Statistics Interval.

  • Page 88: Faq

    Q1. What should I do if I forget my wireless password? The default wireless password is printed on the label of the router. If the password has been changed: 1. Connect your computer to the router using an Ethernet cable. 2.
  • Page 89 4 ) Click LAN settings and clear the following three options and click OK. 5 ) Go to Advanced > Restore advanced settings, click to save the settings.
  • Page 90 • Use another web browser or computer to log in again. • Reset the router to factory default settings and try again. If login still fails, please contact the technical support. Note: You’ll need to reconfigure the router to surf the internet once the router is reset. Q4.
  • Page 91 2 ) Click Save to make the settings effective. Note: Log in to the web management page again if the IP address of the router is altered. 3. Select the SSID to be bridged: 1 ) Go to Advanced > Wireless >...
  • Page 92 3 ) Click the connect icon and then the SSID and MAC will be automatically filled in. If the root router has wireless password, you should enter the wireless password of the root router. 4 ) Click Save to make the settings effective. 4.
  • Page 93 Note: • The extended router can have different SSID and password from the root router, you can change your router’s SSID and password on Basic > Wireless page. • You can also bridge a network manually: enter the SSID (network name) and MAC Address of the network to be bridged.
  • Page 94 • Restart the modem and the router. 1 ) Power off your modem and router, and leave them off for 1 minute. 2 ) Power on your modem first, and wait about 2 minutes until it gets a solid cable or Internet light.
  • Page 95 • Modify the LAN IP address of the router. Note: Most TP-Link routers use 192.168.0.1/192.168.1.1 as their default LAN IP address, which may conflict with the IP range of your existing ADSL modem/router. If so, the router is not able to communicate with your modem and you can’t access the internet.
  • Page 96 2 ) Power on your modem first, and wait about 2 minutes until it get a solid cable or Internet light. 3 ) Power on the router. 4 ) Wait another 1 or 2 minutes and check the internet access. •...
  • Page 97 2 ) Exit the wireless configuration tool (the TP-Link Utility, for example). 3 ) Select and right click on...
  • Page 98 Wireless Password/Network Security Key, usually you can only find it on the label of your router. 2 ) If you cannot find the PIN or PIN failed, you may choose Connecting using a security key instead, and then type in the Wireless Password/Network Security Key.
  • Page 99 Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.
  • Page 100 Component Name Model I.T.E POWER SUPPLY AMS195-0900600FU Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: sales.usa@tp-link.com...
  • Page 101 The device is restricted in indoor environment only. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
  • Page 102 Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15.
  • Page 103 OPERATING FREQUENCY(the maximum transmitted power) 2400 MHz - 2483.5 MHz (20dBm) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/ EC and 2011/65/EU. The original EU declaration of conformity may be found at http://www.tp-link.
  • Page 104 Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Déclaration d’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.
  • Page 105 限用物質含有情況標示聲明書 限用物質及其化學符號 產品元件名稱 鉛 鎘 汞 六價鉻 多溴聯苯 多溴二苯醚 CrVI PBDE ○ ○ ○ ○ ○ ○ 外殼 ○ ○ ○ ○ ○ ○ − 電源適配器 ○ ○ ○ ○ ○ 備考1. 超出0.1 wt %” 及 “超出0.01 wt %” 系指限用物質之百分比 含量超出百分比含量基準值。...
  • Page 106 Explanations of the symbols on the product label Symbol Explanation DC voltage Indoor use only RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/ EU in order to be recycled or dismantled to minimize its impact on the environment.
