Installing
the External
Cabling and
Liquid
Control
Module
Step-by-Step for
Installing the
External Cabling
and Liquid
Control Module
Page 10 of 13
Apache AS715/1010/1210 (MY 2009-2010)
Parts required for procedure:
From Direct Command Kit:
• (1) Hardware Kit – Large Module
• (1) CAN Y-Splice
• (1) CAN Bus Terminator
• (1) Liquid Control Module
• (1) CAN Bus Stub – 8 in.
• (1) Flow Control Cable
• (1) Implement Plug
• (1) 10 Section Boom Cable
• (1) Hi-Current Power/CAN Bus Ext.
1. Connect the 2 pin Deustch Receptacle on the Hi-Current
Power/CAN Bus Extension Cable, PN: 4001808-24, to the
mating plug on the Power Cable
2. Connect the Round 4 pin connector on the same end of the
extension cable into the Black Side of the Y-Splice installed
previously.
3. Route the opposite end of the extension cable out of the cab
through the hole in the floor next to the power studs shown in the
picture below.
4. Route the extension cable along the chassis towards the back of
the sprayer, and up the back of the boom along existing cabling
and sprayer plumbing and into the enclosure located on the
center of the boom.
December 2013
DirectCommand

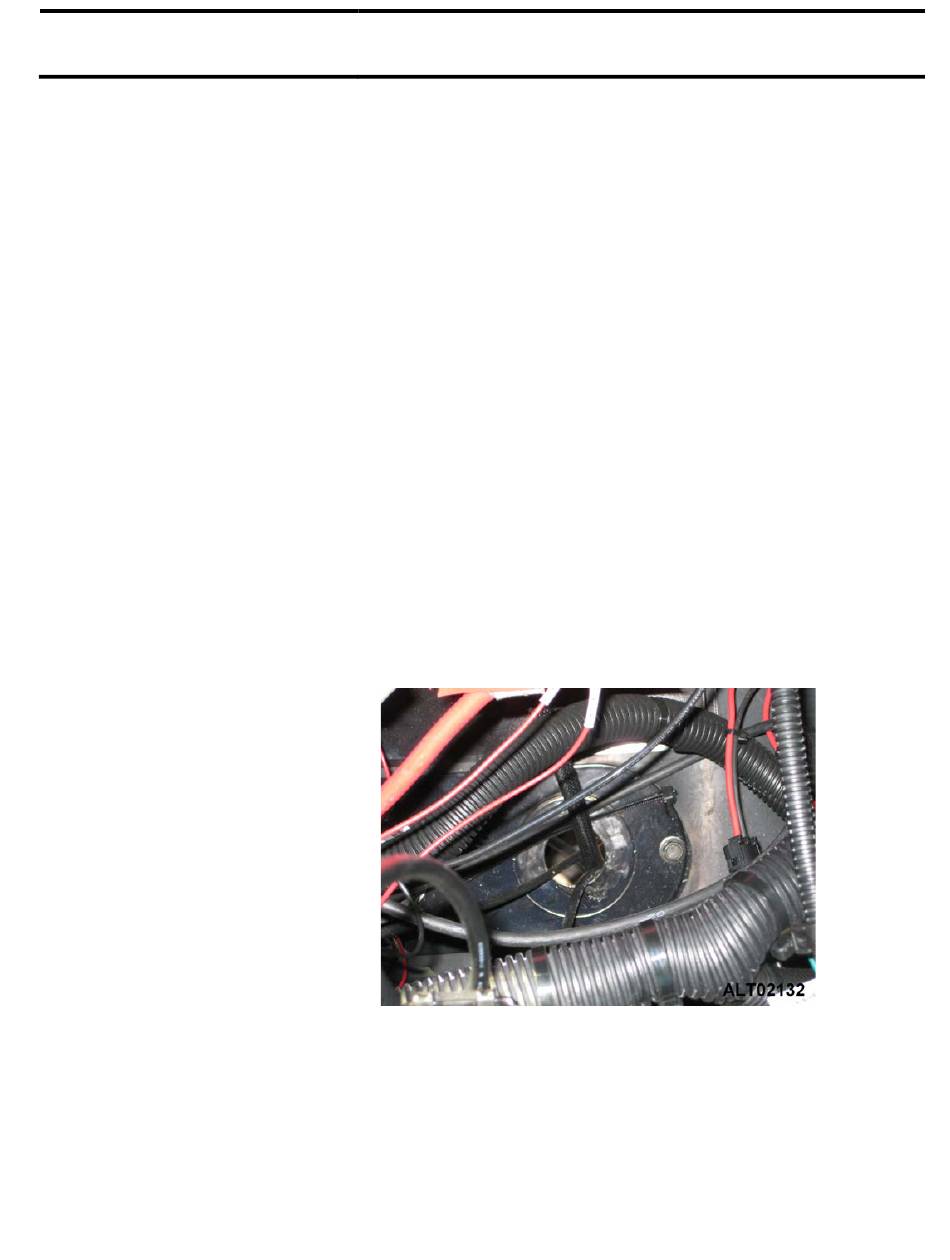

Hole in floor for routing cables
Installation
PN: 2001354-1
PN: 4000137
PN: 4000141
PN: 4000394
PN: 4000450-1
PN: 4000451-6
PN: 4000495-1
PN: 40001792-6
PN: 4001808-24
PN: 2005943 Rev. D
