Attaching the Camera Shroud

After you lock the camera in place, attach the camera shroud to the mounting adapter, by completing the
following steps:
Note: This process is the same for both surface and in-ceiling mounted cameras. Surface mount is
shown in the following figures.

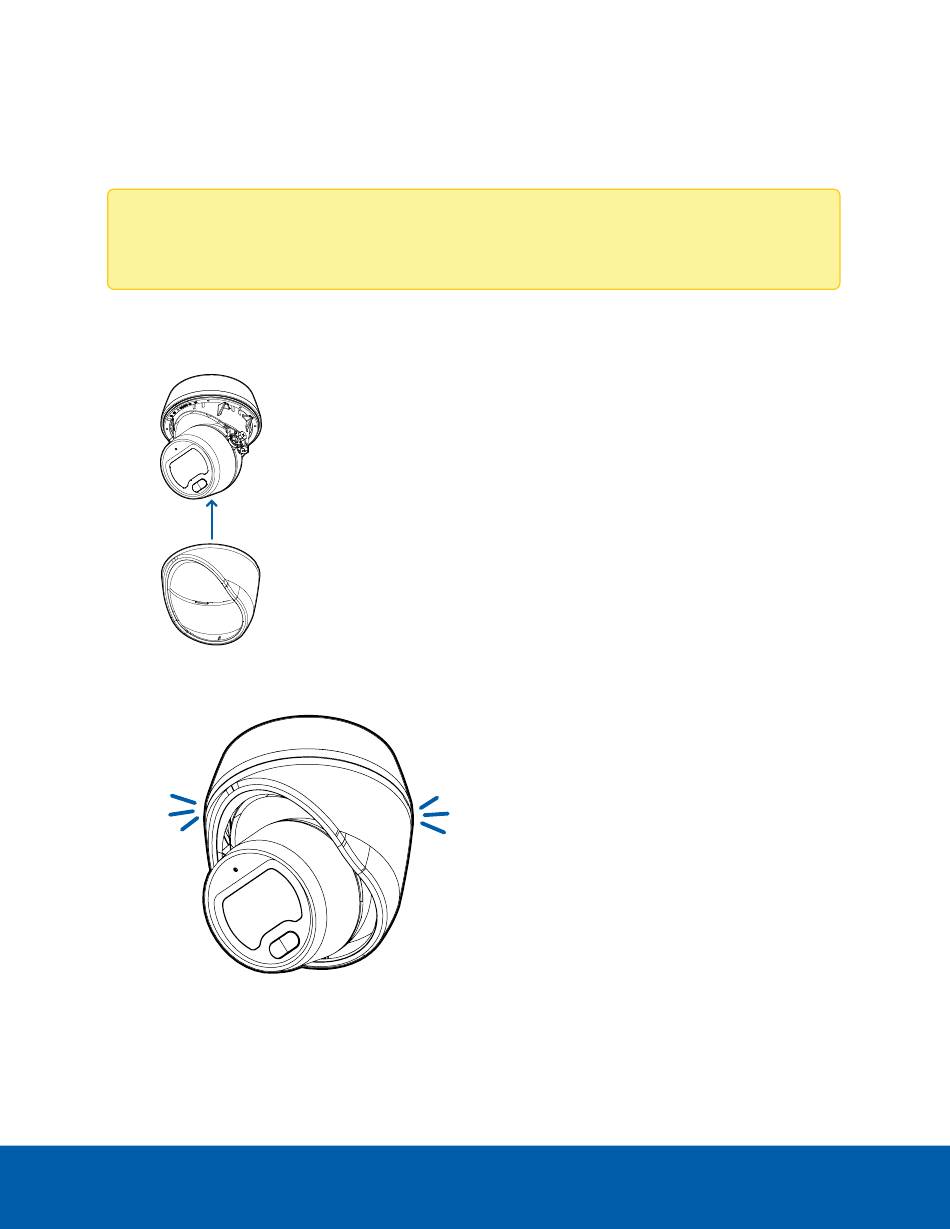

1. Align the opening in the camera shroud with the camera lens viewer.
2. Slide the shroud over the camera body.
3. Press on both sides of the shroud to click it into place in the mounting adapter.

Configuring the Camera

Once installed, use one of the following methods to configure the camera:
