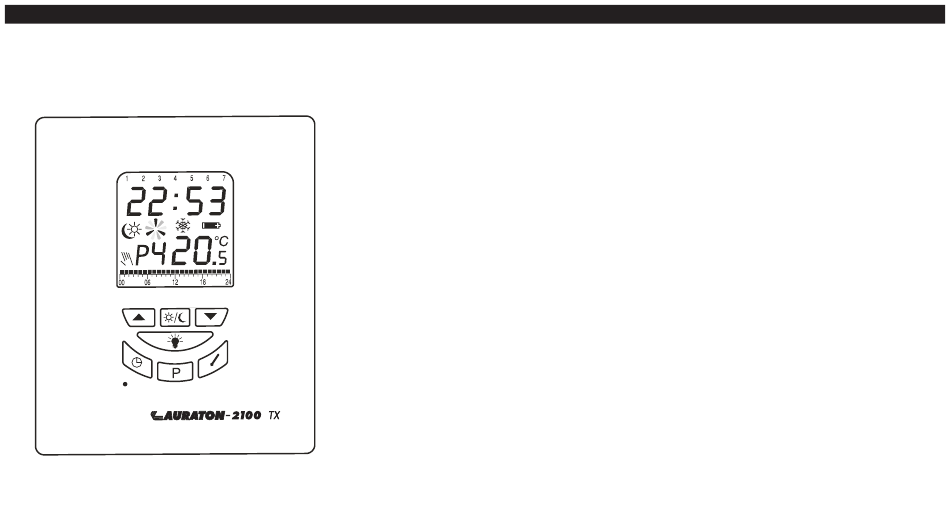

- Page 1 ARATON 2100 TX AURATON 2100 TX Advanced Remote Control Programmable Thermostat...
- Page 2 Unlike those ordinary single unit design thermostat, AURATON 2100 TX is a new type of thermostat separating the thermostat function into two units. The Receiver serves for wiring connections and heat/cool on/off control.
- Page 3 ARATON 2100 TX 1.2) LCD 1. Heat / Cooler on icon 2. Comf. icon 3. Econ. icon 4. Program number 5. Manual Override Icon 6. Day Indicator 7. Clock 8. Anti-freezing icon 9. Battery low icon 10. Temperature 11. Control profile bar...
- Page 4 ARATON 2100 TX Connect to 1.3) Outlook of Receiver Heating /Cooling Device Front Cover Connect to Live Connect to Neutral 1.4) Features Several useful function and operating modes have been incorporated to adapt a variety of customer Front View needs besides all the features associated with the state of the art programmable thermostat.
- Page 5 ARATON 2100 TX - Link with the Receiver via RF. Control distance 1.6) Receiver 100M open site - Linked with Control Center via RF - LCD shows the "need to know" information only, - Power control rating up to 230VAC 16A resistive which is more easy to understand - Powered by line voltage only.
- Page 6 4. Qualified electrician is recommended for If there is another user nearby, e.g. in the next installation and servicing house, installs the same AURATON 2100 TX unit, your receiver may be fault triggered by his/her transmitter. You may select a different RF address This thermostat has been designed for simple and code to prevent this.
- Page 7 ARATON 2100 TX 3. Remove one or more of the jumper cap as shown in the diagram below. Remove one or more of Caution : the jumper cap to adjust RF address code. 1. Address code of Control Center must be the...
- Page 8 ARATON 2100 TX WARNING: 2.3) Removing your old thermostat After removing the wall plate, if you find that it is mounted on a junction box (e.g. a box CAUTION: to avoid electric shock, turn off the similar to one behind a light switch or electric...
- Page 9 ARATON 2100 TX Choosing a Location 6. Fasten securely the Receiver to the wall with the two screws. Note: for a new installation, choose a mounting 7. Cover up the unit with the front cover and location about five feet (1.5 meter) above the floor installation is completed.
- Page 10 ARATON 2100 TX 2.7) Wiring Diagram III. SETTING OF CONTROL CENTER The AURATON 2100 TX thermostat can be used with 3.1) Heater/Cooler Selection any single stage heating or cooling system. Before making any selection in the control center, Wire connection is as follows :...
- Page 11 ARATON 2100 TX Inside the Control Center after back housing is 3.2) Temperature Span Selection removed, you can find the DIP switch. These three Span is the temperature difference between the switches are used to control the span and heat/cool turn on temperature and turn off temperature.
- Page 12 ARATON 2100 TX 3.3) Battery Installation 3.4) Setting Clock Your thermostat is using two (2) 1. Press the button to clear all digits except the "AA" size batteries to operate. day indicator and the time display. The Day To power-up the unit, insert two indicator is flashing.
- Page 13 ARATON 2100 TX 3.5) Setting Control Temperature 1. Press the SET TEMPERATURE ( ) button to display the pre-defined set temperature. 2. Press the CONF/ECON ( ) button to toggle between the setting of economic mode and comfortable mode. 3. Press the button to increase / decrease the set temperature by 0.5°C.
- Page 14 ARATON 2100 TX 3.6) Setting Program Program profile Program number I - Select Week-Day Program 1: Factory preset 1. Press the SET PROGRAM ( ) button, the day "Whole day comfort" indicator shows the program day and is flashing. Program number indicator shows the...
- Page 15 ARATON 2100 TX 3. If any of these programs is selected, press the 5. Press the button will terminate the setting SET PROGRAM ( ) button again to confirm this procedure and back to normal operation mode. program for the specified day and back to normal operation mode.
- Page 16 ARATON 2100 TX IV. TESTING THE RF TRANSMISSION V. TEMPORARY OVERRIDE RANGE 5.1) Override the Operation Mode 1. Press UP ( ) button until the setpoint At the normal operation mode, press the temperature is higher than room temperature by...
- Page 17 ARATON 2100 TX 5.2) Override the Setting Temperature VI. ANIT-FREEZING MODE 1. At the normal operation mode, the current set 1. Pressing the buttons simultaneously temperature can be override by pressing the will activate the anti-freezing mode (for heater button. When override, the new set mode only).
- Page 18 ARATON 2100 TX VII. BACK- LIGHT IX. POWER SWITCH Press the BACK-LIGHT ( ) button will turn on There is a power switch on the Receiver. When the backlight. The back-light will be off when no there is no demand to turn on the heating / cooling button is pressed for 10 seconds.
- Page 19 ARATON 2100 TX Temp. accuracy: XI. SPECIFICATION +/- 1°C at 20°C Physical Characteristic Temperature Control: Size: 7°C to 30°C in step of 0.5°C Control Center 116 x 100 x 23.5 mm Span: Receiver 91.5 x 91.5 x 42 mm 1,2,3 or 4°C...
