Installation Instructions
PS60 - Plasma Swivel Bracket
Design Highlights
-Unique Scissor Design Allows Easy One Handed Operation
-Solid Steel Construction Holds Screen Securely
-Bi-Directional Swivel up to 45 Degrees in Either Direction
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 004
Advertisement
Table of Contents
Related Manuals for Future Automation PS60
Summary of Contents for Future Automation PS60
-
Page 1: Installation Instructions

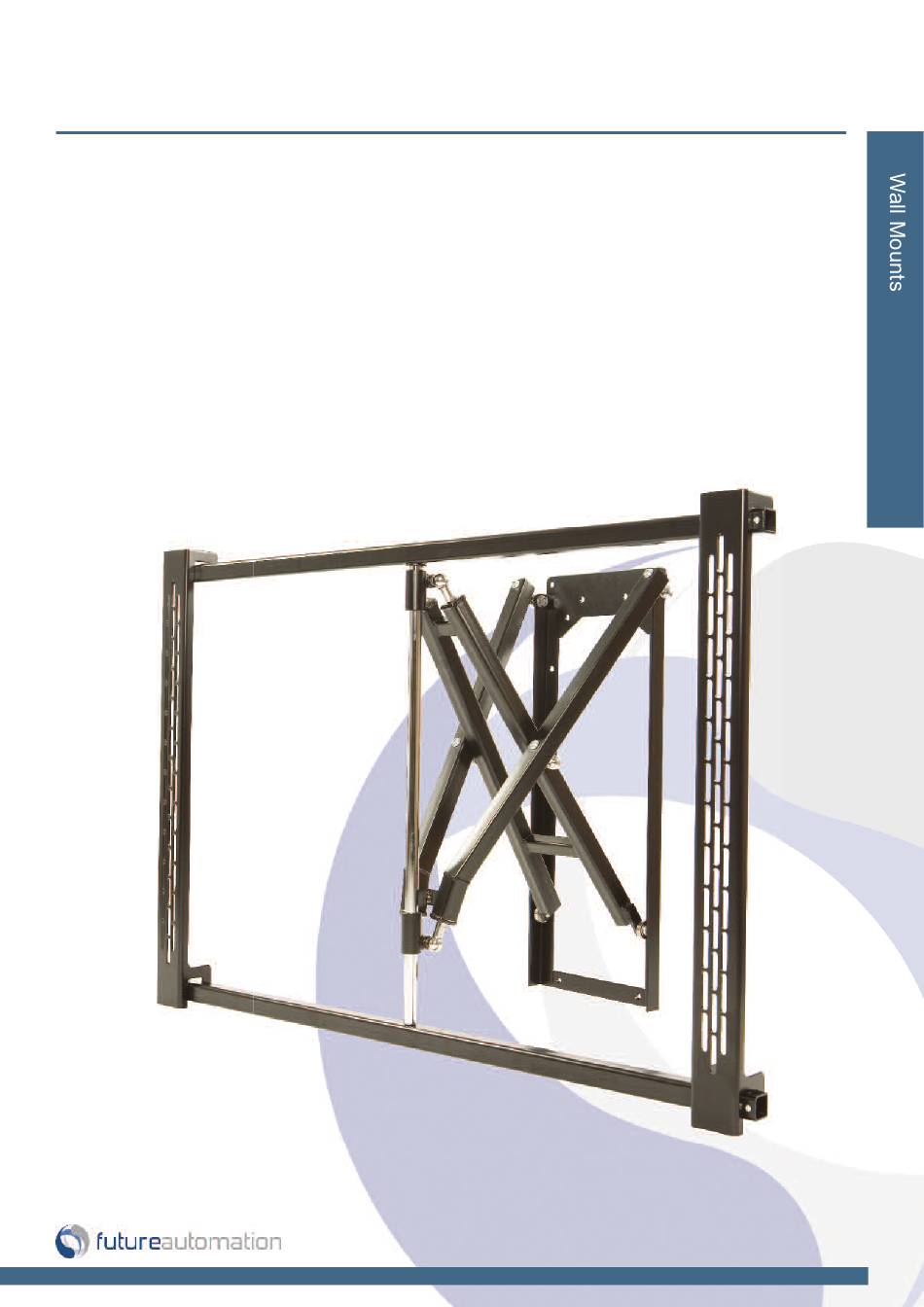

Installation Instructions PS60 - Plasma Swivel Bracket Design Highlights -Unique Scissor Design Allows Easy One Handed Operation -Solid Steel Construction Holds Screen Securely -Bi-Directional Swivel up to 45 Degrees in Either Direction Thank you for choosing futureautomation email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... -
Page 2: Safety Information
Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
PS60 - Plasma Swivel Bracket Contents Page Introduction Safety Information Contents Contents Tool Indicator Icons Installation Parts List Package Contents Stage 1 Before You Start Check Frame Construction Stage 2 Upright Adjustment & Mounting Stage 3 Mounting the Uprights to the Screen... -
Page 4: Contents
Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. -
Page 5: Parts List
1.1 - Wall Plate 1.2 - Scissor Arms 1.3 - Cross Members 1.4 - Uprights PS60 Plasma Swivel Bracket for 55” - 70” Screens Page 4 of 12 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... -
Page 6: Before You Start Check
PS60 - Plasma Swivel Bracket Before You Start Prior to installation check the following: Hook uprights over -The product is in good condition cross members -No damage to any parts -The bracket is in the closed position Tighten set screw... -
Page 7: Upright Adjustment & Mounting
PS60 - Plasma Swivel Bracket Upright adjustment and mounting Firstly, place the screen face down on a flat suitable surface, such as carpeted floor. Take care not to damage the screen. Flat Surface Secure the uprights in place on the back of the screen. Make sure... -
Page 8: Mounting The Uprights To The Screen
PS60 - Plasma Swivel Bracket Mounting the uprights to the screen If the screen has mounting points which are recessed, it will be necessary to use some of the provided spacers, in order to attach the uprights to the screen. -
Page 9: Mounting The Screen To The Bracket
PS60 - Plasma Swivel Bracket Mounting the frame to the screen With the screen still face down, lower the bracket down on to the uprights and locate over the cross members. Tighten up the set screws on the uprights to lock in place when... -
Page 10: Screen Positioning
PS60 - Plasma Swivel Bracket Screen positioning If when the frame is placed on the back of the screen, the overlaying slots don't appear to locate with the bolts on the uprights, it may be necessary to re-position the uprights or move them left or right. -
Page 11: Fitting The Bracket To The Wall
PS60 - Plasma Swivel Bracket Fitting the Bracket to the Wall Firstly, remove the bracket from the rear of the screen. Make sure that the uprights are still left connected to the rear of the plasma screen. Bearing in mind the relative distance from the top of... -
Page 12: Fixing The Screen & Uprights To The Bracket
Usage- Take care when using the PS60 bracket. If there ever seems to be a fault of some kind with the mechanism, please consult Future Automation immediately. Do not force, or apply excessive loads to any part of the mechanism. -
Page 13: Technical Overview
PS60 - Plasma Swivel Bracket A general technical overview of the PS60 Plasma Swivel Bracket PS60 Product Dimensions 1200x80x795mm [47.2x3.1x31.3"] (W,D,H) Weight (Kg) 25Kg [55.1lb] Movement Extention From Wall 625mm [24.6"] Angle Right Angle Left Max Screen Weight 120Kg [264.6lb]... - Page 14 Future Automation Unit 2 Kimpton Enterprise Park Claggy Road Kimpton Hertfordshire SG4 8HP United Kingdom Tel: +44 (0) 1438 833 577 Fax: +44 (0) 1438 833 565 Email: info@futureautomation.co.uk www.futureautomation.co.uk...
