Audio Channels; Upgrade Firmware - TVU networks One TM1000 v2 Set Up And Operating Manual

Label TVU Transmitter IP Source Screen Description
E Sent: The tab lists the messages that were sent from this unit
Table 15

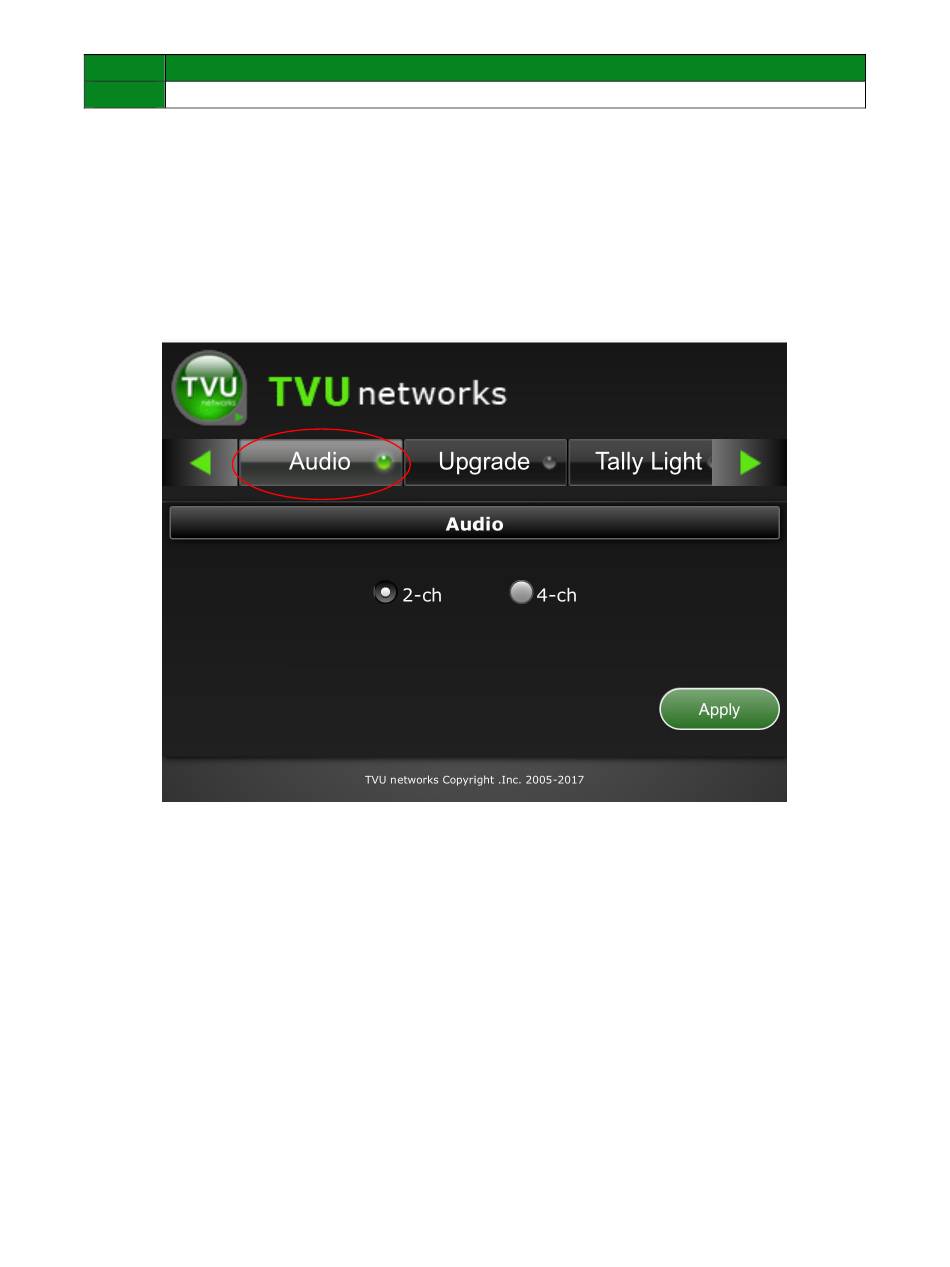

Audio Channels

The Audio tab allows uses to switch the audio channels between two and four channels.
Note: TVU One TM1000 v2 that's running Version 6.0 allows audio only transmission
through the BNC connector, and it's up to 4 channels. By default, the screen will show
black screen during the transmission.
Figure 32

Upgrade Firmware

Allow users upgrade to the new firmware version.
TVU One TM1000 v2 in V6.0 Set Up and Operating Guide
Page 34 of 49
