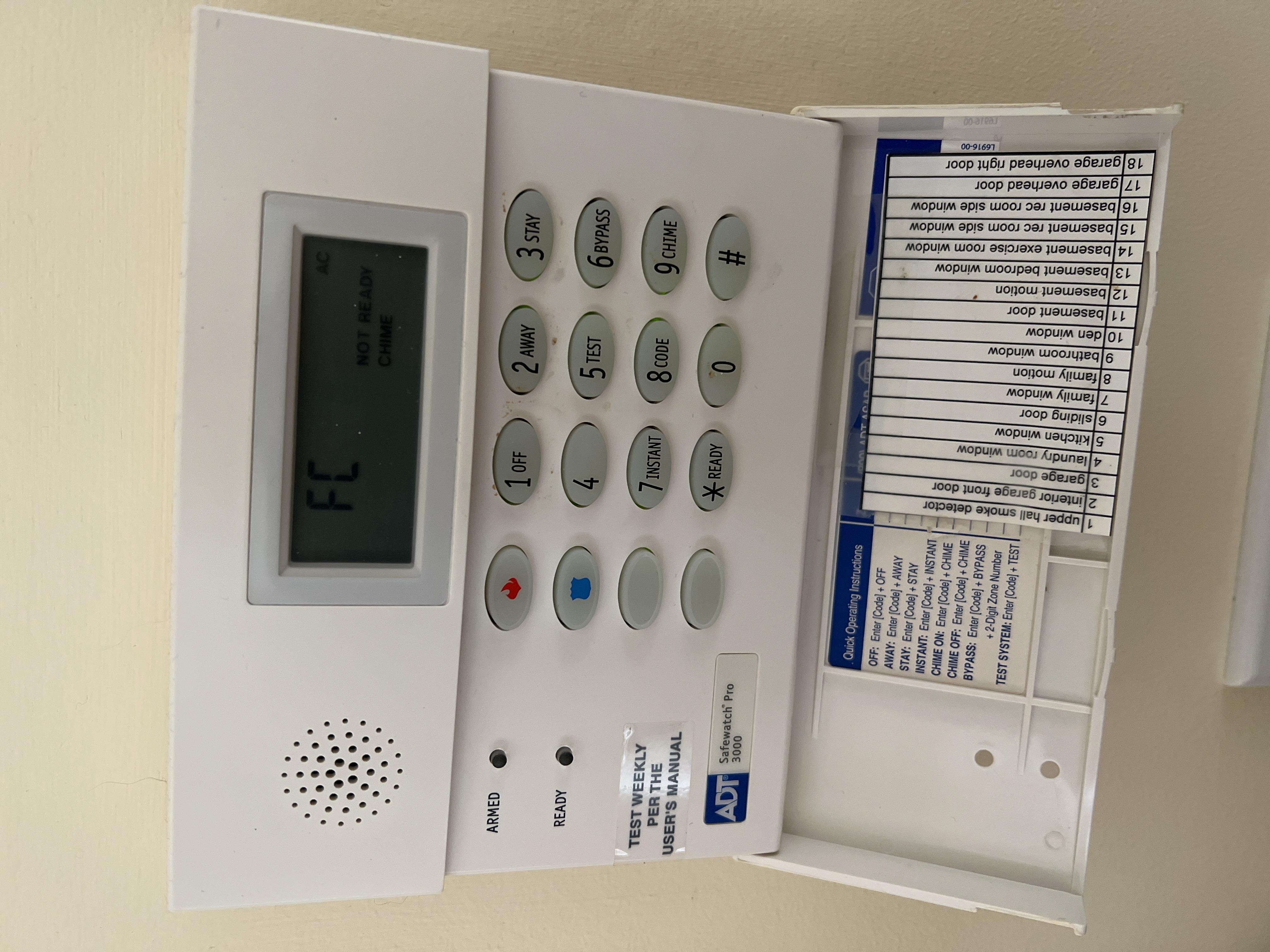

What is a check 90 trouble signal

0
1 comments:
Mr. Anderson
March 29, 2025

A CHECK 90 trouble signal on the ADT Safewatch Pro 3000 indicates that RF (radio frequency) interference may be impeding the operation of wireless sensors in the system. This may be caused by changes in the wireless environment that prevent the receiver from hearing a particular sensor. CALL FOR SERVICE if this occurs.

This answer is automatically generated

0

Related Manuals for ADT Safewatch Pro 3000

Summary of Contents for ADT Safewatch Pro 3000

  • Page 1 6DIHZDW.K3UR  Š 6H.XULW\0DQDJHU 3URJUDPPLQJ*XLGH ARMED AWAY STAY READY TEST BYPASS INSTANT CODE CHIME READY ARMED AWAY STAY READY TEST BYPASS INSTANT CODE CHIME READY K5305PRV1 5/01 Model SASW3000B...

  • Page 2: To Enter Programming Mode

    TO ENTER PROGRAMMING MODE: Local programming requires the use of a Custom English touchpad connected to the touchpad terminals on the control. ✱ 1. POWER UP, then depress [ ] and [#] both at once, within 50 seconds of powering up. 2.
  • Page 3 352*5$00,1*)250 Entry of a number other than one specified will give unpredictable results. Values shown in brackets are factory defaults. Field Function Data Entries Programmable Values SYSTEM SETUP ( ✱ 20– ✱ 29) ∗ 20 4 digits, 0–9 INSTALLER CODE [6321] ✱...
  • Page 4 For fields *43 and *45: Enter 0–9; #+11 for B; #+12 for C; #+13 for D; #+14 for E; [#+15 for F]. To clear entries from field, press * 43 * or * 45 * . Examples: For Acct. 1234, enter: 1 | 2 | 3 | 4 ;...
  • Page 5 RESTORE REPORT CODES ( ✱ 70 – ✱ 76) ✱ 70 ALARM RESTORE RPT CODE Any non-zero entry enables CID report. ✱ 71 TROUBLE RESTORE RPT CODE [10] Any non-zero entry in first digit enables CID report. ✱ 72 BYPASS RESTORE RPT CODE [00] Any non-zero entry in first digit enables CID report.
  • Page 6 PAGER OPTIONS 160-172 ✱ 160 PAGER 1 PHONE No. Enter up to 20 digits. 0–9; #+11 = ' ✱ '; #+12 = '#'; #+13 = 2-second pause. ✱ 161 PAGER 1 CHARACTERS Enter the optional prefix characters, up to 16 digits. 0–9;...
  • Page 7 ✱ 177 DEVICE DURATION 1, 2 0 = 15 seconds 6 = 2-1/2 min #+11 = 7 min [0] [0] 1 = 30 seconds 7 = 3 min #+12 = 8 min (used in *80 Menu mode-Device Actions 5/6) 2 = 45 seconds 8 = 4 min #+13 = 10 min 3 = 60 seconds...
  • Page 8 Configurable Zone Types Worksheets Configurable zone types 90 and 91 can be programmed via downloader software or from a touchpad using data fields*182-*185. Configurable zone types 92 and 93 can only be programmed using the downloader software. Programming Configurable Zone Type options involves entering 10 digits in data field *182 for zone type 90 and field *184 for zone type 91, where each digit represents the sum of the values of its various options as shown in the tables below.
  • Page 9 *56 ZONE PROGRAMMING WORKSHEET [default values shown in brackets] Zone Zn Type Part. Report Input Type Loop Rsp. Time Serial No. Location [01] [HW] [01] [HW] [10] [HW] [10] [HW] [10] [HW] [01] [HW] [01] [HW] [01] [HW] [BR] [BR] [BR] [BR] [BR]...
  • Page 10 *57 FUNCTION KEY PROGRAMMING Option Function Comments Paging Time Display Arm AWAY Arm STAY Arm NIGHT-STAY Step Arming Device Activation Device: Comm. Test Macro Key 1 Macro Key 2 Macro Key 3 Macro Key 4 Emergency Keys: Personal Emergency Silent Alarm Audible Alarm Fire Emergency Keys:...

  • Page 11: Output Definitions

    ✱ 80 OUTPUT DEFINITIONS Fill in the required data on the worksheet below and follow the programming procedure in the installation manual as you enter the data during the displays and prompts that appear in sequence. Notes: 1. For Relays, 4229 and 4204 devices are programmed in *79, *80, and *81 modes. ✱...

  • Page 12: Zone Type Definitions

    Zone Type Definitions Use this zone type if the zone is not used. Type 00 Zone Not Used • Assign to zones that are used for primary entry and exit. Type 01 • Provides entry delay if the control is armed in the Away or Stay modes. Entry/Exit Burglary #1 •...
  • Page 13 • Arms the system in Stay mode when the zone is activated. Type 20 • Pushbutton units send the user number to the central station when arming or disarming. Arm-Stay • User code for button must be assigned. • Arms the system in Away mode when the zone is activated. Type 21 •...

  • Page 14: Alpha Vocabulary List (For Entering Zone Descriptors)

    ALPHA VOCABULARY LIST (For Entering Zone Descriptors) (Word Space) • 057 DOOR – L – – R – – V – • 106 LAUNDRY • 059 DOWN RADIO VALVE – A – VAULT • 107 LEFT • 060 DOWNSTAIRS • 156 REAR •...

  • Page 15: 5800 Series Transmitter Input Loop Identification

    5800 Series Transmitter Input Loop Identification • All of the transmitters illustrated below have one or more unique factory assigned input (loop) ID codes. Each of the inputs requires its own programming zone (e.g., a 5804's four inputs require four programming zones). •...
  • Page 16 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • ADT Security Services, Inc. • One Town Center Rd. • Boca Raton, FL 33486 Copyright ©...
