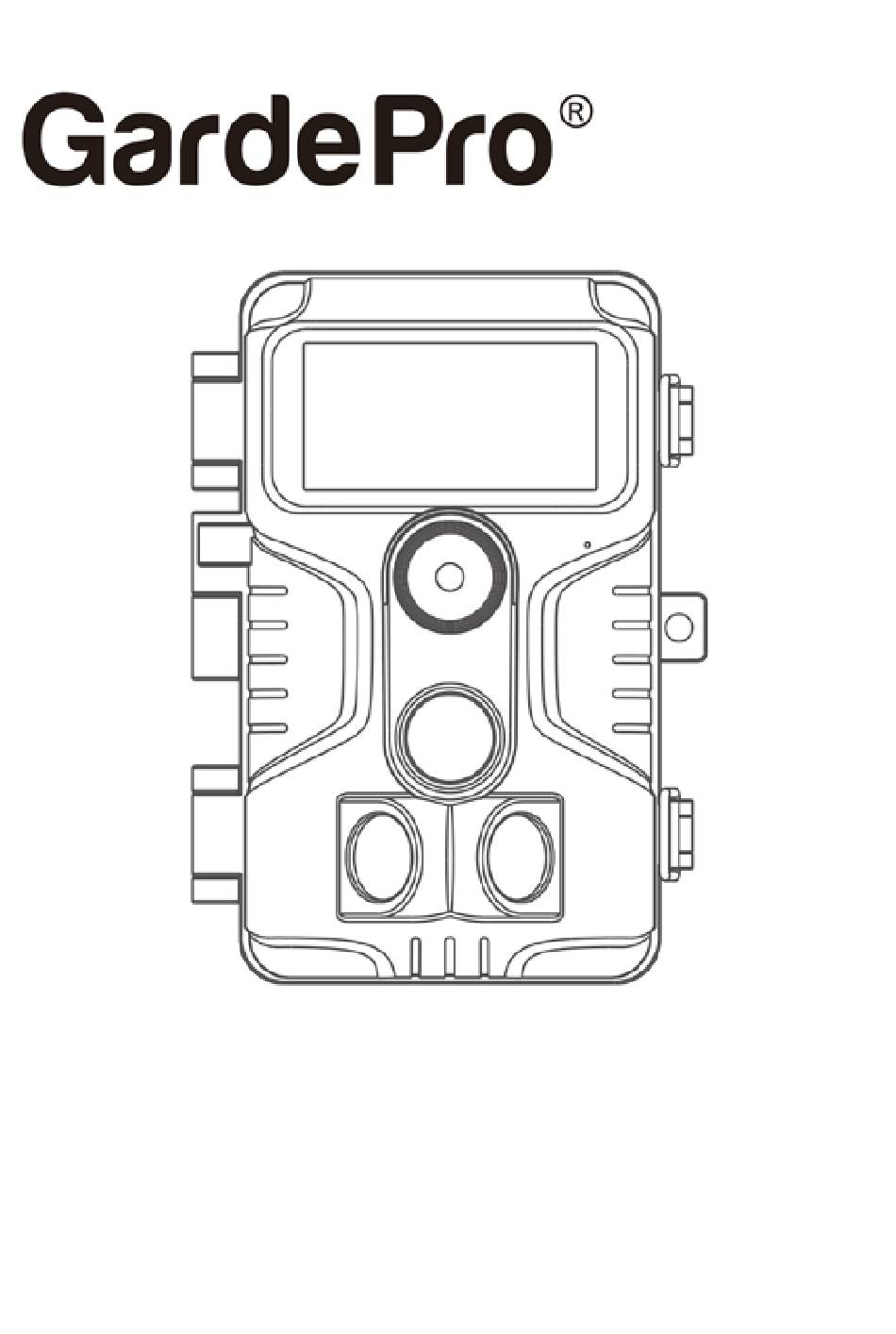

INSTRUCTION MANUAL
MODEL: A3
V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A3 and is the answer not in the manual?

Questions and answers

Robert Wenzel
January 25, 2025

Back in 3-22-23 I bought two GardePro A35 trail cameras. One works just great the other one keeps putting the date back to 5-22-23. I have tried twice to reset for factory settings,it keeps correct date for a few weeks then ,,back to 5-22-23. Please advise.

Summary of Contents for GardePro A3

  • Page 1 INSTRUCTION MANUAL MODEL: A3 V1.2...
  • Page 2 Congratulations on your purchase of one of the best trail cameras on the market! We appreciate your business and want to earn your trust. Please refer to the notes below and the instructions in this manual to ensure that you are completely satisfied with this product.
  • Page 3: Table Of Contents

    TABLE OF CONTENT 1. IN THE BOX ..............1 2. IMPORTANT NOTE ............1 3. INTRODUCTION ............1 3.1. ABOUT THE CAMERA ........1 3.2. APPLICATIONS ..........3 4. PARTS AND CONTROLS ..........3 5. INSTALLING THE BATTERIES AND SD CARD ..6 5.1.
  • Page 4: In The Box

    3. INTRODUCTION 3.1. ABOUT THE CAMERA The GardePro A3 trail camera is a new generation of digital scouting camera, it can be triggered by any movement of game in a location, detected by a highly sensitive Passive Infra-Red...
  • Page 5 20MP still photos), or 1080P 30fps video clips with audio. The Camera features the all new innovative and ultra-clear Sony imaging technology. The camera encompasses all-new software innovations, smart illumination technology, blur reduction technology, auto noise reduction and dynamic exposure technology to deliver high resolution image quality, multi-zone detection, pre-activated technology and fast boot to deliver 0.1s fast trigger speed and 0.5s recovery time.
  • Page 6: Applications

    use and resistant against rain and snow. Operation Temperature -4~+140°F. Support SD/SDHC/SDXC memory card, max capacity  128GB (user supplied). Extremely long in-field battery life up to 8 months in a  stand-by state with 8 AA 1.5V batteries (user supplied). 3.2.
  • Page 7 Light Sensor Indicator IR LEDs Microphone Lens Lock Hole Center PIR Motion Sensor Side PIR Side PIR Motion Sensor Motion Sensor Figure 1: Front View The camera provides the following connections for external devices: Mini USB port and SD card slot etc. (Figure 2). Tripod Base SD Card 1/4"...
  • Page 8 Lock Strap Hole Buckle Figure 3: Back View The camera has a 2.31-inch built-in LCD screen, which can be used for reviewing pictures or videos and menu displaying, and unique keypad design for easy program and operation, 8 AA batteries slot supported (Figure 4). Color Screen Battery...
  • Page 9: Installing The Batteries And Sd Card

    modes: OFF, ON, and SET (Figure 5). A control key interface with six keys is primarily used in SET mode to select operational functions and parameters. As shown in Figure.5, the keys can also perform a second function (shortcut operations in SET mode) in addition to their main function.
  • Page 10: Inserting The Sd Card

    Figure 6: Loading the Batteries 5.2. INSERTING THE SD CARD Insert the SD card (with the camera's power switch in the OFF position) before beginning to operate the camera. Don't insert or 一 remove the SD card when the power switch is in the ON or SET position.
  • Page 11: Using The Camera

    upwards. A "click" sound indicates that the card is installed successfully. If the wrong side of the card is facing up, you will not be able to insert it without force, there is only one correct way to insert cards. If the SD card is not installed correctly, the device will not display an SD card icon on the screen in SET mode.
  • Page 12: Off Mode

    SET mode: Power switch in the SET position (screen is on).  7.1. OFF MODE The OFF mode is the "safe" mode when any actions must be taken, e.g., replacing the SD card or batteries, or transporting the device. And of course, when you are storing or not using the camera, you will switch it to OFF.
  • Page 13: Advanced Settings

    or video resolution, interval between photos, switch the time imprint on, etc. (See more in Section 8 ADVANCED SETTINGS). Moving the power switch to the SET position will turn on the screen display, and you will see an information screen that shows how many images have been taken, the battery level, camera or video mode, etc.
  • Page 14 can change the settings to meet your requirements. Please make sure that the camera is in the SET mode. Once the camera screen is on, press MENU key to enter/exit the menu. Press the UP/DOWN key to move the marker, Press the LEFT/RIGHT key to change the setting, and press the OK key to confirm the change.
  • Page 15 Videos are in MP4 format that can be played back on most video players. Note: Night videos are limited to a seconds, maximum of 30 seconds to conserve the Video Optional Length batteries. If set video length higher than from 30 seconds, e.g.
  • Page 16 Selecting On will activate the side motion sensors. It brings faster trigger speeds and helps capture fast moving animals. When any of the two side motion sensors detects a motion event, Side the camera will be pre-activated. If the Motion animal enters the detection area of the Sensors center motion sensor within 5 seconds,...
  • Page 17 Date input format may change. Please refer to “Date Format” parameter settings accordingly. D/M/Y Select date format which will be shown Date M/D/Y Format on the screen and each capture. Y/M/D Select time format which will be shown Time on the screen and each capture. Format 12h - AM/PM Select On to assign a 4-character long in...
  • Page 18: Mounting And Positioning The Camera

    Set up a 4-digit password to protect your camera from unauthorized users. If the Password code is lost, you can contact customer support to reset the password. All files will be deleted after formatting the SD card. Highly recommend you format the SD card if it has been used Format SD Card...
  • Page 19: Sensing Angle And Distance Test

    camera. Push one end of the strap through the two brackets on the back of the camera. Thread the end of the strap through the buckle. Fasten the strap securely around the tree trunk by pulling the end of the strap firmly so there is no slack left (Figure 8).
  • Page 20: Switching On The Camera

    within the area where you expect the game or subjects to be. Try different distances and angles from the camera. If the motion indicator LED light (RED light) blinks, it  indicates that position can be sensed. If it does not blink, that position is outside of the sensing area.
  • Page 21: Review Photos Or Videos

    trigger the capture of images as programmed in the menu. Be sure you have read the descriptions of the Detection Delay, PIR Sensitivity parameters. (2) If you set the camera working mode as “Time Lapse” in the menu, once you switch to the ON mode, the camera will be ready to go into “Time Lapse”...
  • Page 22: Technical Specifications

    11. TECHNICAL SPECIFICATIONS Element Description Working Mode Motion detection or Time Lapse Max. Pixel Size 20MP Lens F=1.6, FOV=63°, Auto IR-Cut IR Flash 100ft LCD Screen 2.31" Color screen Keypad 6 Keys, 1 Power switch SD, SDHC or SDXC Regular memory card Memory (Not included), max capacity 128GB Picture Size...
  • Page 23 Camera Name 4-Character (A-Z, 0-9) Time Lapse 1 Sec. ~ 24 Hours Power Supply 8x1.5V AA Batteries (Not included) Stand-by Time 8 Months Auto Stand-by (Surveillance mode) in 5 minutes Auto Stand-by while no operation in SET mode 8V - Low Battery (Batteries die) Low Battery 9.4V - Night vision is unavailable in low voltage Alarm...
  • Page 24: Warranty

    12. WARRANTY ONE YEAR LIMITED WARRANTY Your GardePro trail camera warranty covers your trail camera for one year after the original purchase date. We warrant that your camera will be free from defects in materials and workmanship when operated in normal use and conditions.
  • Page 25: Fcc Compliance Statement

    13. FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
