JSI Flux Installation Instructions

Flux

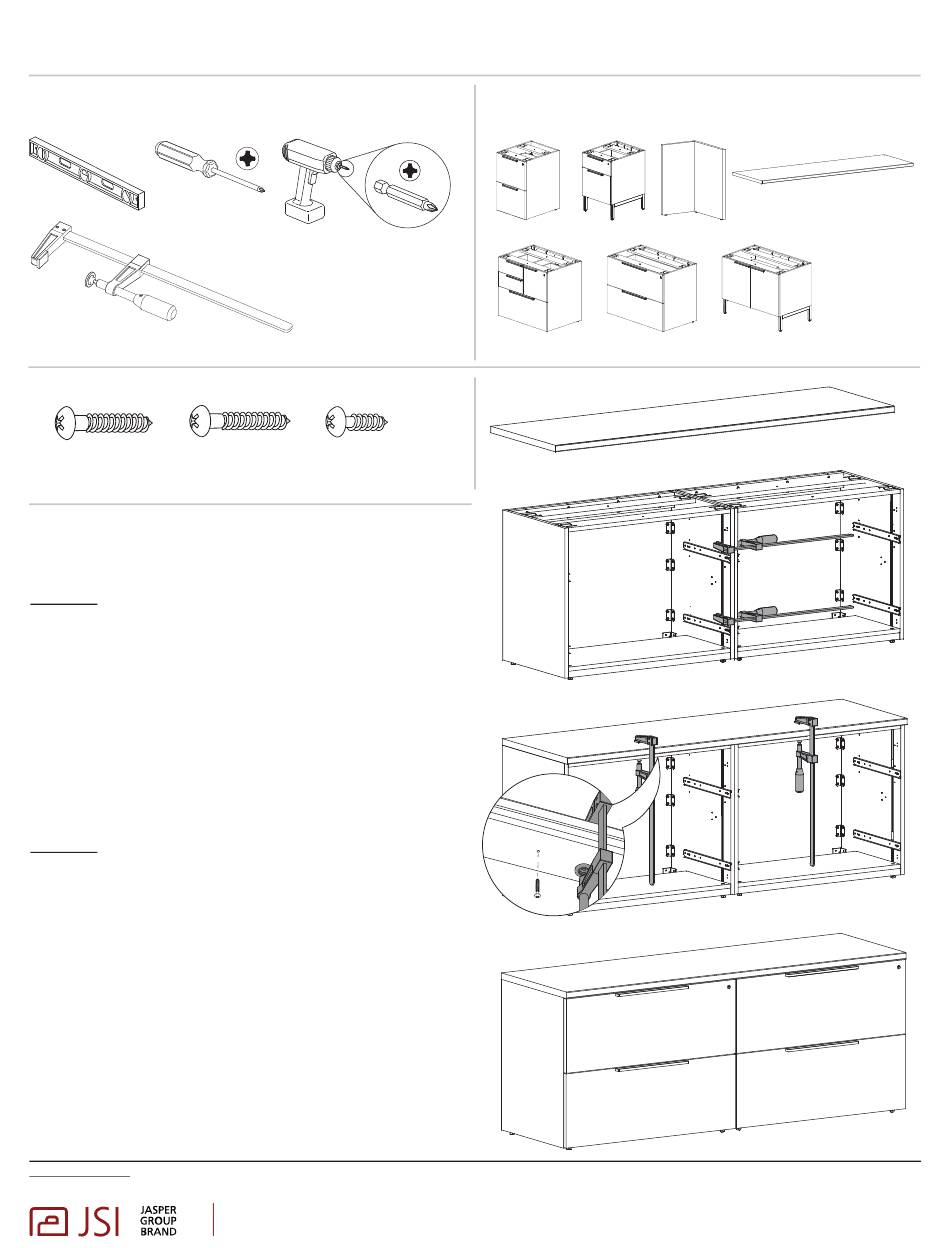

Assembly of Modular Components

Recommended Tools

Level
Screw Driver
Bar Clamp (minimum qty of 2)

Hardware Used

#8 x 1 "
1 #8 x 1
/
4
Pan Head Pan Head
Wood Screws
Wood Screws
Style A
Modular Credenza with Side by Side Units
Step 1
Preparing the Modular Components
• Unpack the modular and place in the proper order for
installation, matching up the correct credenza top width.
• Remove drawers or doors to access the top fastening strip
inside the modular units as needed.
note: keep drawers in the correct order, each drawer has
been fitted to a particular location in the modular unit.
• Level in place the modular base cabinet to each of the
other cabinets.
Step 2
Assembling the Modular Components
• Use the bar clamp to secure and ensure the units are tight.
Fasten the unit together with #8 x 1
• Repeat above step as needed until all units are attached
side to side.
• Align the credenza top on to the units. Some tolerance has
been built into top width. Even out the tolerance from side to
side. Clamp the top into place.
• Fasten the top using #8 x 1
• Re-install the drawer and doors into the units. Check to
make sure the unit is level.
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
Screw Gun Phillips Head Bit
" #8 x "
1 5
/ /
2 8
Pan Head
Wood Screws
diagram 1
"screws.
1
/
4
diagram 2
" Pan Head Wood Screws.
1
/
2
jsifurniture.com 812.482.3204
800.457.4511 812.482.1548
Modular Components
file file box file
multi file lateral file
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
modular credenza top
wing end
two door pedestal
Page 1 of 2 g
diagram 1
diagram 2
diagram 3
Form No. INST-FL017
3/25/18
