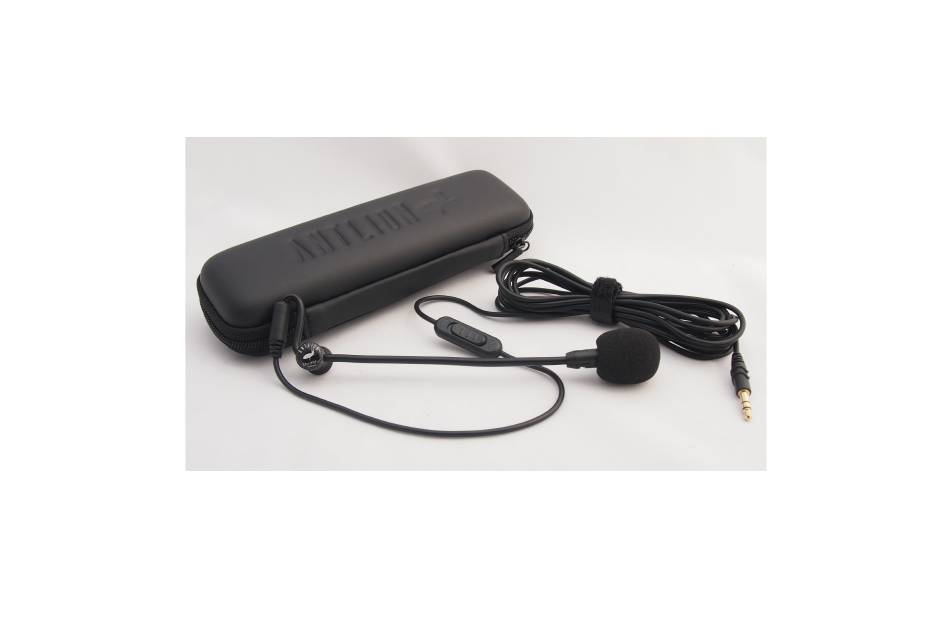

- Page 1 ModMic 4.0 Attachable Boom Microphone User Pro Tips and Specifications v1.0...
-
Page 2: Installation
Installation Find a flat spot on the headphones for the 0.5” circle of adhesive clasp. The adhesive will stick to smooth and mesh surfaces but does not stick well to rubberized surfaces. 1. Put the Headphones on to ensure the ModMic will reach the corner of your mouth from desired mounting point. -
Page 3: Need More Help
Getting the most from your ModMic 1. Make sure the mic is not directly in front of your mouth (even with the foam pop filter on the mic is sensitive to plosive blast/wind from your mouth, especially “P”’s pop in particular). ... - Page 4 Quick Start Guide Vertical Alignment Side of Phones Place on Side How to fold Boom Right Left...
-
Page 5: Specifications
Specifications Pattern Uni-directional Sensitivity -38 ± 3 dB R esponse 100 Hz–10 kHz >50+ dB I mpedance 2.2 KΩ Operating Voltage 1 to 10V Max current at 2.0V 500 μA Max input SPL 110 dB... - Page 6 ModMic Frequency Response Test (by manufacturer)
- Page 7 Pileup Communications - Box 38071 - 100 64 Stockholm - Sweden info@pileupdx.com - Twitter: @pileupdx...
