Philips Dynalite DUS360CR Installation Manual

DUS360CR
Ceiling Mount Universal Sensor
To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. Installation, programming and maintenance must be
carried out by qualified personnel. All local wiring and electrical regulations must be followed when installing device.
Overview
•
360º motion detection (PIR) – Detects presence or absence of
motion and adjusts lights accordingly.
•
Low profile recessed flush mount
•
Segmented click-up bezel – Masks unused detection areas
•
Ambient light level detection (PE) – Allows accurate lighting
control and daylight harvesting.
•
Infrared Rx sensor – device enables system control via any RC5
IR remote.
Lens Pattern
4 3
3
2
1
6m
0
1
2
3
Hardware
Light level
sensor
Masking bezel
8m
2 1 0 1 2
PIR sensor
Network sign-
on button and
IR window
Read Instructions – We recommend that you read these
instructions prior to commencement of installation.
Check Connections – Ensure that all wiring terminals are securely
connected.
Mounting Location – For indoor use only. Select sensor locations
as per user requirements. Note that the optimal locations for PIR
and PE use may be different, requiring multiple sensors in the
same area.
Data Cable – Use screened, stranded RS485 data cable with three
twisted pairs. Segregate from mains cables by at least 300mm.
Connect devices in a 'daisy chain' configuration. A data cable that
is connected to an energized device is live. Do not cut or terminate
live data cables.
Installation – Installation must be done in accordance to the local
wiring code (or wiring rules). Installation of home and building
automation and control systems shall comply with HD60364-4-41.
3 4

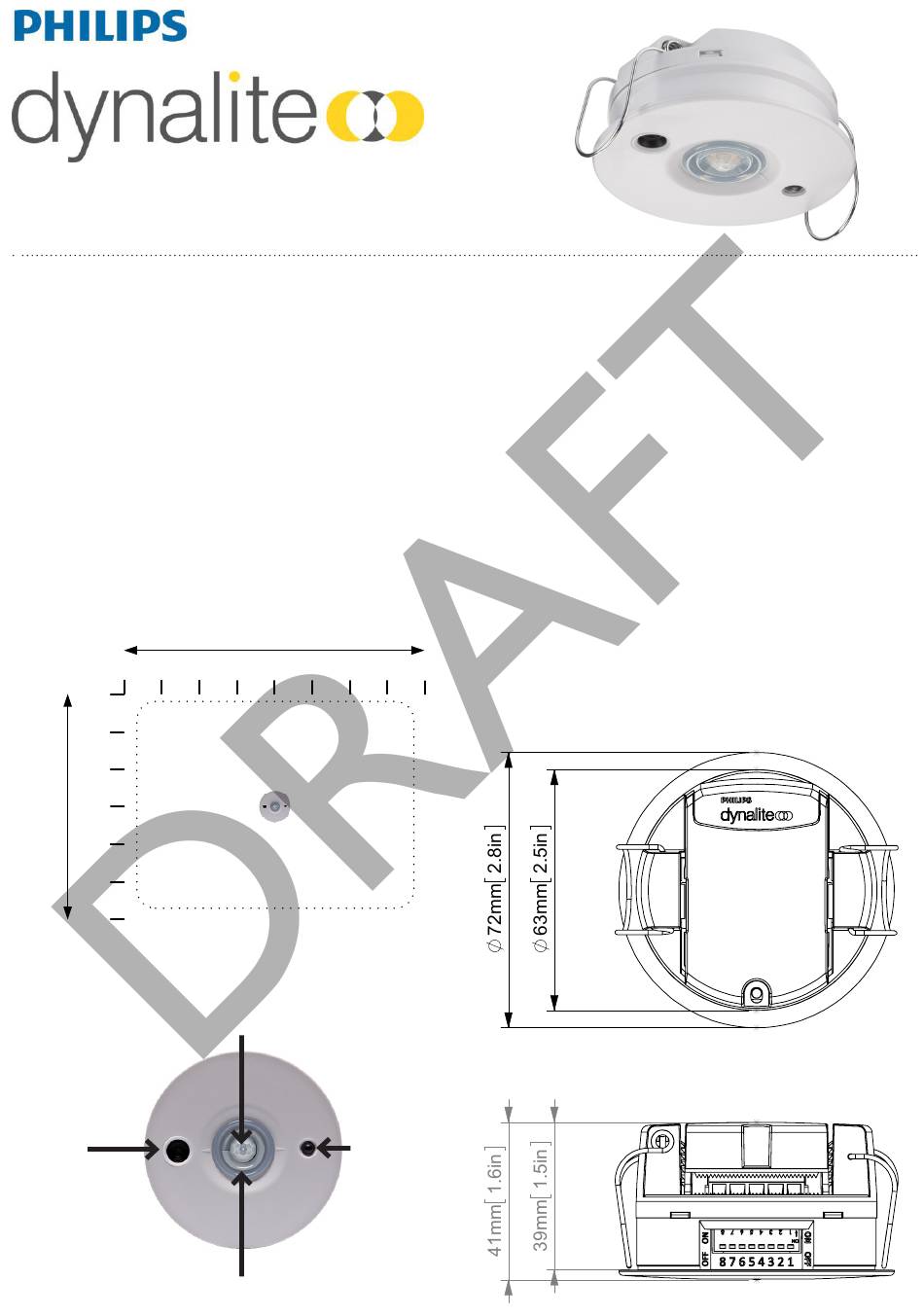

Dimensions
