Make sure to plug the Q2RF wireless repeater approximately half way between
the Q3RF, Q5RF, Q7RF and Q8RF thermostat and Its receiver unit.
Warning! The manufacturer does not assume responsibility for any direct or in-
direct damages and loss of income occurring while the appliance is being used.
4. TECHNICAL DATA
• Power consumption: 0,5 W
• Power supply voltage: 230 V AC, 50 Hz
• Output voltage: 230 V AC; 50 Hz
• Maximum output current: 16 A (3 A inductive load)
• Operating frequency: 868,35 MHz
• Weight: 150 g
• Storage temperate: -10 ºC – +40 ºC
• Protection against environmental impacts: IP30
The COMPUTHERM Q2RF signal repeater plug complies
with the requirements of the standards
RED 2014/53/EU and ROHS 2011/65/EU.
QUANTRAX Kft.
Manufacturer:
Fülemüle u. 34., Szeged, H-6726, Hungary
Phone: +36 62 424 133 • Fax: +36 62 424 672
Email: iroda@quantrax.hu
Web: www.quantrax.hu • www.computherm-hungary.hu
Country of origin: China
Copyright © 2018 Quantrax Ltd. All rights reserved.

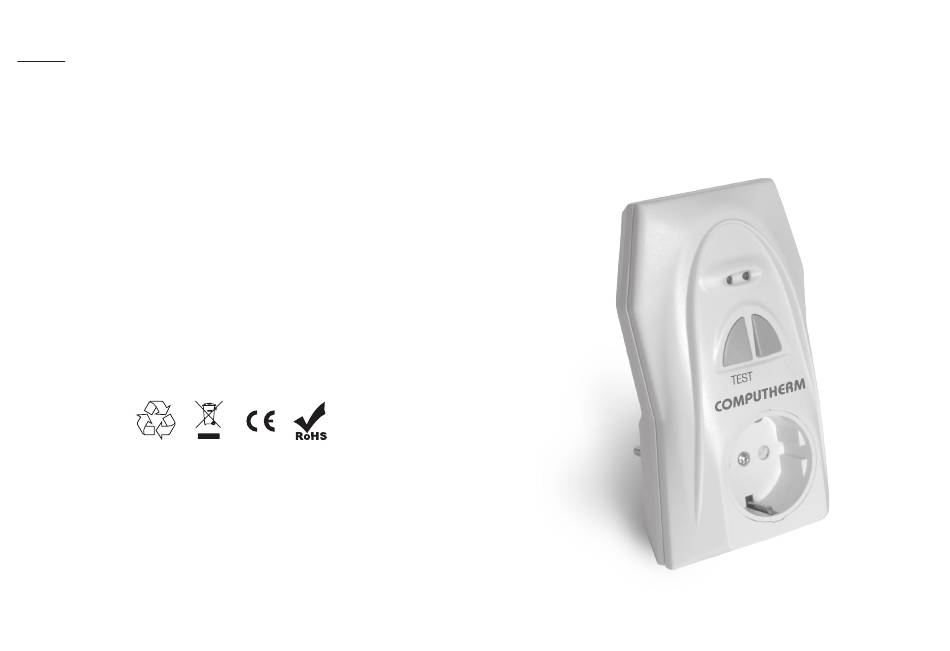

COMPUTHERM Q2RF
wireless (radio-frequency) signal repeater (range
expander) plug for enlarging the range of the
COMPUTHERM Q3RF, Q5RF, Q7RF, Q8RF
thermostats
Operating Instructions
Advertisement
Related Manuals for Computherm Q2RF
Summary of Contents for Computherm Q2RF
- Page 1 COMPUTHERM Q2RF Make sure to plug the Q2RF wireless repeater approximately half way between the Q3RF, Q5RF, Q7RF and Q8RF thermostat and Its receiver unit. wireless (radio-frequency) signal repeater (range Warning! The manufacturer does not assume responsibility for any direct or in- expander) plug for enlarging the range of the direct damages and loss of income occurring while the appliance is being used.
- Page 2 The Q2RF plug should be connected to the mains voltage (230 V, 50 Hz), meanwhile on the output of the Q2RF plug the 230 V, 50 Hz mains voltage also a. Unplug the Q2RF device, in case it was plugged in before, and wait approx- appears.
